Name: Low Fin Seamless Copper Alloy Tube C10200 B75 12.7×1.2mm Annealed Finish
Brand: TORICH INTERNATIONAL LIMITED
SKU: C10200 B75
Price: 25,002.00 USD
Availability: InStock

Home > products > Alloy Steel Pipe >

Low Fin Seamless Copper Alloy Tube C10200 B75 12.7×1.2mm Annealed Finish

alloy steel seamless tube

seamless alloy steel pipe

Place of Origin:

China

Brand Name:

Torich

Certification:

ISO 9001 ISO14001 TS16949

Model Number:

C10200 B75

Request A Quote

Product Details

Characteristic:

Low Fin Tube

Material:

C10200, C11000 Etc

Production Method:

Seamless

Package:

In Bundles Or As Per Requests

Finish:

Annealed

Length:

1-12m

Type:

Copper Low Fin Tube

MTC:

EN10204.3.1

Highlight:

alloy steel seamless tube

seamless alloy steel pipe

Payment & Shipping Terms

Minimum Order Quantity

200 pcs

Price

negotiable

Packaging Details

In plywood case, In wooden box.

Delivery Time

30-45 days after order confirmed

Payment Terms

L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability

20000 Ton per Year

Cold Drawn Alloy Steel Pipe ASTM A335 12.7 - 177.8mm OD 4 - 12.5m Length

Get Best Price

video

Cold drawn Bearings tubes 12M Seamless Alloy Steel Tube

Get Best Price

video

15CDV6 1.7734 High Strength Steel Tube Low Alloy Steel Pipe For Racing Frame

Get Best Price

video

Min Mpa Extruded Titanium Alloy Steel Pipe , Hot Rolled Steel TubingTA1 240

Get Best Price

86-574-88086983

Contact Now

Product Description

Products Description:

for Heat Exchanger Seamless Copper Low Fin Tube C10200 B75

Quick Detail:

Low-finned tubes are a reliable solution for controlling the temperature of gases and liquids, or for evaporating and condensing refrigerants. Thanks to their larger heat transfer surface area, they offer considerable potential to save in terms of materials and fill volumes.

Size:

Plain tube (mm)	Finned section dimensions (mm)				Ratio	De
D×t	Tp	dd	dr	di	η	mm
19×2	0.8	18.8	17	134	2.8	17.9
19×2	1	18.8	16.8	13.4	2.5	17.8
19×2	1.25	18.8	16.6	13	2.2	17.8
19×2	1.5	18.8	16.6	13	2	17.7
19×2	2	18.8	16.4	13	1.7	17.5
25×2.5	0.8	24.8	23	18.8	2.8	23.9
25×2.5	1	24.8	22.6	18.8	2.75	23.7
25×2.5	1.25	24.8	22.3	18	2.5	23.6
25×2.5	1.5	24.8	22.3	18	2.2	23.5
25×2.5	2	24.8	22	18	1.8	23.4
25×2.5	2.5	24.8	22	18	1.6	23.3
D------Outside diameter of plain end section Dof----Diameter of top fins Dr-----Root diameter of finned section Di-----Inside diameter of finned section T------Wall thickness of plain end section Tp-----Fin pitch De----Equivalent diameter of finned tube L------Plain tube end length

Applications: Heat Exchanger Tube

The Benefits:

1. Offers 2.5-3 times the external surface area of bare tube

2. Enhanced heat exchanger efficiency means less tube is required to accomplish the same heat transfer as a bare tube

3. Low finned tube can increase the performance of an existing exchanger without the difficult and expensive task of building new shells etc

4. Reduced space and weight can be extremely valuable in offshore production or high elevation distillation columns. Low finned technology can transform large shell and tube exchangers into compact heat exchangers

Production Steel Tube:

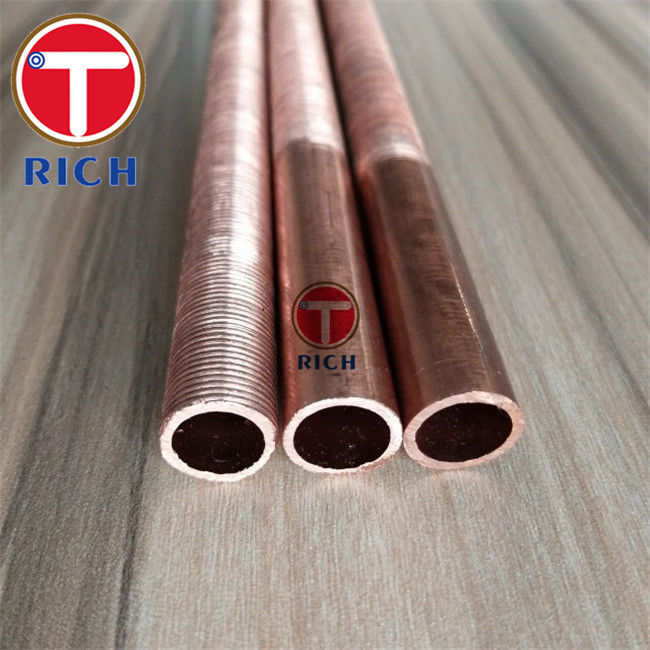

Low Fin Seamless Copper Alloy Tube C10200 B75 12.7×1.2mm Annealed Finish 1

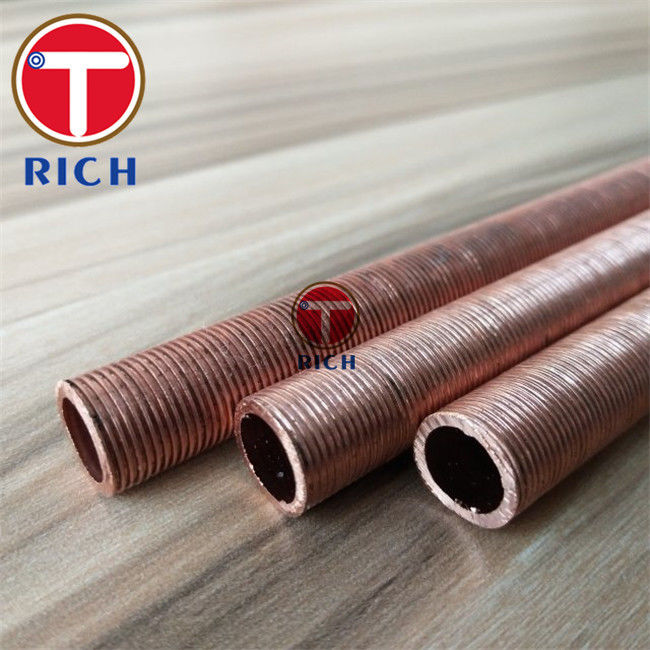

Low Fin Seamless Copper Alloy Tube C10200 B75 12.7×1.2mm Annealed Finish 2

Application:

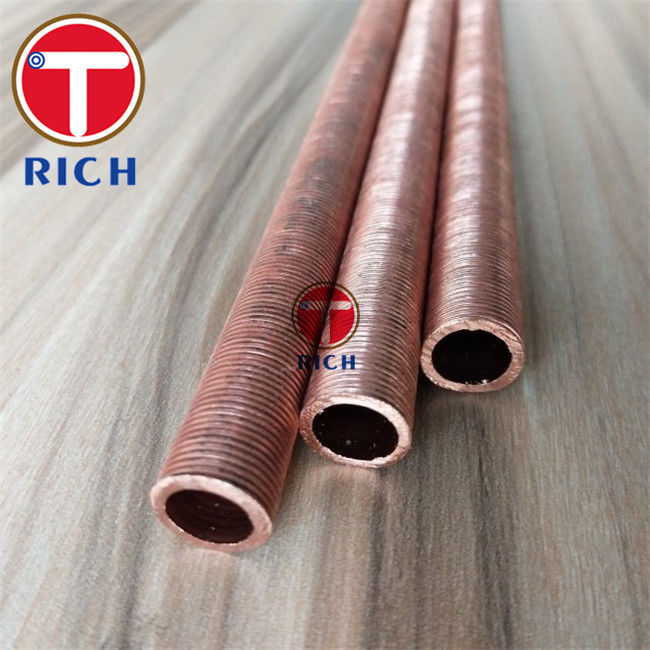

Low Fin Seamless Copper Alloy Tube C10200 B75 12.7×1.2mm Annealed Finish 3
