ISO 9001 Spiral Corrugated TA1 TA2 Titanium Alloy Tube

Executive standard: titanium national standard

Product Application :

1. Thin wall titanium welded pipes for heat exchangers, condensers and evaporators,
2. Industrial fluid titanium welded pipes, corrosion-resistant pipes
3. Support pipes for various industrial equipment and pressure vessels, are used in electric power, chemical industry, seawater utilization and marine engineering, aerospace, metallurgy, medicine, food and other industries.

Shape:
Twist, Spiral, Coil

Specification range:
Φ( 8.0-25.4)mm Χ Τ ( 0.5-2.0)mm

Material grade:

Titanium and titanium alloy tubes :

(TA1, TA2, TA3, ta8, ta8-1, ta9, ta9-1, TA10, gr.1, gr.2, gr.7, gr.12, gr.16, etc.)

Austenitic stainless steel pipe:

SUS304, SUS316L, 321, 904L, etc

Ferritic stainless steel pipe:

409,409L,439L,SUS445J2

Duplex stainless steel pipe:

2205,2507

Characteristics of high efficiency tube

1. The heat transfer area between the fluid and the wall is increased, and the total heat transfer of the pipe is increased.

2. Increase the degree of fluid turbulence

1) Improve the contact efficiency between fluid and wall

2) Destroy the development of fluid thermal boundary layer and enhance the heat transfer capacity of coffin

3) Reduce the resistance of vapor molecules to diffuse to the surface of the night film.

3. Improve water resistance

1) It can reduce the thickness of water film and increase the heat transfer area

2) At the same time, the contact time between the fluid and the wall is increased in a certain range to enhance the heat transfer.

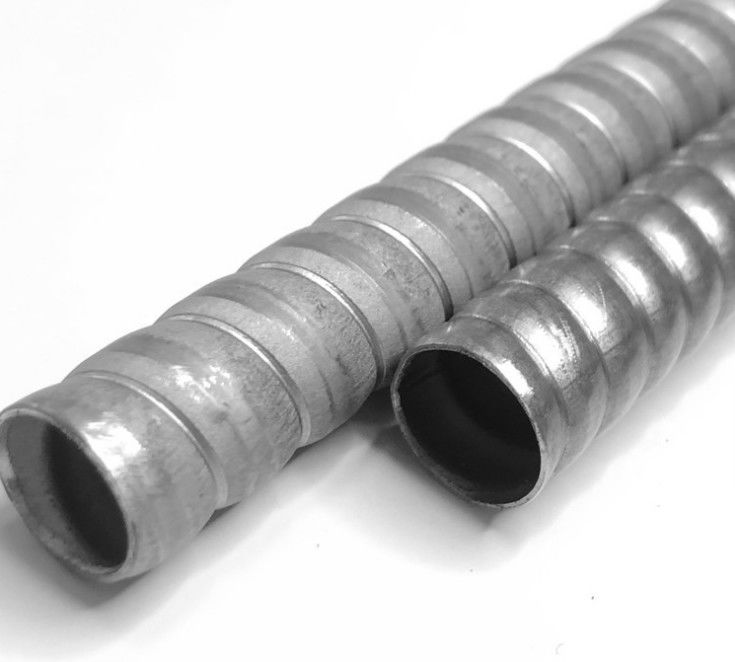

Corrugated titanium tube for radiator of TA2
