Name: DIN 17200 CK45 40Cr 20MnV6 72mm QT Chromium Plated Piston Rod
Brand: TORICH INTERNATIONAL LIMITED
SKU: DIN 17200
Price: 4,001.50 USD
Availability: InStock

Home > products > Hydraulic Cylinder Tube >

DIN 17200 CK45 40Cr 20MnV6 72mm QT Chromium Plated Piston Rod

DIN 17200 Piston Rod

20MnV6 Chromium Plated Piston Rod

QT Chromium Plated Piston Rod

Place of Origin:

ZHEJIANG, CHINA

Brand Name:

TORICH

Certification:

ISO9001, ISO14001, TS16949

Model Number:

DIN 17200

Request A Quote

Product Details

Keyword:

DIN 17200 CK45 Piston Rod

Standard:

DIN 1720

Material:

CK45, 20MnV6, 42CrMo4, 40Cr

Heat Treatment:

Annealed, QT

Surface:

Chromed, Nickeled

OD:

5mm-420mm

WT:

0.5mm - 50mm

Length:

3-9m

Usage:

Hydraulic Cylinder

Type:

Solid / Hollow

Highlight:

DIN 17200 Piston Rod

20MnV6 Chromium Plated Piston Rod

QT Chromium Plated Piston Rod

Payment & Shipping Terms

Minimum Order Quantity

1Tons

Packaging Details

Packed in wooden boxes or hexagonal bundles in seaworthy packing.

Delivery Time

30-45 work days

Payment Terms

L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability

2000Tons per Year

Seamless / Welded Honed Cylinder Tubing Hot Rolled Astm A-668 A312 Standard

Get Best Price

video

CK45 Honed Hydraulic Skived And Roller Burnished SRB Tubes For Hydraulic Equipment

Get Best Price

video

Cold Drawn Precision Seamless Steel Tube EN10305-4 For Hydraulic System

Get Best Price

video

Ss304 Seamless Cold Drawn Hydraulic Cylinder Honed Tube

Get Best Price

86-574-88086983

Contact Now

Product Description

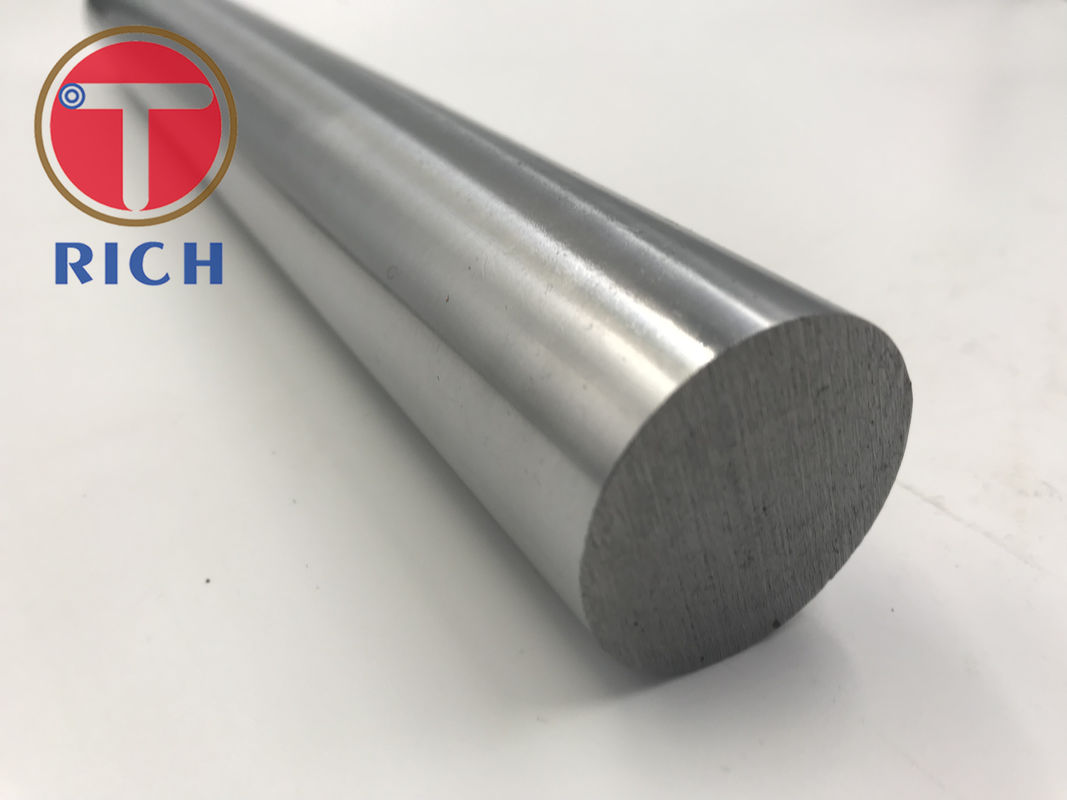

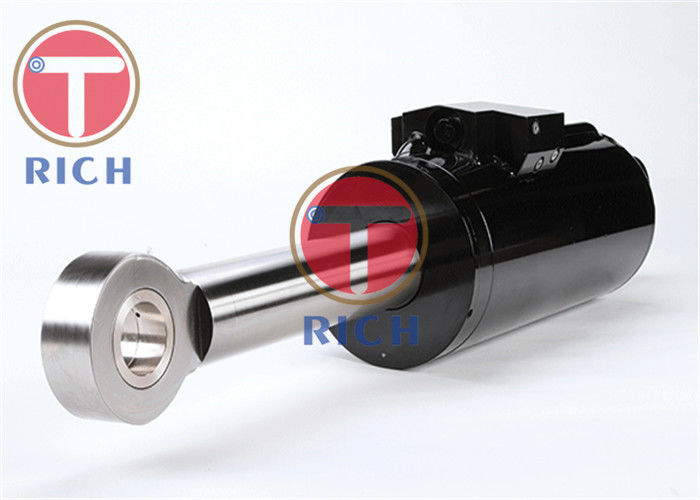

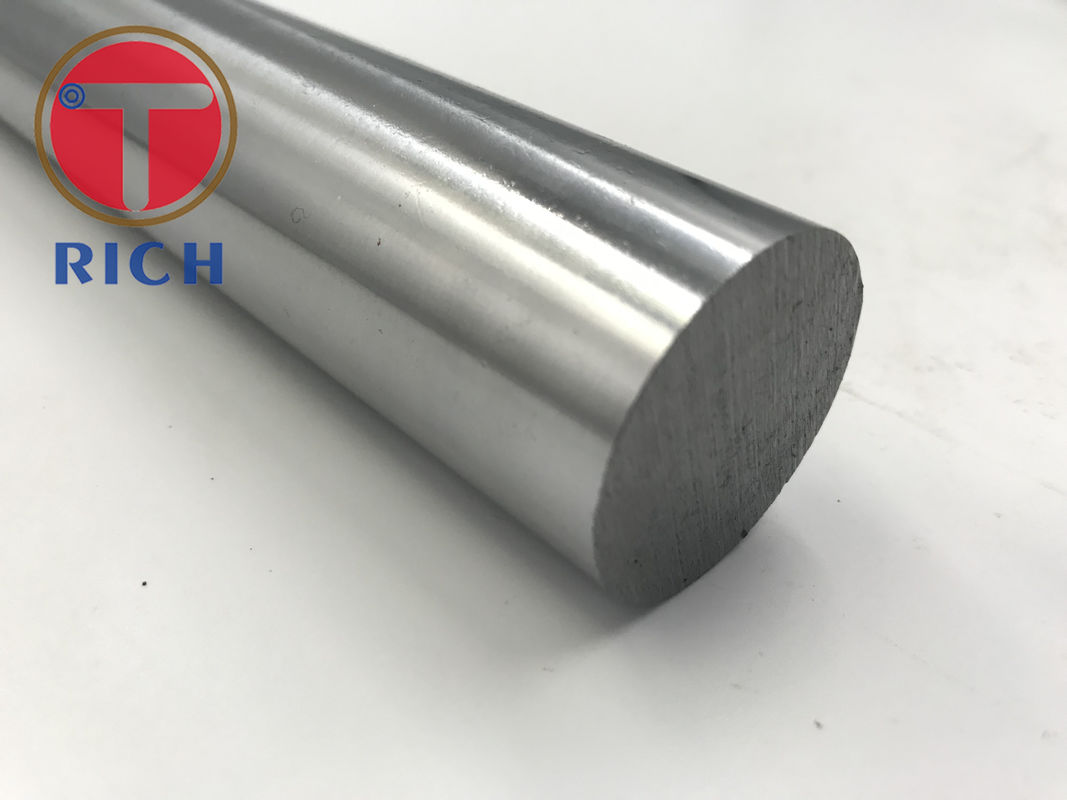

DIN 17200 CK45 40Cr 20MnV6 72mm QT Chromium Plated Piston Rod for Hydraulic Cylinder

Name: Chromium plated Piston Rod

Type: Solid / Hollow

Material: CK45, 20MnV6,42CrMo4, 40Cr

D.: 40-400mm

W.T: ≥5mm

Alloy Or Not: Non-alloy

Length: Up To 12000mm According To Customer's Requirement

Place Of Origin: Zhejiang, China (Mainland)

Surface Treatment : Chromed, Nickeled

Heat Treatment: Annealed, QT

Material: CK45;20MnV6;42CrMo4;40Cr

CHEMICAL COMPOSITION(%)

Steel Grade	C%	Mn%	Si%	S%	P%	V%	Ni%	Cr%	Mo%	Cu%
CK45	0.42-0.50	0.50-0.80	0.17-0.37	≤0.035	≤0.035	/	≤0.25	≤0.25	/	≤0.25
20MnV6	0.17-0.24	1.30-1.70	0.10-0.50	≤0.035	≤0.035	0.10-0.20	≤0.30	≤0.30	/	≤0.30
42CrMo4	0.38-0.45	0.5-0.8	0.17-0.37	≤0.035	≤0.035	0.07-0.12	≤0.03	0.90-1.20	0.15-0.25	≤0.03
40Cr	0.37-0.45	0.50-0.80	0.17-0.37	≤0.035	≤0.035	/	≤0.30	0.80-1.1	/	≤0.03

MECHANICAL PROPERTIES

Material	Tensile Strength Rm (Mpa)	Yield Strength Rel (Mpa)	Elogation A%	CHARPY	CONDITION
CK45	610	355	15	>41J	Normalized
CK45	800	540	20	>41J	Q+T
20MnV6	750	590	12	>41J	Normalized
42CrMo4	980	850	14	>47J	Q+T
40Cr	1000	800	10		Q+T

SUPPLY CONDITION	Ground and chrome plated
CHROME THICKNESS	20 to 30 micron
SURFACE ROUGHNESS	Ra≤0.2 micron and Rt≤2 micro
TOLERANCE ON DIA	ISO f7 on the diameter
OVALITY	Half of the tolerance ISO f7
STRAGHNESS	≤0.2MM/M
SURFACE HARDNEDD	850-1150 HV(vickers 100g)
COHESION	No craks,breaking or detaching after thermic shock (warming up at 3200 celsius degrees and cooling in water)
POROSITY	Test according to ISO 1456/1458 and result yaluation according to ISO 4540 rating 8-10
CORROSION RESISTANCE	Test in natural salt spray according to ASTM B117-120hours
Results evaluation	accordin to ISO4540 RATING7-10
WELDABILITY	Good
PACKING	Anti rust oil to be applied on material and each rod to be packed in paper sleeve
CERTIFICATE	All certificate related with material heat treatment and plating is required
