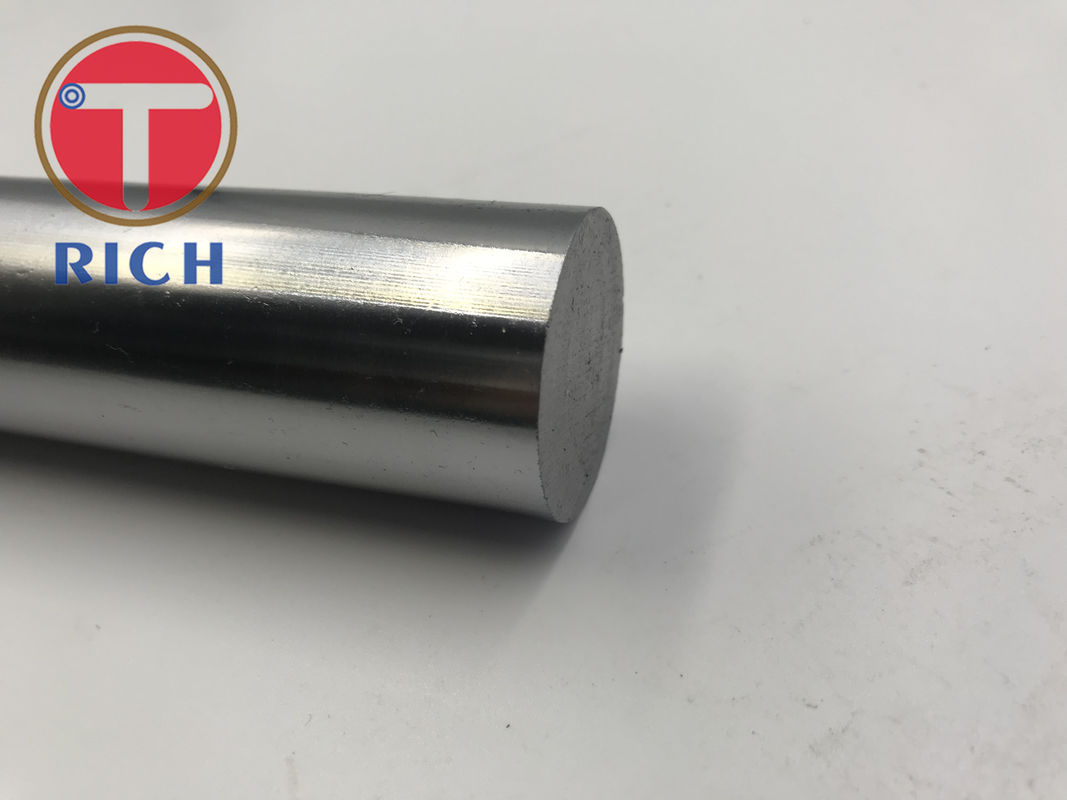

Name: CK45 1045 12mm Induction Hydraulic Cylinder Tube Chrome Plated Steel Piston Rod
Brand: TORICH INTERNATIONAL LIMITED
SKU: CK45
Price: 1,450.00 USD
Availability: InStock

Home > products > Hydraulic Cylinder Tube >

CK45 1045 12mm Induction Hydraulic Cylinder Tube Chrome Plated Steel Piston Rod

honed hydraulic cylinder tubing

hydraulic cylinder pipe

Place of Origin:

CHINA

Brand Name:

TORICH

Certification:

ISO9001 TS16949

Model Number:

CK45

Request A Quote

Product Details

Product Name:

Piston Rod

Steel Grade:

CK45 St52 20MnV6 42CrMo4 40Cr

Tolerance:

ISO F7

Mechanical Properties:

EN 10083-2

Application:

Hydraulic Cylinder

Shipping:

Ocean, Air

Delivery Terms:

FOB, CIF

Length:

Per Customer's Request

Packing:

In Bundles, In Wooden Boxes

Certificate:

ISO9001 TS16949

Highlight:

honed hydraulic cylinder tubing

hydraulic cylinder pipe

Payment & Shipping Terms

Minimum Order Quantity

5 tons

Price

900-2000USD

Packaging Details

Piston rod packing: In bundles, in wooden boxes

Delivery Time

45-60 days

Payment Terms

L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability

6000tons/year

CK45 Honed Hydraulic Skived And Roller Burnished SRB Tubes For Hydraulic Equipment

Get Best Price

video

Cold Drawn Precision Seamless Steel Tube EN10305-4 For Hydraulic System

Get Best Price

video

Ss304 Seamless Cold Drawn Hydraulic Cylinder Honed Tube

Get Best Price

video

2mm Torich Cold Drawn Bright Bar 304 321 316l 310s Stainless Steel

Get Best Price

86-574-88086983

Contact Now

Product Description

Hydraulic Cylinder CK45 1045 12mm Induction Harden Chrome Plated Steel Piston Rod

1. Details:

Standard Parameters
Steel Grade	C45E (EN 10083)
Tolerance	ISO f7
Roundness	diameter tolerance / 2
Standard Length	- for Ø ≤ 60 mm: 5600 – 6200 mm - for Ø ≥ 60 mm: 5800 – 7200mm Upon request: special lengths on all diameters
Surface Roughness	Ra max. 0.20 µm (statistic average: 0.05 – 0.15 µm)
Chrome Layer Thickness	≤ Ø20 mm: min. 15 µm ≥ Ø20 mm: min. 20 µm
Chrome Layer Hardness	min. 900 HV(0.1)
Straightness	≤ Ø16 mm: max. 0.3 mm : 1000 mm > Ø16 mm: max. 0.2 mm : 1000 mm
Mechanical Properties	according to EN 10083-2

2. Chemical Composition

Material	C%	Mn%	Si%	S%	P%	V%	Cr%
Ck45	0.42-0.50	0.50-0.80	0.04	0.035	0.035
ST52	0.22	1.6	0.55	0.035	0.04
20MnV6	0.16-0.22	1.30-1.70	0.10-0.50	0.035	0.035	0.10-0.20
42CrMo4	0.38-0.45	0.60-0.90	0.15-0.40	0.03	0.03		0.90-1.20
40Cr	0.37-0.45	0.50-0.80	0.17-0.37				0.80-1.10

3. Mechanical Properties

Material	T.S N/MM2	Y.S N/MM2	E%(MIN)	CHARPY	CONDITION
CK45	610	355	15	>41J	NORMALIZE
CK45	800	630	20	>41J	Q + T
ST52	500	355	22		NORMALIZE
20MnV6	750	590	12	>40J	NORMALIZE
42CrMo4	980	850	14	>47J	Q + T
40Cr	1000	800	10		Q + T

4. Application:

Piston rods used in hydraulic cylinder, shock absober.

5. Packing:

1. Coated by antirust oil.
2. Sheathed by paper carton tube, both end covered by roundness paper carton.
3. Cotton rope twined and bundled without interspace, to avoid any surfaced scratched.
4. Plastic film covered overall of bundled bars, to keep seal.
5. (Options) Woven tarpaulin covered overall of bundled bars, to keep packing clear.
6. Lifting belts on the middle of bundled bars.
7. (Options) Wooden box packed.
