Name: ASTM A787 Welded Steel Tube 0.71T Carbon Steel Mechanical Tubing Muffler Pipe
Brand: TORICH INTERNATIONAL LIMITED
SKU: ASTM A787
Price: 1,250.00 USD
Availability: InStock

Home > products > Welded Steel Tube >

ASTM A787 Welded Steel Tube 0.71T Carbon Steel Mechanical Tubing Muffler Pipe

welded steel pipe

electric resistance welded steel tube

Place of Origin:

Zhejiang, China

Brand Name:

TORICH

Certification:

ISO

Model Number:

ASTM A787

Request A Quote

Product Details

Product Name:

ASTM A787 Welded 0.71 WT Carbon Steel Mechanical Tubing Muffler Pipe

Keyword:

Mechanical Tubing Muffler Pipe

Shape:

Round.square.Rectangle

Usage:

Exhaust Systerm Pipe, Muffler Pipe

Technique:

ERW Welded

Package:

Wooden Cases

Application:

Automotive Exhaust Systerm

Brand:

Torich

Highlight:

welded steel pipe

electric resistance welded steel tube

Payment & Shipping Terms

Minimum Order Quantity

5 tons

Price

USD 1000-1500

Packaging Details

Exhaust Systerm Pipe, Muffler Pipe will be packed in bundle with steel strips; with seaworthy package at the end; could be done with your requirement.

Delivery Time

15-30 days

Payment Terms

L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability

500 Ton/Tons per Month

Q235JR SSAW Galvanized Carbon Steel Welded Pipe For Structural Field

Get Best Price

JIS G3469 P2S Polyethylene Coated Steel Pipe For Anti Corrosion Service

Get Best Price

video

Welded EN10305-3 10# Cold Rolled Steel Tubes For Automobile

Get Best Price

video

ASTM A513 1010 Electric Resistance Welded Carbon And Alloy Steel Mechanical Tubing For Mechanical

Get Best Price

86-574-88086983

Contact Now

Product Description

ASTM A787 Welded 0.71T Carbon Steel Mechanical Tubing Muffler Pipe

Standard Specification of ASTM A787 Tubing

Specification covers round, square, rectangular, and special shape, electric-resistance-welded mechanical tubing, either zinc-coated (galvanized) after welding or produced from aluminum-coated, zinc-coated (galvanized), zinc-iron alloy-coated (galvannealed), 55 % aluminum-zinc alloy-coated, or zinc-aluminum-magnesium alloy-coated steel sheet. Tubing for use as electrical conduit (EMT) or intermediate metallic conduit (IMC) is not covered by this specification.

Product name	ASTM A787 Welded 0.71T Carbon Steel Mechanical Tubing Muffler Pipe
Size range	OD,12.7-381mm WT,0.71-4.57mm
Standard	EN10130,ASTM A269, ASTMA554, ASTM A513, JIS G3445, ASTM A787
Material	SPCC, SPHC, Q195, Q235, Q345, STKM 11A, STKM 12B, STKM 13B, SAE 1008, SAE 1022 DX53,DX51,DC03,DC04,SA1C,SA1D,SA1E 409L,436L,441,439,304L
Our Regular sizes	28.61.5, 38.11.2, 41.21.7,44.451.7,47.6251.7,50.81.2 ,50.81.7,57.151.7,63.51.7,76.21.7,101.61.5,127*1. 5,etc
Application	Automotive Exhaust Systerm

Grade DesignationC	Composition, %
Grade DesignationC	Carbon	Manganese	Phosphorus, max	Sulfur, max
MT1010	0.05 to 0.15	0.30 to 0.60	0.035	0.035
MT1015	0.10 to 0.20	0.30 to 0.60	0.035	0.035
MTX1015	0.10 to 0.20	0.60 to 0.90	0.035	0.035
MT1020	0.15 to 0.25	0.30 to 0.60	0.035	0.035
MTX1020	0.15 to 0.25	0.70 to 1.00	0.035	0.035

Diameter Tolerances

Outside Diameter Tange, in.A	Wall thickness		Tubing with Any inside Flasg Condition	Flasg-Controlled to 0.005 in Tubing OnlyE
Outside Diameter Tange, in.A	BWGB	in.A	OutsideC,D Diameter, Plus and Minus	Inside Diameter, Plus and Minus
Tolerances, in.F
1/2 to 1 1/8, incl	22 to 16	0.028/0.065	0.00035	0.019
1 1/8 to 2, incl	22 to 14	0.028/0.083	0.0005	0.021
1 1/8 to 2, incl	13 to 10	0.095/0.134	0.005	0.027
2 to 2 1/2, incl	20 to 14	0.035/0.083	0.006	0.023
2 to 2 1/2, incl	13 to 10	0.095/0.134	0.006	0.029
2 1/2 to 3, incl	20 to 14	0.035/0.083	0.008	0.025
2 1/2 to 3, incl	13 to 10	0.095/0.134	0.008	0.031
3 to 3 1/2, incl	20 to 14	0.035/0.083	0.009	0.026
3 to 3 1/2, incl	13 to 10	0.095/0.134	0.009	0.032
3 1/2 to 4, incl	20 to 14	0.035/0.083	0.010	0.027
3 1/2 to 4, incl	13 to 10	0.095/0.134	0.010	0.033
4 to 5, incl	16 to 14	0.065/0.083	0.020	0.037
4 to 5, incl	13 to 10	0.095/0.134	0.020	0.043
5 to 6, incl	16 to 14	0.065/0.083	0.020	0.037
5 to 6, incl	13 to 10	0.095/0.134	0.020	0.043
6 to 8, incl	14 to 10	0.083/0.134	0.025	0.048

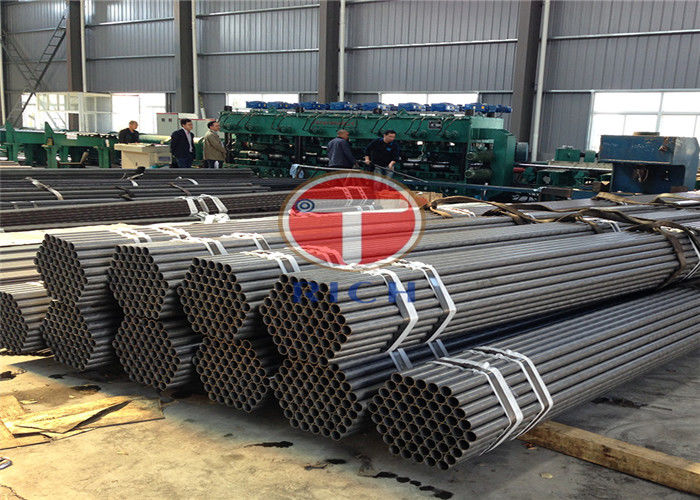

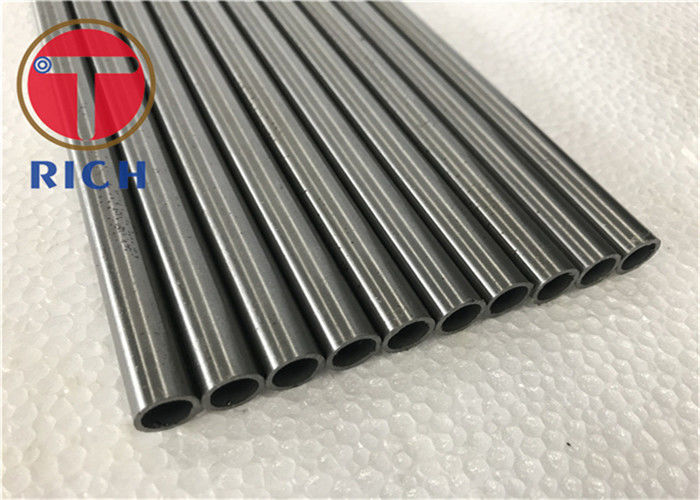

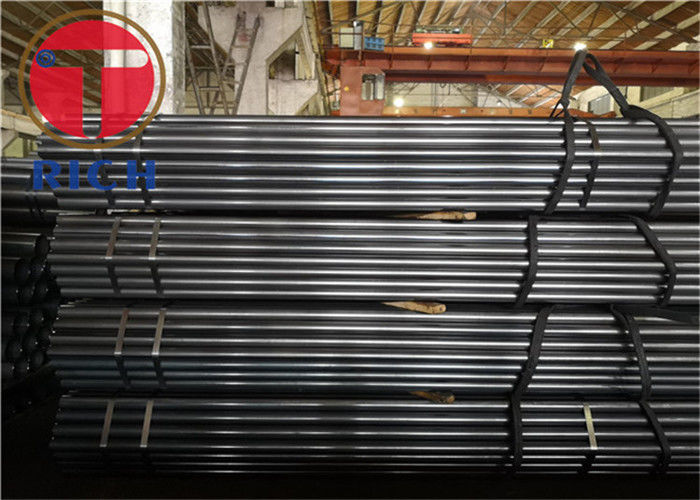

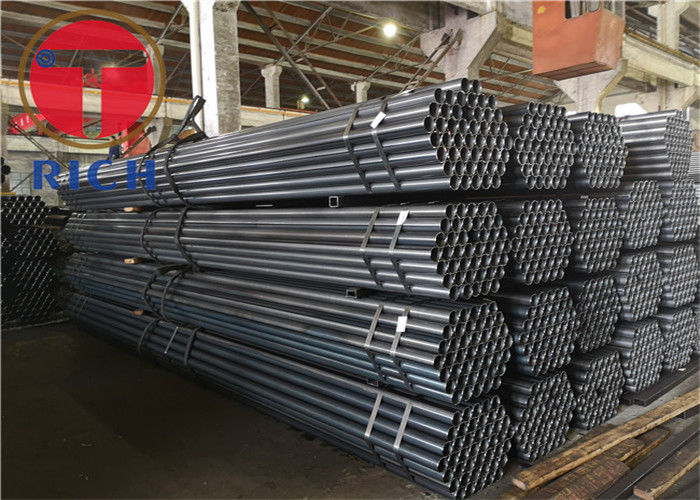

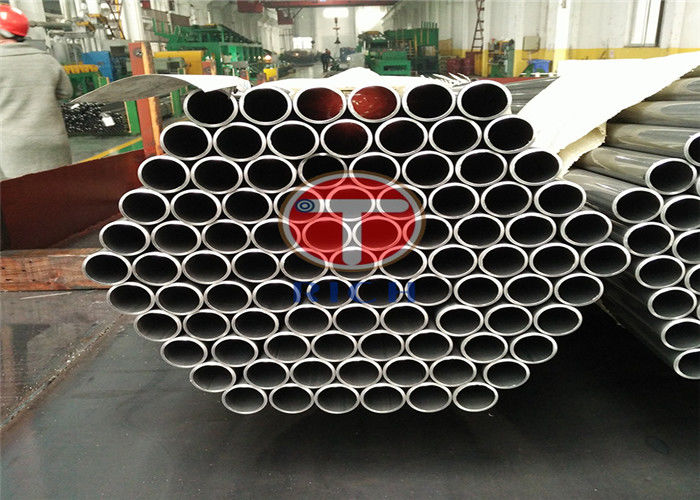

Product Pictures:

ASTM A787 Welded Steel Tube 0.71T Carbon Steel Mechanical Tubing Muffler Pipe 2

Company Introduction

TorichInternational Co.,Ltd is a professional manufacturer and exporter of steel pipes materials. It is an international marketing and sales company specialized in steel tubes.

Our main products:Seamless Steel Tubes with Carbon and Alloy Steel Grade, Welded Precision Steel Tubes,DOM Steel Tubes, Seamless & Welded Stainless Steel Tubes with Nickel and Alloy Steel Tube.

Our factory was established since 1997, with the name of Haiyan SanxinSteel Pipe Co., Ltd. The factories` technicians are of great engineering experience in steel pipe industry for more than 20 years, who are in great command of production technology for Cold Drawing and Cold Rolling, as well as heat treatment and inspection. So we have strong technician team and manufacturing capability.

ASTM A787 Welded Steel Tube 0.71T Carbon Steel Mechanical Tubing Muffler Pipe 3

ASTM A787 Welded Steel Tube 0.71T Carbon Steel Mechanical Tubing Muffler Pipe 4

ASTM A787 Welded Steel Tube 0.71T Carbon Steel Mechanical Tubing Muffler Pipe 5

ASTM A787 Welded Steel Tube 0.71T Carbon Steel Mechanical Tubing Muffler Pipe 6

1. Incoming Raw Material Inspection
2. Raw Material Segregation to avoid steel grade mix-up
3. Heating and Hammering End for Cold Drawing
4. Cold Drawing and Cold Rolling, on line inspection
5. Heat Treatment, +A, +SRA, +LC, +N, Q+T
6. Straightening-Cutting to specified length-Finished Measuring Inspection
7. Machanical Testing in own labs with Tensile Strength, Yield Strength, Elongation, Hardness, Impact, Mictrostruture etc
8. Packing and Stocking.
100% of our steel tubes are dimensionally checked
100% of our steel tubes are visually checked to assure they have a perfect surface condition and no surface defects.
100% eddy current test and ultrosonic test to eliminate longitudinal and transversal defects.

FAQ

Q: Are you trading company or manufacturer ?
A: A professional steel pipes materials inventor, manufacturer and solution provider
Q: How long is your delivery time?
A: Generally it is 7-14 days if the goods are in stock. or it is 30-60 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples of carbon seamless steel tube ? is it free or extra ?
A: Yes, we could offer the sample for free charge but need pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us.
