Round EN 10217-2 Welded Steel Tubes P195GH P235GH P265GH 16Mo3 HFW SAWH SAWL

Minimum Order Quantity : 1 tons Price : 700-900 USD perton
Packaging Details : In hexagonal bundles or wooden box Delivery Time : 4-6 weeks
Payment Terms : L/C, T/T, D/P, T/T Supply Ability : 1000 tons per month
Place of Origin: China Brand Name: Torich
Certification: ISO9001:2008, ISO14001:2008, TS16949 Model Number: EN10217-2

Detail Information

Standard: EN10217-2 Material: Fine Grain Steel
Type: SAW Welded Steel Tube Shape: Round
MTC: EN10204 3.1 B Steel Grade: P195GH P235GH P265GH 16Mo3
Surface: Black And Weld Seam Removed
High Light:

welded steel pipe

,

electric resistance welded steel tube

Product Description

EN10217-2 Welded Steel Tubes P195GH P235GH P265GH 16Mo3 HFW SAWH SAWL



EN10217-2 Welded steel tubes for pressure purposes - Technical delivery conditions -
Part 2:  Electric welded non-alloy and alloy steel tubes with specified elevated temperature properties

Material:
Fully killed steel,  Fine grain steel with a ferritic grain size.

Steel Names:
In accordance with EN10027-1 and CR10260

Manufacture:
HFW  High frequency welded
SAW  Submerged arc welded - longiditudinal seam -  SAWH
                                                - helical seam - SAWL

Welding Procedure:
Testing and inspection of the welding procedure for submerged ard welded(SAW) tubes are witnessed and approved in accordance with EN10217-1

Apperance and General:
The weld areas are free from cracks, lack of fusion and lack of penetration
The tubes are free from external surface defects that can be detected by visual examination.



Leak-tigthtness:

The Tubes shall pass a hydrostatic test or electromagnetic test for leak-tightness



Non-Destructive Testing:

The full length of the weld seam of all EW and BW tubes ahll be subjected to a Non-Destructive test for detection of longitudinal imferfections

The full length of the weld seaml of all SAW tubes shall be subjuected to a Non-Destructive test for the detection of imperfections.



Straightness:

The deviation from straightness, of any tube length L, shall not exceed 0.0015L.

Deviations from Straightness over any one meter length shall not exeed 3mm.



Preparation of ends:

Tubes shall be delivered with square cut ends. The ends shall be free from excessive burrs.



Chemical Composition:

Steel Grade

C

Si

Mn

P

S

Cr

Mo

Ni

Al

Cu

Nb

Ti

V

Cr+Cu+

Mo+Ni

Steel Name Steel Number max max max max max max max max min max max max max max
P195TR1 1.0107  0.13   0.35   0.70   0.025   0.020   0.30   0.08  0.30  -  0.30   0.010   0.04   0.02  0.70
P195TR2 1.0108 0.13 0.35 0.70 0.025 0.020 0.30 0.08 0.30 0.02 0.30 0.010 0.04 0.02 0.70
P235TR1 1.0254 0.16 0.35 1.20 0.025 0.020 0.30 0.08 0.30 - 0.30 0.010 0.04 0.02 0.70
P235TR2 1.0255 0.16 0.35 1.20 0.025 0.020 0.30 0.08 0.30 0.02 0.30 0.010 0.04 0.02 0.70
P265TR1 1.0258 0.20 0.40 1.40 0.025 0.020 0.30 0.08 0.30

-

0.30 0.010 0.04 0.02 0.70
P265TR2 1.0259 0.20 0.40 1.40 0.025 0.020 0.30 0.08 0.30 0.02 0.30 0.010 0.04 0.02 0.70

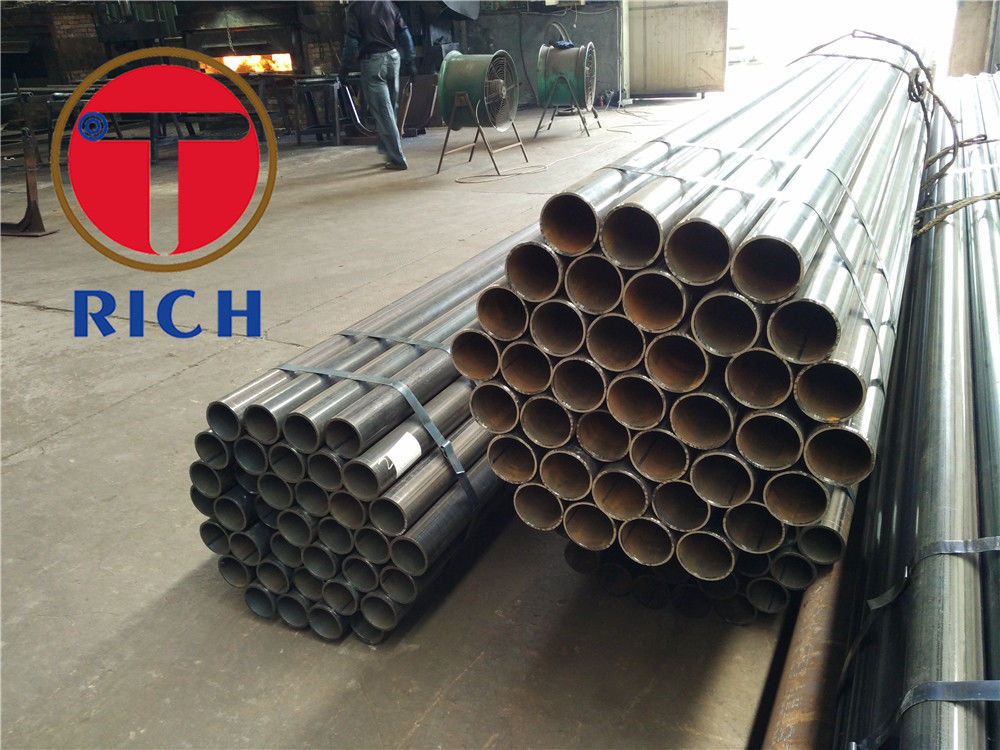

Round EN 10217-2 Welded Steel Tubes P195GH P235GH P265GH 16Mo3 HFW SAWH SAWL 0 Round EN 10217-2 Welded Steel Tubes P195GH P235GH P265GH 16Mo3 HFW SAWH SAWL 1

Round EN 10217-2 Welded Steel Tubes P195GH P235GH P265GH 16Mo3 HFW SAWH SAWL 2 Round EN 10217-2 Welded Steel Tubes P195GH P235GH P265GH 16Mo3 HFW SAWH SAWL 3


EN10217-1  Part 1:  Non-alloy steel tubes with specified room temperature properties

EN10217-2  Part 2:  Electric welded non-alloy and alloy steel tubes with specified elevated
                                     temperature properties

EN10217-3  Part 3:  Alloy fine grain steel tubes

EN10217-5  Part 4:  Electric welded non-alloy steel tubes with specified low temperature
                                     properties

EN10217-5  Part 5:  Submerged arc welded non-alloy steel tubes with specified low
                                      temperature properties

EN10217-6  Part 6:  Submerged arc welded non-alloy steel tubes with specified low
                                      temperature properties

EN10217-7  Part 7:  Stainless steel tubes.


Normative References:
EN 760,   Welding consumables - Fluxes for submerged arc welding - Classification

EN 895,   Destructive tests on welds in metallic materials - Transverse tensile test

EN 910,   Destructive tests on weld in metallic materials - Bend test

EN1321,  Destructive tests on welds in metallic materials - Macroscopic and microscopic examination
                of welds

EN10002-1,  Metallic materials - Tensile testing - Part 1:  Method of test at ambient temperature

EN10002-5,  Metallic materials - Tensile testing - Part 5:  Method of tesing at elevated temperature

EN10020,  Definitions and classification of grades of steel

EN10021,  General techical delivery requirements for steel and iron products

EN10027-1, Destructive systems of steels - Part 1:  Steel names, principle symbols.

EN10027-2, Designation systems for steels - Part 2:  Numerical systems.

EN10045-1, Metallic materials - Charpy impact test - Part 1: Test method

EN10052,    Vocabulary of heat treatment terms of ferrous products

EN10204,    Metallic products - Types of inspection documents

EN10200,    Seamless and welded steel tubes - Dimensions and masses per unit length

EN10233,    Metallic materials - Tubes - Flattening test

EN10234,    Metallic materials - Tubes - Drift expanding test

EN10236,    Metallic materials - Tubes - Rings expanding test

EN10237,    Metallic materials - Tubes - Ring tensile test

EN10246-1,  Non-Destructive Testing of steel tubes Part 1:  Automatic electromagnetic testing of
                     seamless and welded ( except submerged arc welded) ferromagnetic steel tubes for
                     verification of hydraulic leaktightness

EN10246-3,  Non-Destructive Tesing of steel tubes - Part 3:  Automatic eddy current testing of seamless
                     and welded ( except submerged arc-welded) steel tubes for detection of imperfections.

EN10246-5,  Non-Destructive Testing of steel tubes - Part 5: Automatic full peripheral magnetic
                     transducer/flux leakage testing of seamless and welded (except submerged arc-welded)
                     ferromagnetic steel tubes for the detection of longitudinal imperfections

EN10246-6,  Non-Destructive Tesing of steel tubes - Part 6: Automatic full peripheral ultrasonic testing of
                     seamless steel tubes for the detection of transverse imperfections.

EN10247-7,  Non-Destructive Testing of steel tubes - Part 7: Automatic full peripheral ultrasonic testing of
                     seamless and welded ( except submerged arc welded) steel tubes for the detection of
                     longitudinal imperfections.

EN10246-8,  Non-Destructive Testing of steel tubes - Part 8: Automatic ultrasonic testing of the weld
                     seam of electric welded tubes for the detection of longitudinal imperfections.

EN10246-9,  Non-Destructive Testing of steel tubes - Part 9: Automatic ultrasonic testing of the weld
                     seam of submerged arc-welded tubes for the detection of longitudinal and/or
                     transverse imperfections.

EN10246-10,  Non-Destructive Testing of steel tubes - Part 10: Radiographic testing of the weld
                       seam of automatic fusion arc-welded tubes for the detection of imperfections.

EN10246-14,  Non-Destructive Testing of steel tubes - Part 14: Automatic ultrasonic testing of the
                       seamless and welded (except submerged arc welded) steel tubes for detection of laminar
                       imperfections

EN10246-15,  Non-Destructive Testing of steel tubes - Part 15: Automatic ultrasonic testing of strip/plate
                       used in the manufacture of steel tubes for detection of laminar imperfections

EN10246-16,  Non-Destructive Testing of steel tubes - Part 16: Automatic ultrasonic testing of the area
                       adjacent to the weld seam of welded steel tubes for the detection of laminar imperfections

EN10246-17,  Non-Destructive Testing of steel tubes - Part 17: Automatic ultrasonic testing of tube ends
                       of seamless and welded steel tubes for the detection of laminar imperfections

EN10256,       Non-Destructive Testing of steel tubes - Qualification and competence of level 1 and level 2
                       NDT personnel
