Product Details:
Payment & Shipping Terms:
|
| Material: | TP304/304L TP316/316L | Type: | Welded Steel Tube |
|---|---|---|---|
| Standard: | ASTM A249 , EN10217-7 | Quality: | First Class |

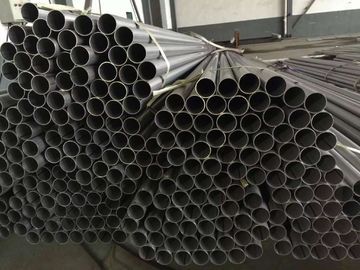

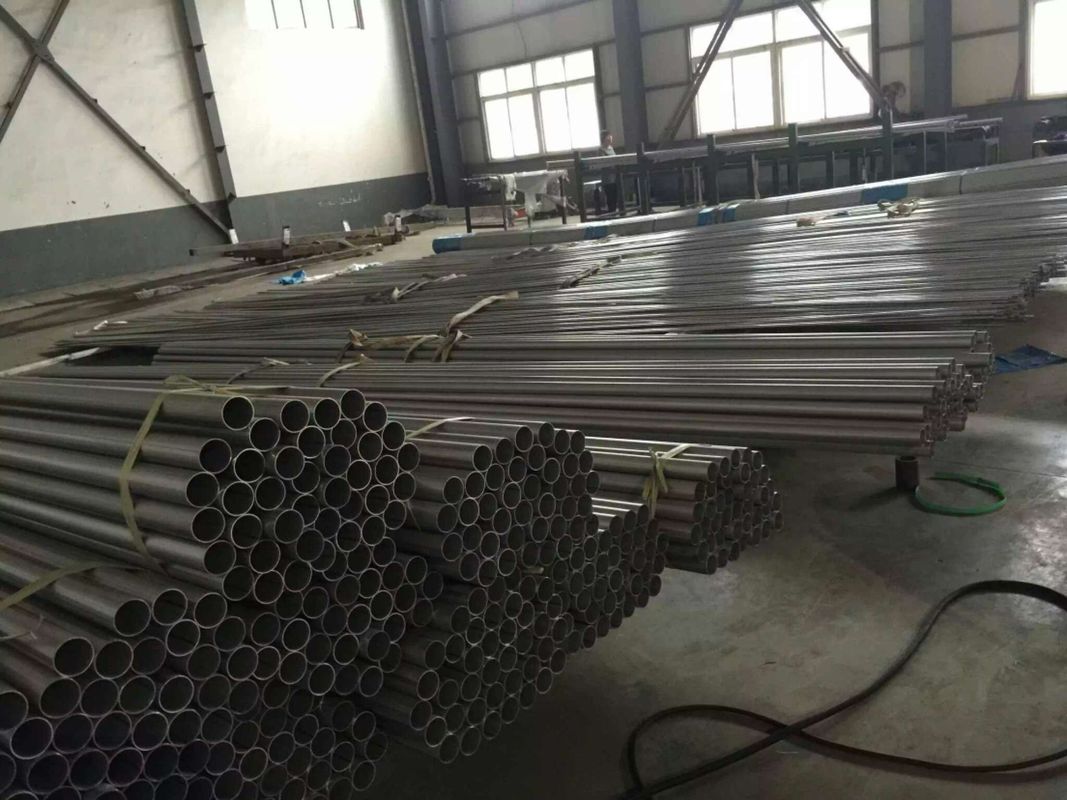

TP304 304L TP316 316L Stainless Steel Welded Pipe ASTM A249 EN10217-7
Standard:ASTM A249 EN 10217-7
Material:TP304/304L, TP316/316L other material is also avaliable.
Type one: Pickling Pipe
Size: OD:0.23''-80''(5.8-2032mm)
WT:0.01''-1.125''(0.25-28mm)
ANSI/ASME size as under,
NPS:1/8''-80'' SCH:5/5s,10/10s,20/20s,40/40s,80/80s,120/120s,160/160s acc. to ANSI B36.19/36.10
other standard of size is for ready choice.
Length: according to clients' request.
Standard:JIS DIN GB BS ASTM(ASME) etc.
Surface Finish: Annealed,Polish,Brush etc.
Application:for fluid and gas transport structure and machining.
Packing:Plywood cases or bundles.
Type two: Bright Annealed Tube
Size: OD range:6-50.8mm WT range:0.71-3.68mm Length:6-24m
Standard:ASTM A249, EN 10217-7, etc
Process Method:Welded ,bright annealed.
Surface Finish:Bright Annealed(BA),pickling,bright annealed(BA)&polish
Packing:Plywood cases or bundles.
