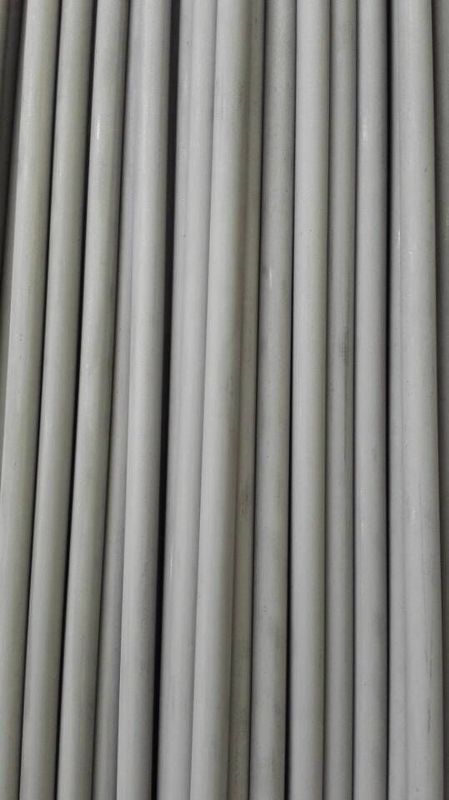

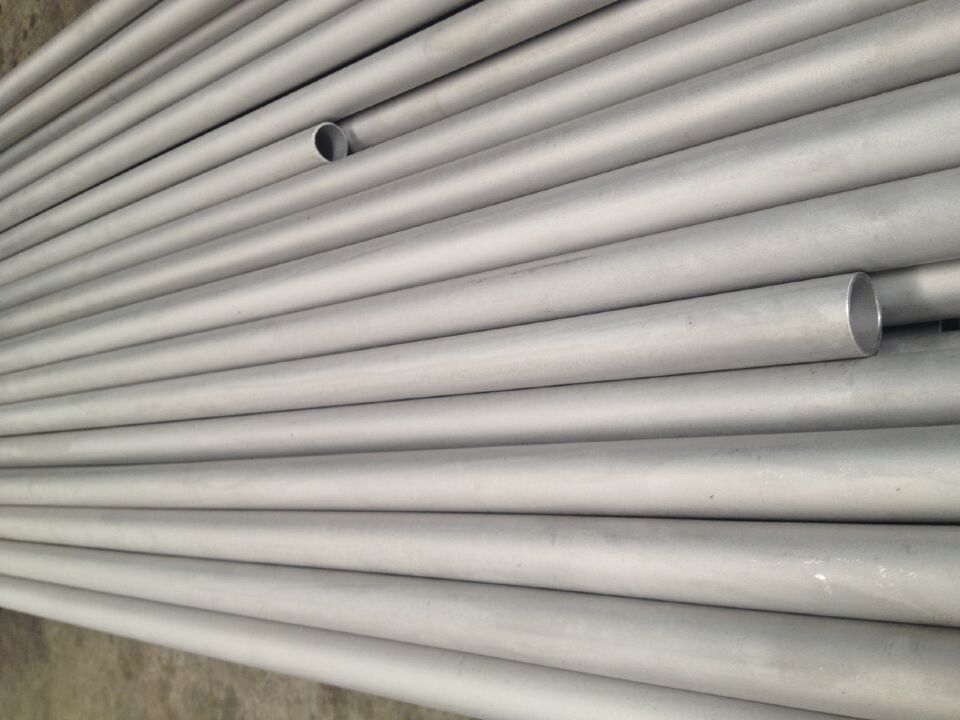

AP tubes Annealed And Pickled Thin Wall Stainless Steel Tubing
Product Details
stainless tube steel
,large diameter stainless steel tube
Annealed And Pickled Thin Wall Stainless Steel Tubing ANSI B36.19 / 36.10
Size: ANSI /ASME size is under,other standard of size is for ready choice
O.D.: 0.23''to 48''(5.8-1219mm)
W.T.: 0.04''to 2''(1.0-50.8mm)
Length: Max.18 Meter
NPS 1/8''-48'' Schedule:
5/5S,10/10S,20/20S,40/40S,80/80S,120/120S,160/160S according to ANSI B36.19/36.10
Surface finish: Annealed,Polished
Process Method: Cold Drawn/Cold Rolled
Delivery Condition: Annealed & Pickled
Chemical assurance
1. Each lot of raw materials will be tested by spectrometer before put in storage.
2. 100%PMI the mother pipe to ensure we put right material.
3. 100%PMI the finished pipe again to ensure we produced right grade
Heat Treatment Assurance
A full-automatic natural gas furnace with 24 meters in length.The real temperature tolerance could be within 10℃.
Packing:Bundles for each piece then packed in seaworthy wooden cases.
Application:Fluid and gas transport,Structure and machining.
