Honed Hydraulic Cylinder Tube EN10305-2 wtih Welded Precision Cold Drawn Steel Tube

China Honed Hydraulic Cylinder Tube EN10305-2 wtih Welded Precision Cold Drawn Steel Tube supplier
Honed Hydraulic Cylinder Tube EN10305-2 wtih Welded Precision Cold Drawn Steel Tube supplier Honed Hydraulic Cylinder Tube EN10305-2 wtih Welded Precision Cold Drawn Steel Tube supplier Honed Hydraulic Cylinder Tube EN10305-2 wtih Welded Precision Cold Drawn Steel Tube supplier Honed Hydraulic Cylinder Tube EN10305-2 wtih Welded Precision Cold Drawn Steel Tube supplier Honed Hydraulic Cylinder Tube EN10305-2 wtih Welded Precision Cold Drawn Steel Tube supplier

Large Image :  Honed Hydraulic Cylinder Tube EN10305-2 wtih Welded Precision Cold Drawn Steel Tube

Product Details:

Place of Origin: China
Brand Name: TORICH
Certification: ISO 9001-2008 ISO 14001 TS 16949 DNV TUV
Model Number: EN10305-2

Payment & Shipping Terms:

Minimum Order Quantity: 5 tons
Price: 800-950 USD/ton
Packaging Details: Antirust Oil protection, in hexagonal bundles or upon customer‘s request
Delivery Time: 5-8 weeks work days
Supply Ability: 60000 tons annual
Contact Now
Detailed Product Description
Material: Carbon Steel Steel Grade: E155 E195 E235 E275 E355
Size Range: I . D. : 30 -650mm W . T . : 1 - 50mm L : Max12000mm Shape: Round
Production Method: Drawn Over A Mandrel (DOM) Heat Treatment Method: + Cc + LCc + SR + Ad + N
Standard: EN10305-2 Note: Special Steel Grade Is Also Available, According To Customer Request
MTC: EN10204 3.1B Application: Hydraulic Cylinders
Production: ID Honed, Skiving Roller Burnish Certificate: TS16949

EN10305-2 DOM Hydraulic Cylinder Tube for Oil and Pnuematic Cylinders E155  E195  E235  E275 E355



EN10305-2 Welded Precision Cold Drawn Steel Tubes

Honing,  Skiving, Roller Burnish


Applications:

for Auto industry

for machinery use

Oil Cylinder Tube

Motorcyle shock absorber
Auto shock absorber innder cylinder

Telescopic Cylinders


Size range:
ID.: 20-650mm     W.T.:1-50mm      L:max12000mm



Steel Grade:

 E155, E195, E235, E275, E355. S45C



Steel Grade and Chemical Compositions

Steel Grade C Si Mn P S
Steel Name Steel Number max max max max max
E155 1.0033  0.11 0.35 0.70  0.025 0.025
E195 1.0034  0.15 0.35 0.70  0.025 0.025
E235 1.0308  0.17 0.35 1.20  0.025 0.025
E275 1.0225  0.21 0.35 1.40  0.025 0.025
E355 1.0580  0.22 0.35 1.60  0.025 0.025




Heat treatment method:

+Cc,  +LCc,  +SR,   +Ad,   +N


Note: Special steel grade is also available, according to customer request.

Please specify the steel grade and heat treatment mothod when sending the enquiry!



For Application of:

Oil Cylinder Steel Tubes  Steel Tubes for Oil Cylinders





Test Methods:

Tensile test



Flattening test



Drift expanding test



Dimensional inspection



Roughness measurement



Visual examincation



Not-destructive testing

a. Test for longitudinal imperfections-

-  Eddy current test - EN10246-3, level E3

-  ultrasonic testing - EN10246-7, level U3



b. Leak-tightness

-  Non-destructive testing for verification of leak-tightness shall be carried out in accordance with EN10246-1





EN10305 Consists of the following Parts under the general title " Steel tubes for precision applications - Technical delivery conditions "



Part 1:  Seamless Cold Drawn Tubes



Part 2:  Welded Cold Drawn Tubes



Part 3:  Welded Cold Sized Tubes



Part 4:  Seamless Cold Drawn Tubes for Hydraulic and Pneumatic Power Systems



Part 5:  Welded and Cold Sized Square and Rectangular Tubes



Part 6:  Welded Cold Drawn Tubes for Hydraulic and Pneumatic Power Systems



Normative references:



EN10002-1, Metallic materials - Tensile Testing - Part 1: Method of test at ambient temperature



EN10020,    Definition and classification of grades of steel



EN10021,    General technical delivery requirements for steel and iron products



EN10027-1, Designation systems for steel - Part 1 : Steel names, principal symbols



EN10027-2, Designation systems for steel - Part 2: Numerical systems



EN10052,     Vocabulary of heat treatment terms for ferrous products.



EN10204,     Metallic products - Types of inspection documents



EN10233,     Metallic materials - Tube - Flattening Test



EN10234,     Metallic materials - Tube - Drift expanding test



EN10246-1,  Non-destructive testing of steel tubes - Part 1:  Automatic electromagnetic testing of seamless and welded ( execpt submerged arc-welded) ferromagnetic steel tubes for verification of hydraulic leak-tightness



EN10246-3, Non-destructive testing of steel tubes - Part 3: Automatic eddy current testing of seamless and welded (except submerged arc-welded) steel tubes for detection of imperfections



EN10246-5, Non-destructive testing of steel tubes - Part 5: Automatic full peripheral magnetics transducer/flux leakage testing of seamless and welded ( expcept submerged arc-welded) ferromagnetic steel tubes for the detection of longitudinal imperfections



EN10246-7, Non-destructive testing of steel tubes - Qualification and competence of level 1 and 2 non-destructive testing personnel.



EN ISO377, Steel and Steel products - Location and preparetion of samples and test pieces for mechanical testing  (ISO 377:1997)



EN ISO 2566-1, Steel - Conversion of elongation values - Part 1: Carbon and Low alloy steels (EN102566-1:1984)



EN 10168, Iron and steel products - Inspection documents - List information and description



ENV10220, Seamless and welded steel tubes - Dimensions and masses per unit length



EN10266,  Steel Tubes, fittings and structrual hollow sections - Definitions and symbols for  use in product standards



EN ISO 4287,  Geometrical product specifications (GPS) - Surface Texture: Profile method - Terms, definition and surface texture parameters ( ISO 4287:1997)

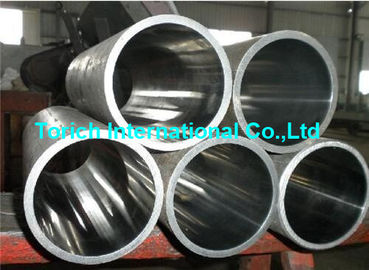

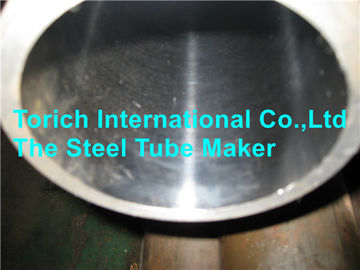

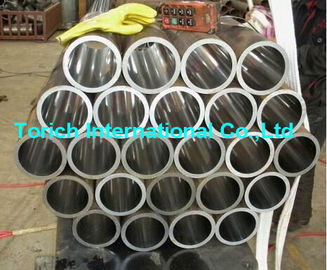

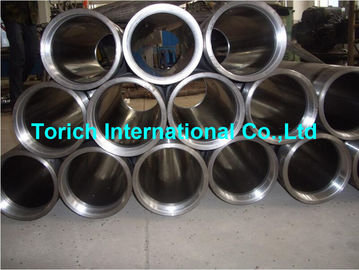

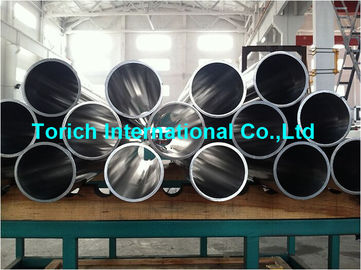

Honed Hydraulic Cylinder Tube EN10305-2 wtih Welded Precision Cold Drawn Steel Tube

Honed Hydraulic Cylinder Tube EN10305-2 wtih Welded Precision Cold Drawn Steel Tube
Honed Hydraulic Cylinder Tube EN10305-2 wtih Welded Precision Cold Drawn Steel Tube
