EN10217-3 P275NL1 P355NH P460N Welded Alloy Fine Grain Round Steel Tubes HFW SAWH SAWL

Minimum Order Quantity : 1 tons Price : 700-900 USD perton
Packaging Details : In hexagonal bundles or wooden box Delivery Time : 4-6 weeks
Payment Terms : L/C, T/T, D/P, T/T Supply Ability : 1000 tons per month
Place of Origin: China Brand Name: Torich
Certification: ISO9001:2008, ISO14001:2008, TS16949 Model Number: EN10217-3

Detail Information

Standard: EN10217-3 Material: Fine Grain Steel
Type: SAW Welded Steel Tube Shape: Round
MTC: EN10204 3.1 B Steel Grade: P275NL1 , P355NH, P460N
Surface: Black And Weld Seam Removed
High Light:

welding steel tubing

,

electric resistance welded steel tube

Product Description

EN10217-3 P275NL1 P355NH P460N Welded Alloy Fine Grain Round Steel Tubes HFW SAWH SAWL

EN10217-3 Welded steel tubes for pressure purposes - Technical delivery conditions -
Part 3:   Alloy fine grain steel tubes

Material:
Fully killed steel,  Fine grain steel with a ferritic grain size.

Steel Names:
In accordance with EN10027-1 and CR10260

Manufacture:
HFW  High frequency welded
SAW  Submerged arc welded - longiditudinal seam -  SAWH
                                                     - helical seam - SAWL

Welding Procedure:
Testing and inspection of the welding procedure for submerged ard welded(SAW) tubes are witnessed and approved in accordance with EN10217-3

Apperance and General:
The weld areas are free from cracks, lack of fusion and lack of penetration
The tubes are free from external surface defects that can be detected by visual examination.



Steel Grade

C

max

Si

max

Mn

P

max

S

max

Cr

max

Mo

max

Ni

max

Al

max

Cu

max

N

max

Nb

max

Ti

max

V

max

Nb+Ti+V

max

Steel Name Steel Number
P275NL1 1.0488  0.16  0.40

0.50to1.50

0.025 0.020 0.30 0.08 0.50

0.020

0.30 0.020 0.05 0.03 0.05  0.05
P275NL2 1.1104 0.015
P355N 1.0562  0.20  0.50 0.90to1.70 0.025

0.020

0.30 0.08 0.50 0.020 0.30 0.020 0.05 0.03 0.10  0.12
P355NH 1.0565 0.015
P460N 1.8905  0.20  0.60 1.00to1.70 0.025 0.020 0.30

0.10

0.80

0.020

0.70

0.020 0.05 0.03 0.20  0.22
P460NH 1.8935
P460NL1 1.8915
P460NL2 1.8918 0.015

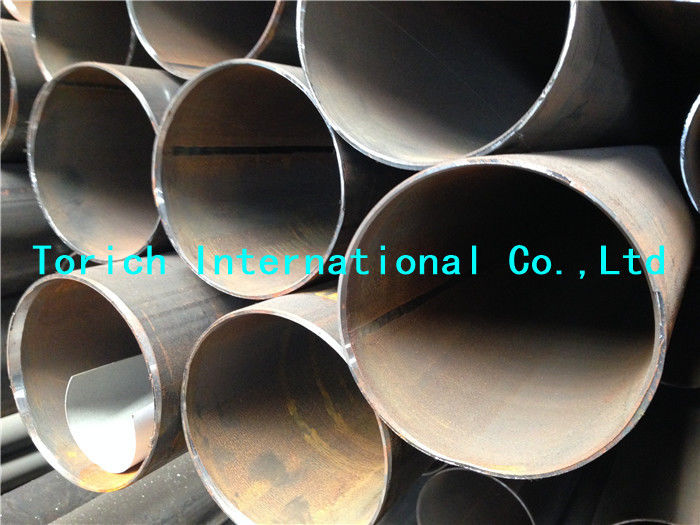

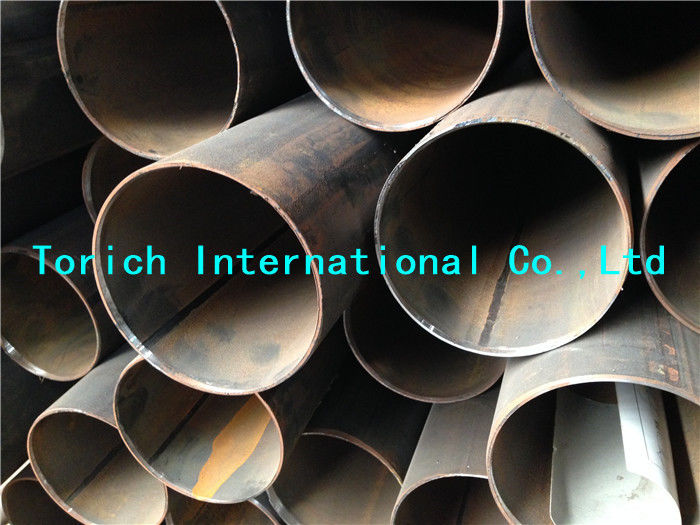

EN10217-3 P275NL1  P355NH  P460N Welded Alloy Fine Grain Round Steel Tubes HFW SAWH SAWL 0 EN10217-3 P275NL1  P355NH  P460N Welded Alloy Fine Grain Round Steel Tubes HFW SAWH SAWL 1

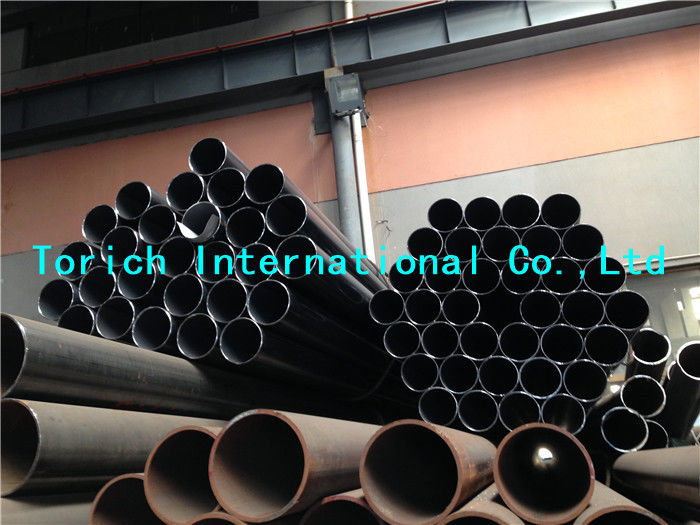

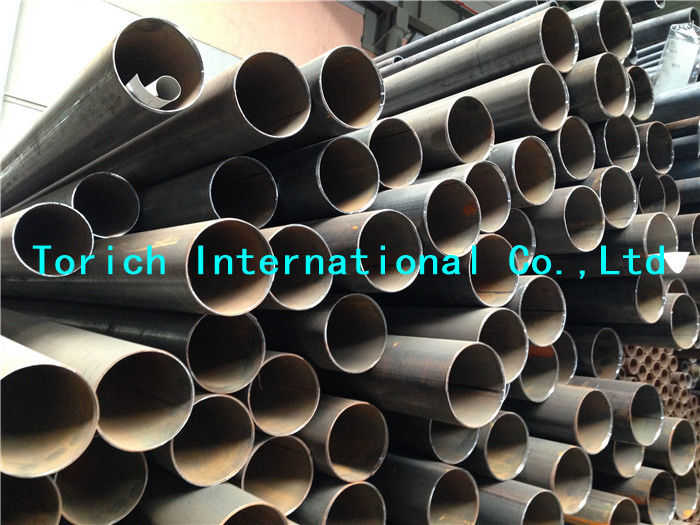

EN10217-3 P275NL1  P355NH  P460N Welded Alloy Fine Grain Round Steel Tubes HFW SAWH SAWL 2 EN10217-3 P275NL1  P355NH  P460N Welded Alloy Fine Grain Round Steel Tubes HFW SAWH SAWL 3


EN10217-1  Part 1:  Non-alloy steel tubes with specified room temperature properties

EN10217-2  Part 2:  Electric welded non-alloy and alloy steel tubes with specified elevated
                                     temperature properties

EN10217-3  Part 3:  Alloy fine grain steel tubes

EN10217-5  Part 4:  Electric welded non-alloy steel tubes with specified low temperature
                                     properties

EN10217-5  Part 5:  Submerged arc welded non-alloy steel tubes with specified low
                                      temperature properties

EN10217-6  Part 6:  Submerged arc welded non-alloy steel tubes with specified low
                                      temperature properties

EN10217-7  Part 7:  Stainless steel tubes.


Normative References:
EN 760,   Welding consumables - Fluxes for submerged arc welding - Classification

EN 895,   Destructive tests on welds in metallic materials - Transverse tensile test

EN 910,   Destructive tests on weld in metallic materials - Bend test

EN1321,  Destructive tests on welds in metallic materials - Macroscopic and microscopic examination
                of welds

EN10002-1,  Metallic materials - Tensile testing - Part 1:  Method of test at ambient temperature

EN10002-5,  Metallic materials - Tensile testing - Part 5:  Method of tesing at elevated temperature

EN10020,  Definitions and classification of grades of steel

EN10021,  General techical delivery requirements for steel and iron products

EN10027-1, Destructive systems of steels - Part 1:  Steel names, principle symbols.

EN10027-2, Designation systems for steels - Part 2:  Numerical systems.

EN10045-1, Metallic materials - Charpy impact test - Part 1: Test method

EN10052,    Vocabulary of heat treatment terms of ferrous products

EN10204,    Metallic products - Types of inspection documents

EN10200,    Seamless and welded steel tubes - Dimensions and masses per unit length

EN10233,    Metallic materials - Tubes - Flattening test

EN10234,    Metallic materials - Tubes - Drift expanding test

EN10236,    Metallic materials - Tubes - Rings expanding test

EN10237,    Metallic materials - Tubes - Ring tensile test

EN10246-1,  Non-Destructive Testing of steel tubes Part 1:  Automatic electromagnetic testing of
                     seamless and welded ( except submerged arc welded) ferromagnetic steel tubes for
                     verification of hydraulic leaktightness

EN10246-3,  Non-Destructive Tesing of steel tubes - Part 3:  Automatic eddy current testing of seamless
                     and welded ( except submerged arc-welded) steel tubes for detection of imperfections.

EN10246-5,  Non-Destructive Testing of steel tubes - Part 5: Automatic full peripheral magnetic
                     transducer/flux leakage testing of seamless and welded (except submerged arc-welded)
                     ferromagnetic steel tubes for the detection of longitudinal imperfections

EN10246-6,  Non-Destructive Tesing of steel tubes - Part 6: Automatic full peripheral ultrasonic testing of
                     seamless steel tubes for the detection of transverse imperfections.

EN10247-7,  Non-Destructive Testing of steel tubes - Part 7: Automatic full peripheral ultrasonic testing of
                     seamless and welded ( except submerged arc welded) steel tubes for the detection of
                     longitudinal imperfections.

EN10246-8,  Non-Destructive Testing of steel tubes - Part 8: Automatic ultrasonic testing of the weld
                     seam of electric welded tubes for the detection of longitudinal imperfections.

EN10246-9,  Non-Destructive Testing of steel tubes - Part 9: Automatic ultrasonic testing of the weld
                     seam of submerged arc-welded tubes for the detection of longitudinal and/or
                     transverse imperfections.

EN10246-10,  Non-Destructive Testing of steel tubes - Part 10: Radiographic testing of the weld
                       seam of automatic fusion arc-welded tubes for the detection of imperfections.

EN10246-14,  Non-Destructive Testing of steel tubes - Part 14: Automatic ultrasonic testing of the
                       seamless and welded (except submerged arc welded) steel tubes for detection of laminar
                       imperfections

EN10246-15,  Non-Destructive Testing of steel tubes - Part 15: Automatic ultrasonic testing of strip/plate
                       used in the manufacture of steel tubes for detection of laminar imperfections

EN10246-16,  Non-Destructive Testing of steel tubes - Part 16: Automatic ultrasonic testing of the area
                       adjacent to the weld seam of welded steel tubes for the detection of laminar imperfections

EN10246-17,  Non-Destructive Testing of steel tubes - Part 17: Automatic ultrasonic testing of tube ends
                       of seamless and welded steel tubes for the detection of laminar imperfections

EN10256,       Non-Destructive Testing of steel tubes - Qualification and competence of level 1 and level 2
                       NDT personnel
