DIN 2393 St37-2 Welded Steel Tube Precision Cold Drawn Welded Steel Pipe For Sleeve
Contact Person : Richard SHEN
Phone Number : +86-13736164628
WhatsApp : +8613736164628
| Minimum Order Quantity : | 1Tons | Price : | Negotiable |
|---|---|---|---|
| Packaging Details : | in bundles or in wooden box | Delivery Time : | 4-8weeks |
| Payment Terms : | L/C, D/A, D/P, T/T, Western Union, MoneyGram | Supply Ability : | 5000Tons per Year |
| Place of Origin: | China,zhejiang | Brand Name: | TORICH |
|---|---|---|---|
| Certification: | ISO9001, ISO14001, TS16949 | Model Number: | EN 10296 |
|
Detail Information |
|||
| Section Shape: | Round | Secondary Or Not: | Non-secondary |
|---|---|---|---|
| Technique: | Hot Rolled,Cold Rolled | Thickness: | 0.8 - 20 Mm |
| Application: | Fluid Pipe | Surface Treatment: | Galvanized |
| Standard: | EN | Grade Group: | 10#-45# |
| Special Pipe: | Precision Tube | Surface: | Galvanized Coated |
| High Light: | cold drawn welded steel tube,hot galvanizing welded steel tube,en 10296-1 seamless steel tube |
||
Product Description

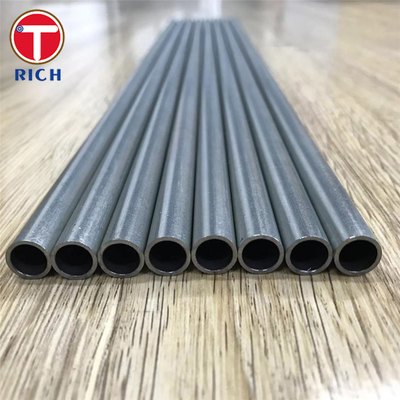

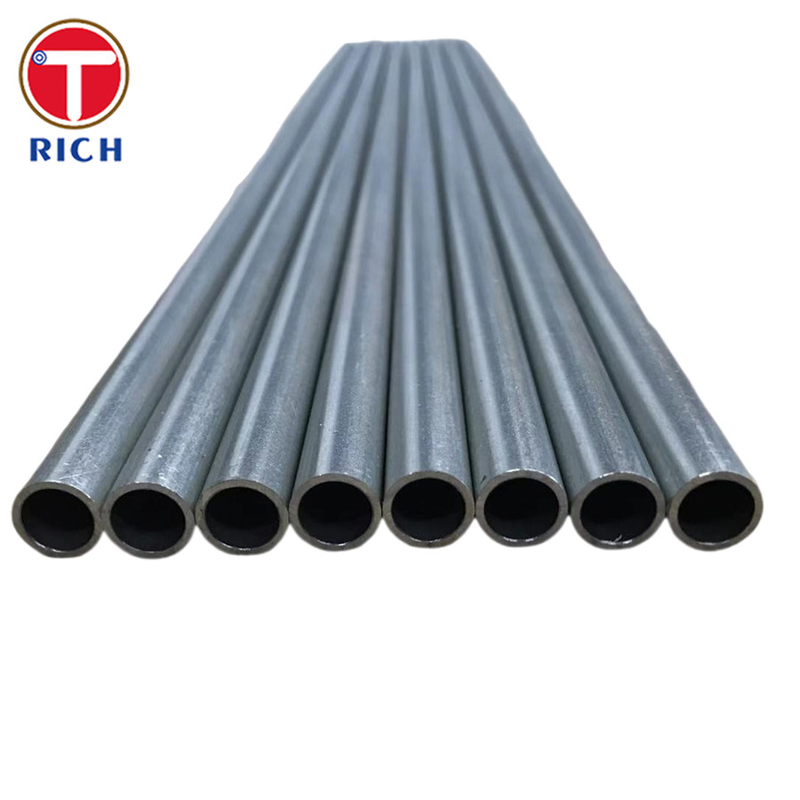

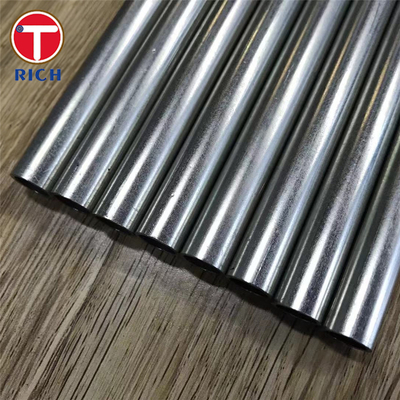

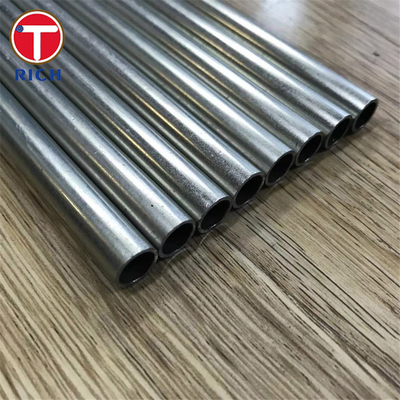

The Welded Steel Tube Cold Drawn Hot Galvanizing Steel Tube, in accordance with EN 10296-1 standard, is an essential component used for fluid pipe applications. It is manufactured using a specific material grade and adheres to strict specifications to ensure its performance and durability.
| Element | Percentage Range |
|---|---|
| Carbon (C) | 0.16 max |
| Silicon (Si) | 0.50 max |
| Manganese (Mn) | 1.50 max |
| Phosphorus (P) | 0.030 max |
| Sulfur (S) | 0.020 max |
| Chromium (Cr) | 0.30 max |
| Nickel (Ni) | 0.30 max |
| Copper (Cu) | 0.30 max |
The Welded Steel Tube Cold Drawn Hot Galvanizing Steel Tube exhibits excellent mechanical properties, making it suitable for fluid pipe applications. The following table outlines the mechanical characteristics of this steel tube.
| Property | Value |
|---|---|
| Tensile Strength | 520 - 680 MPa |
| Yield Strength | 400 MPa min |
| Elongation | 20% min |
| Hardness (HV) | 150 max |
| Impact Toughness | 27 J min |
The steel grade for this Welded Steel Tube is designated as ST52. This grade signifies its suitability for structural purposes and fluid transportation, ensuring reliability and performance under varying operating conditions.
The Welded Steel Tube Cold Drawn Hot Galvanizing Steel Tube EN 10296-1 finds extensive application in the fluid pipe industry. Its robust construction, corrosion resistance, and excellent mechanical properties make it an ideal choice for various fluid conveyance systems. Some of its common applications include:
Water Transportation: Used in water pipelines for municipal, industrial, and agricultural purposes, ensuring the efficient and safe transportation of water.
Oil and Gas Conveyance: Employed in oil and gas pipelines, the steel tube effectively transports petroleum products and natural gas.
Chemical Processing: Suitable for conveying chemicals and corrosive substances in chemical processing plants.
Industrial Machinery: Utilized in various industrial machinery and equipment where fluid transfer is necessary.
Automotive Industry: Finds application in automotive fuel lines and hydraulic systems.
Construction: Used in construction projects for fluid transportation within buildings and structures.
Haiyan Sanxin Steel Pipe Factory is a leading manufacturer of steel pipes in China. Located in a region with excellent geographical advantages, the factory is situated close to the Zhoushan Port and Ningbo Port.
Our factory covers an area of more than 25,000 square meters and has been in the steel pipe manufacturing business for 20 years. Over this period, we have accumulated a wealth of professional experience, which has helped us establish ourselves as a trusted name in the industry.
At our factory, we specialize in the production of various types of steel pipes, including stainless steel pipe, carbon steel pipe, copper pipe, steel pipe,seamless steel pipe and welded pipe. Our expertise in this field is evident from the 12 patents that we hold, which demonstrate our commitment to innovation and excellence.
A: manufacturer,also can do trading.
A: Generally speaking,it is 10-15 days if the goods are in stock,or it is 30-40 days if the goods are not in stock, it is according to quantity.
A: Yes, we could offer the sample for free charge but need pay the cost of freight.
A: Payment<=2000USD, 100% in advance. Payment>=2000USD, 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact with me.
