DOM Steel Tubes EN10305-2 for Hydraulic Cylinders , Welded Precision Cold Drawn Steel Tube

China DOM Steel Tubes EN10305-2 for Hydraulic Cylinders , Welded Precision Cold Drawn Steel Tube supplier
DOM Steel Tubes EN10305-2 for Hydraulic Cylinders , Welded Precision Cold Drawn Steel Tube supplier DOM Steel Tubes EN10305-2 for Hydraulic Cylinders , Welded Precision Cold Drawn Steel Tube supplier DOM Steel Tubes EN10305-2 for Hydraulic Cylinders , Welded Precision Cold Drawn Steel Tube supplier DOM Steel Tubes EN10305-2 for Hydraulic Cylinders , Welded Precision Cold Drawn Steel Tube supplier

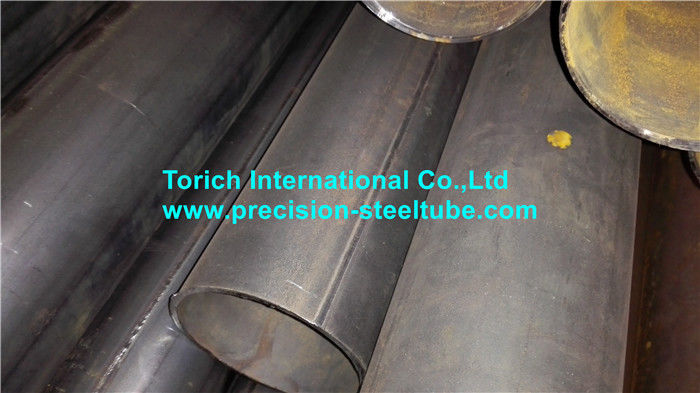

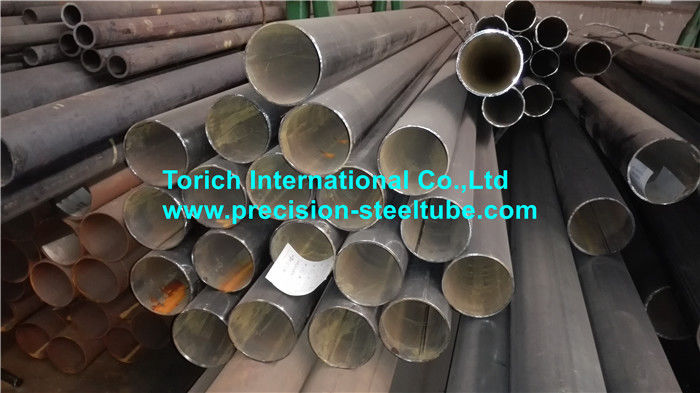

Large Image :  DOM Steel Tubes EN10305-2 for Hydraulic Cylinders , Welded Precision Cold Drawn Steel Tube

Product Details:

Place of Origin: China
Brand Name: TORICH
Certification: ISO 9001 TS16949 TUV DNV
Model Number: EN10305-2

Payment & Shipping Terms:

Minimum Order Quantity: 5tons
Price: 600-1200 USD/ton
Packaging Details: oil antirust In hexagonal bundles or carton boxes or per request
Delivery Time: 5--8weeks work days
Supply Ability: 60000tons per year
Contact Now
Detailed Product Description
Material: Carbon Steel And Per Request Steel Grade: E155 E195 E235 E275 E355
Size Range: O.D.:6-350mm W.T.:1-35mm L:max12000mm Applications: For Auto Industry/for Machinery Use/Oil Cylinder Tube/Motorcycle Shock Absorber Auto Shock Absorber Inner Cylinder/Telescopic Cylinders/Jack Lifting Systems
Shape: Round Standard: EN10305-2
Production Method: Drawn Over A Mandrel (DOM) Characteristic: Precision

EN10305-2 Welded Precision Cold Drawn Steel Tubes


Applications:

  • Auto industry
  • Machinery Use
  • Oil Cylinder Tube
  • Motorcycle shock absorber
    Auto Shock Absorber Inner Cylinder
  • Telescopic Cylinders
  • Jack Lifting Systems

Description:

ERW+ DOM

The tubes are manufactured from electric welded pre-tubes by cold drawing or other suitable processes.

The tubes not include welds used for joining lengths of flat rolled strips prior to forming the pre-tube



Description:

Mechanical tubing made from hot or cold-rolled steel.

Covers electric-resistance-welded low carbon steel tubing for use as mechanical tubing


Size range: O.D.:6-350mm     W.T.:1-35mm      L:max12000mm



Steel Grade and Chemical Compositions

Steel Grade C Si Mn P S
Steel Name Steel Number max max max max max
E155 1.0033  0.11 0.35 0.70  0.025 0.025
E195 1.0034  0.15 0.35 0.70  0.025 0.025
E235 1.0308  0.17 0.35 1.20  0.025 0.025
E275 1.0225  0.21 0.35 1.40  0.025 0.025
E355 1.0580  0.22 0.35 1.60  0.025 0.025



                                       Mechanical properties at room temperature
Steel Grade Minimum values for the delivery conditiona b
Steel Name (+Cc) (+LCc) (+SR) (+Ad) (+N)
Rm Mpa A % Rm Mpa A % Rm Mpa ReH Mpa A % Rm Mpa A % Rm Mpa ReHe Mpa A %
E155 1.0033  400 6 350 10 350 245 18 260 28 270-410 155 28
E195 1.0034  420 6 370 10 370 260 18 290 28 300-440 195 28
E235 1.0308  490 6 440 10 440 325 14 315 25 340-480 235 25
E275 1.0225  560 5 510 8 510 375 12 390 21 410-550 275 21
E355 1.0580  640 4 590 6 590 435 10 450 22 490-630 355 22


Note: Special steel grade is also available, according to customer request.





Test Methods:

Tensile test



Flattening test



Drift expanding test



Dimensional inspection



Roughness measurement



Visual examination



Not-destructive testing

a. Test for longitudinal imperfections-

-  Eddy current test - EN10246-3, level E3

-  ultrasonic testing - EN10246-7, level U3



b. Leak-tightness

-  Non-destructive testing for verification of leak-tightness shall be carried out in accordance with EN10246-1

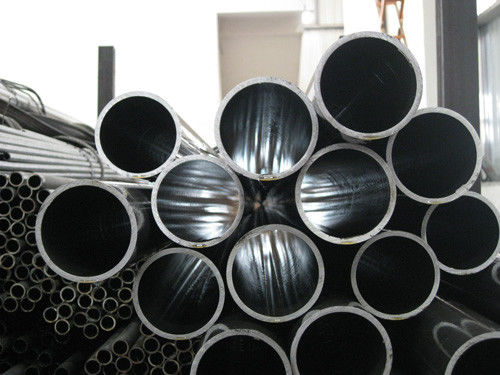

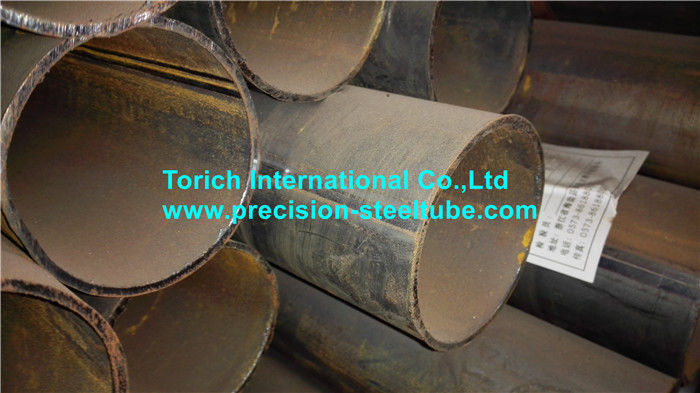

DOM Steel Tubes EN10305-2 for Hydraulic Cylinders , Welded Precision Cold Drawn Steel Tube   DOM Steel Tubes EN10305-2 for Hydraulic Cylinders , Welded Precision Cold Drawn Steel Tube



For Application of:

Hydraulic Cylinder Steel Tubes steel tubes for hydraulic cylinders




EN10305 Consists of the following Parts under the general title " Steel tubes for precision applications - Technical delivery conditions "



Part 1:  Seamless Cold Drawn Tubes



Part 2:  Welded Cold Drawn Tubes



Part 3:  Welded Cold Sized Tubes



Part 4:  Seamless Cold Drawn Tubes for Hydraulic and Pneumatic Power Systems



Part 5:  Welded and Cold Sized Square and Rectangular Tubes



Part 6:  Welded Cold Drawn Tubes for Hydraulic and Pneumatic Power Systems
