GB/T 8162 42CrMo Alloy Steel Tube Cold Drawn Carbon Steel Alloy Steel Pipr For Mechanical
Contact Person : Richard SHEN
Phone Number : +86-13736164628
WhatsApp : +8613736164628
| Minimum Order Quantity : | 0.5 Ton | Price : | USD 40000-50000 Per Ton |
|---|---|---|---|
| Packaging Details : | In bundles | Delivery Time : | 4-6 Weeks |
| Payment Terms : | L/C, D/A, D/P, T/T, Western Union, MoneyGram | Supply Ability : | 500 Tons Per Month |
| Place of Origin: | Zhejiang China | Brand Name: | TORICH |
|---|---|---|---|
| Certification: | ISO 9001 | Model Number: | ASME SB466 |
|
Detail Information |
|||
| Grade: | NO6600 | Application: | Engine And Airframe Components |
|---|---|---|---|
| Advantage: | Excellent Resistance | British Standard: | BS 3075 (NA14) |
| High Light: | UNS N06600 Capillary Tube,Seamless INCONEL 600 Tube,Thin Wall 0.1mm INCONEL 600 Tube |
||
Product Description

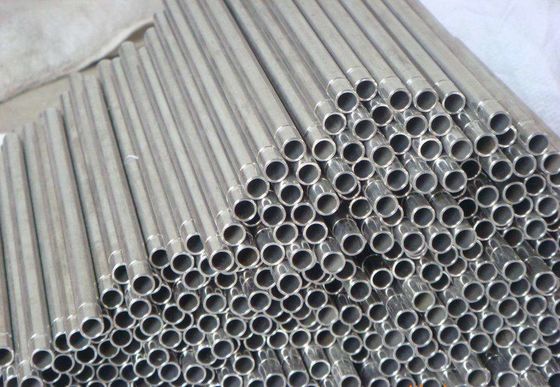

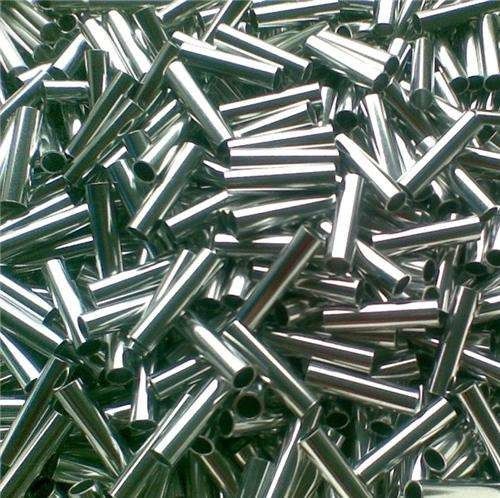

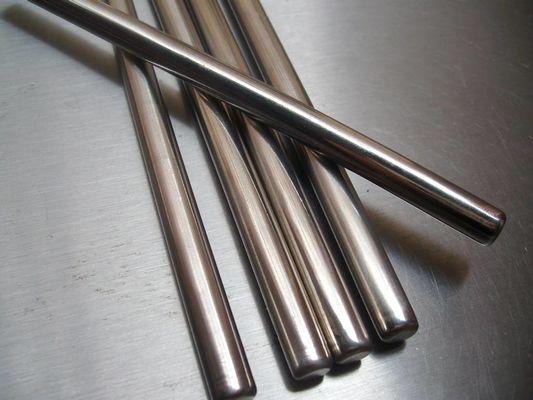

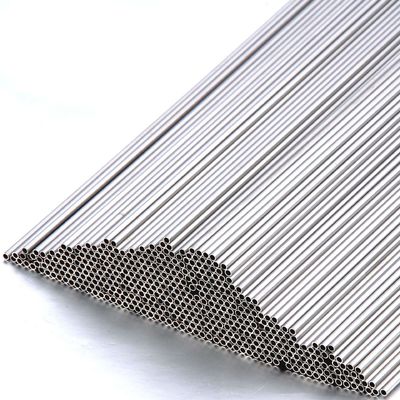

UNS N06600 Capillary Tube INCONEL 600 Tube Nr.2.4816 Seamless tube Thin Wall 0.1mm
Inconel 600 is a nonmagnetic nickel-chromium alloy with excellent resistance to oxidation and other forms of high temperature corrosion. This alloy also has excellent mechanical properties and presents desirable combination of high strength and good workability. Used for furnace and chemical-treatment components, in food processing, in nuclear engineering, and for engine and airframe components.
Our Inconel 600® tube also meets numerous other national and international standards, including:
ASTM B167
ASTM B571
ASTM B829
ASTM B775
ASTM B705
ASTM B704
AMS 5581
ISO 6207
and others
Welding of Inconel 600
Any traditional welding procedures can be used to weld Inconel 600 to similar alloys or other metals. Before welding, preheating is needed and also any stain, dust or mark should be cleared by steel wire brush. About 25mm width to welding edge of base metal should be polished to bright.
Recommend filler wire regarding welding Inconel 600: ENiCr-3
Chemical Composition
| Grade | Ni% | Mn% | Fe% | Si% | Cr% | C% | Cu% | S% |
| Alloy 600 | Min 72.0 | Max 1.0 | 6.0-10.0 | Max 0.50 | 14-17 | Max 0.15 | Max 0.50 | Max 0.015 |
Specifications
| Grade | British Standard | Werkstoff Nr. | UNS |
| Alloy 600 | BS 3075 (NA14) | 2.4816 | N06600 |
strongPhysical Properties
| Grade | Density | Melting Point |
| Alloy 600 | 8.47 g/cm3 | 1370°C-1413 °C |
Mechanical Properties
| Alloy State | Tensile Strength | Yield Strength | Elongation | Brinell Hardness (HB) |
| Annealing Treatment | 550 N/mm² | 240 N/mm² | 30% | ≤195 |
| Solution Treatment | 500 N/mm² | 180 N/mm² | 35% | ≤185 |
Packing Details : Export standard package,bundled or be required.
The inner size of container is below:
20ft GP: 5.8m(length) x 2.13m(width) x 2.18m(high)
40ft GP: 11.8m(length) x 2.13m(width) x 2.18m(high)
40ft HG: 11.8m(length) x 2.13m(width) x 2.72m(high)
Delivery Details : 7-15 days,or according to the order quantity or upon negotiation
