ASTM A789 Super Duplex 2507 Pipe Cold Drawn Stainless Steel Tube For Petrochemical
Contact Person : Richard SHEN
Phone Number : +86-13736164628
WhatsApp : +8613736164628
Minimum Order Quantity : | 0.5 tons | Price : | Negotiation |
---|---|---|---|
Packaging Details : | Bare | Delivery Time : | 5-8 weeks days |
Payment Terms : | L/C, T/T | Supply Ability : | 5000tons per year |
Place of Origin: | China | Brand Name: | Torich |
---|---|---|---|
Certification: | IS09001 ISO14001 TS16949 | Model Number: | 304 316 |
Detail Information |
|||
Material: | 304 316 | Application: | Electric Power |
---|---|---|---|
Production Process: | Welded | Delivery Condition: | Welded Or Annealing |
High Light: | Stainless Steel Tube 310S,309S Stainless Steel Tube,S30815 Stainless Steel Tube |
Product Description

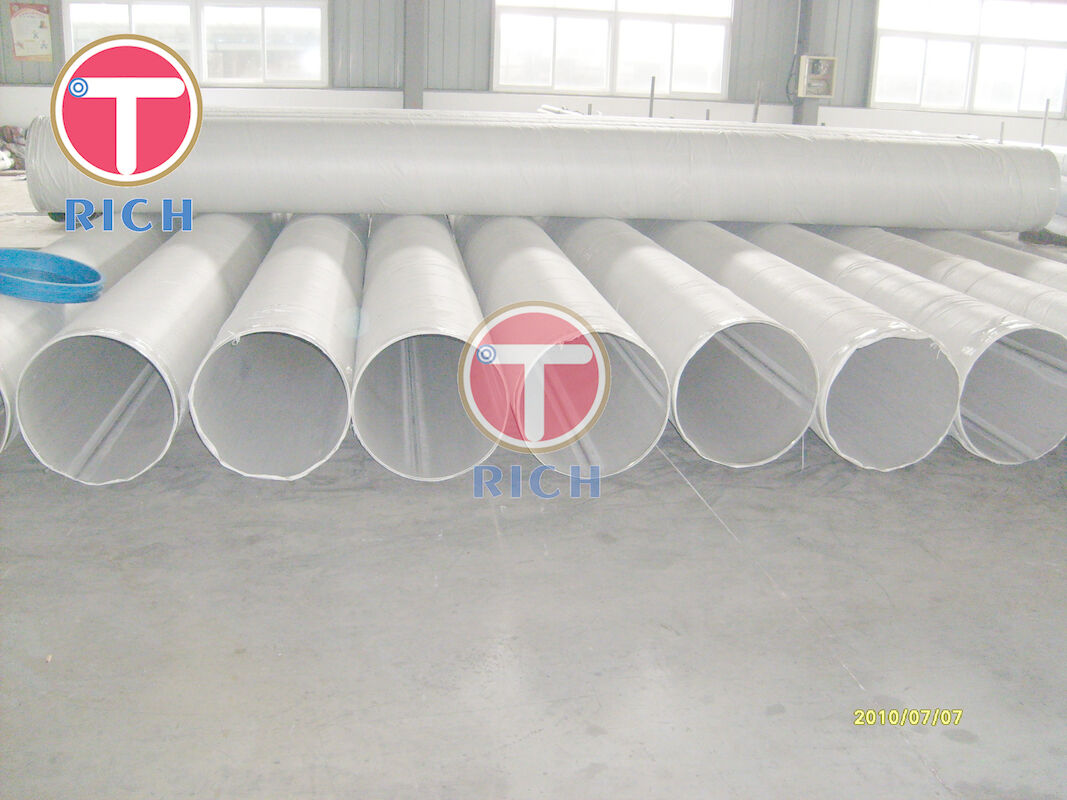

High-Temp 310S 309S,S30815 circumferential weld Circumferential welding of gas pipeline WELDED LARGE DIAMETER PIPE
Quick detail:
Material:High Temp 310S 309S 30815
Production method: Circumferential weld Circumferential welding
Application: Gas pipe line
Aize range:
Single Seam: Outside Diameter 6-914mm Wall thickness 0.5-60mm
Double Seams:Outside Diameter 630-1524mm Wall thickness 2-80mm
Circular Seam:Outside Diameter 630 mm above Wall thickness 2-100
More:

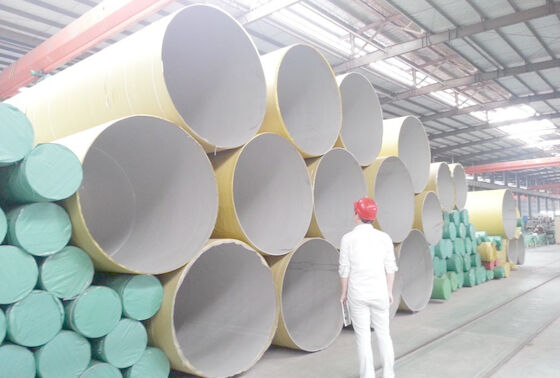

LARGE DIAMETER PIPE Available material
Material | |
Austenitic Stainless Steel | 310S, 309S,316L,321,304L,304 |
Duplex | S,32750,S32760,S31803,S32205 |
Nickel-Base Alloy | N08904,N06600,N08825 |
Copper Nickel Alloy | C70600,C70620 |
Ferrite | 430,409L |
Other Special Material | 254SMO,253MA |
High-Temp Material | 310S,309S,S30815 |
Titanium Alloys | TA2,TA10,TC4 |
All stainless steel pipes are made of grade I stainless steel plate,
Features: no sand hole, no sand hole, no black spot, no crack, smooth weld bead. Bending, cutting, welding processing performance advantages, stable nickel content, products in line with Chinese GB, American ASTM, Japanese JIS and other specifications
Stainless steel material: 304, 304L, 321, 316, 316L, 316H, 316Ti, 316LN, 317, 317L, 904L, 309S, 310S, 2507, 2205, 2520, 201, 304, 904L
1, Specification:
1. Stainless steel round pipe: Φ 4, Φ 5,..., Φ 273.05, Φ 323.85
2. Stainless steel square tube: 4x4, 5x5,... 130x130, 150x150
3. Stainless steel rectangular tube: 10x20,... 130x170
2, Thickness: 0.2, 0.3, 0.4, 0.5, 0.6, 0.7, 0.8, 0.9, 1.0, 1.2, 1.5 (a), 1.5, 2.0 (a), 2.0, 2.5, 3.0, 4.0, 5.0, 6.0
3, Production standards: ASTM A312, ASTM a554, GB / t12770, JIS G3446
4, Special pipe process: internal and external polishing (surface grade: 180 #, 220 #, 240 #, 320 #, 400 #, 600 #); wire drawing; acid pickling; internal weld bead leveling; on-line brilliant heat treatment.
Large diameter stainless steel seamless welded pipe is a kind of long steel with hollow section and no seam around. Kuanyu large diameter 316 stainless steel seamless steel pipe customized, free cutting! * * 316 stainless steel seamless steel pipe * * supplier, annual sales over 100 million!
Structural seamless steel pipe (GB / T8162-1999) is a kind of seamless steel pipe used in general structure and mechanical structure.
Seamless steel pipe for fluid transportation (GB / t8163-1999) is a general seamless steel pipe used to transport water, oil, gas and other fluids. Chemical properties: chemical corrosion resistance and electrochemical corrosion resistance in steel is second only to titanium alloy.
Physical properties: heat resistance, high temperature resistance, low temperature resistance and even ultra low temperature resistance.
Mechanical properties: according to different types of stainless steel, the mechanical properties are different. Martensitic stainless steel has high strength and hardness, which is suitable for manufacturing parts with corrosion resistance, high strength and high wear resistance, such as turbine shaft, stainless steel cutting tool, stainless steel bearing, etc. austenitic stainless steel has good plasticity and low strength, but its corrosion resistance is among stainless steel, which is suitable for the requirements It can also be used in military industries such as submarines. Ferritic stainless steel has moderate mechanical properties and low strength. However, it is resistant to oxidation and is suitable for various industrial furnace parts.
Process performance: austenitic stainless steel process performance, due to good plasticity, can be processed as a variety of plates, tubes and other profiles, suitable for pressure processing, martensitic stainless steel due to high hardness process performance.
Welcome to email us for more details.
