Detail Information |
|||
| Product Name: | C12200 Inner Grooved Copper Tube | Model No: | C12200 |
|---|---|---|---|
| Technique: | Cold Drawn | Surface Treatment: | Oiled |
| Type: | Seamless | Key Words: | Copper Alloys |
| Section Shape: | Round | Application: | Water Tube, Air Condition Or Refrigerator |
| High Light: | Inner Grooved Copper Tube,C12200 Copper Tube,C12200 tube copper seamless |
||
Product Description
C12200 Inner Grooved Copper Tube
1) Standard Complied: ASTM B-68, GB/T 20928
2) Grade: C12200
3) Temper: soft drawn or light soft drawn
4) Unit Weight: 34kg -270 kg
5) Outside diameter: 5.0mm - 16.00mm
6) Inner diameter: 4.3mm - 14.22mm
7) Bottom wall thickness: 0.20mm - 0.75mm
8) Total wall thickness: 0.35mm - 0.83mm
9) Fin Groove Depth: 0.15mm - 0.33mm
|
O.D inch(mm) |
BWT inch(mm) |
Number of fins |
FIN HEIGHT (mm) |
Helix Angle |
Weight (kg/m) |
| (7.0) | 0.330 | 60 | 0.203 | 12 | 0.0781 |
| 5/16 (7.94) | 0.305 | 60 | 0.203 | 18 | 0.0804 |
| 3/8 (9.52) | 0.305 | 60 | 0.203 | 18 | 0.0967 |
| 3/8 (9.52) | 0.330 | 60 | 0.203 | 18 | 0.0989 |
| 3/8 (9.52) | 0.356 | 60 | 0.203 | 18 | 0.1027 |
| 3/8 (9.52) | 0.381 | 60 | 0.203 | 18 | 0.1205 |
| 3/8 (9.52) | 0.406 | 60 | 0.203 | 18 | 0.1176 |
| 1/2 (12.7) | 0.381 | 60 | 0.254 | 18 | 0.1622 |
| 1/2 (12.7) | 0.406 | 60 | 0.254 | 18 | 0.1711 |
| 1/2 (12.7) | 0.432 | 60 | 0.254 | 18 | 0.1792 |
| 1/2 (12.7) | 0.456 | 60 | 0.254 | 18 | 0.1887 |
| 1/2 (12.7) | 0.483 | 60 | 0.254 | 18 | 0.2064 |
| 5/8 (15.88) | 0.498 | 75 | 0.305 | 23 | 0.2695 |
| 5/8 (15.88) | 0.510 | 75 | 0.305 | 23 | 0.2695 |
| 5/8 (15.88) | 0.510 | 75 | 0.305 | 25 | 0.3049 |
| 5/8 (15.88) | 0.584 | 75 | 0.305 | 25 | 0.3240 |
| 5/8 (15.88) | 0.635 | 60 | 0.305 | 27 | 0.3503 |
| 5/8 (15.88) | 0.715 | 60 | 0.305 | 27 | 0.3726 |
Applications :
The continuous or discontinuous spiral groove on inner surface of copper tube can increase contact area, change the flow type of refrigerant in the tube. The outer surface of copper tube can also be processed with corrugate spiral groove to expand range of use. It is suitable for heat exchanger in home air conditioner or dry evaporator in central conditioner.
Air-conditioner
Heat exchanger
Central air-conditioner dry evaporator
Heat pipe radiator of electronic products
Solar equipments
Water-cooled screw chilled water units

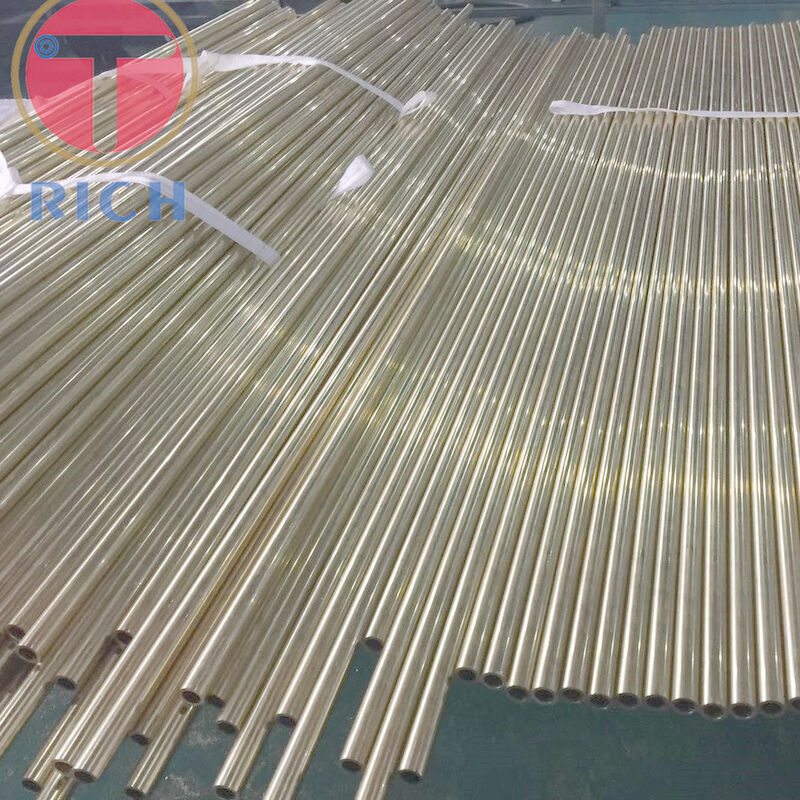

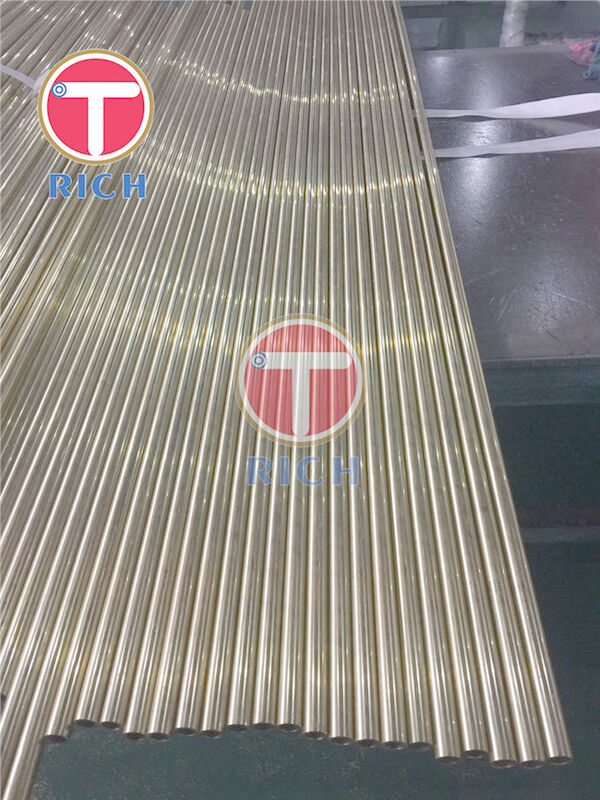

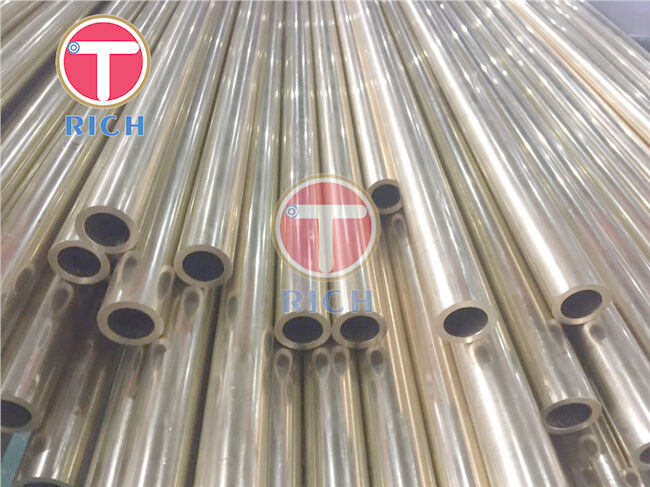

Product Pictures:
Company Introduction:

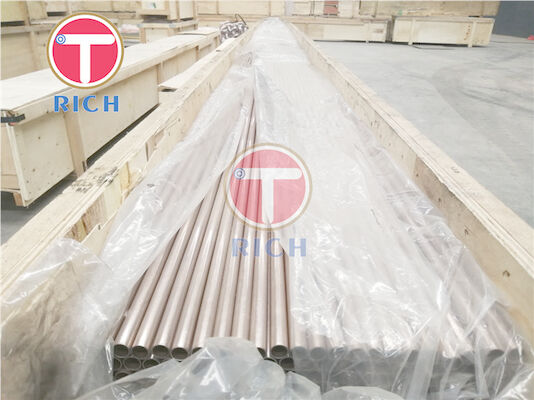

Packaging and Delivery:
