WT25mm OD325mm UNS N08810 1.4958 Incoloy 800H Pipe

Minimum Order Quantity : 2 ton Payment Terms : L/C, D/A, D/P, Western Union, T/T, MoneyGram
Place of Origin: Zhejiang,China Brand Name: Torich
Model Number: Incoloy 800H

Detail Information

Product Name: Incoloy 800H / UNS N08810 / 1.4958 Nickel Alloy Products Standard: Incoloy 800H
Surface Condition: AP, BA, Polished Delivery Condition: Solution Annealed
MOQ: 2 Ton Alloy Or Not: Alloy
OD: 6-325mm WT: 0.5-25mm
High Light:

OD325mm incoloy 800h pipe

,

WT25mm Incoloy 800H Pipe

,

OD325mm incoloy 800h tube

Product Description



Incoloy 800H / UNS N08810 / 1.4958 Nickel Alloy Seamless Pipe ASTM B407

This specification covers the standard requirements for nickel-iron-chromium alloy which include UNS N08120, UNS N08800, UNS N08801, UNS N08810, UNS N08811, UNS N08890, and UNS N06811 in the form of cold-worked and hot-finished annealed seamless pipe and tube.

Incoloy 800, 800H, and 800HT are nickel-iron-chromium alloys with good strength and excellent resistance to oxidation and carburization in high-temperature exposure. These nickel steel alloys are identical except for the higher level of carbon in alloy 800H, and the addition of up to 1.20 percent aluminum and titanium in alloy 800HT. Incoloy 800 was the first of these alloys and it was slightly modified into Incoloy 800H. This modification was to control carbon (.05-.10%) and grain size to optimize stress rupture properties. Incoloy 800HT has further modifications to the combined titanium and aluminum levels (.85-1.20%) to ensure optimum high temperature properties.The nickel alloy is dual certified (800H/HT) and combines the properties of both forms. Incoloy 800H/HT alloy was intended for high temperature structural applications. The nickel content makes the alloys highly resistant to both chloride stress-corrosion cracking and to embrittlement from precipitation of sigma phase. The general corrosion resistance is excellent. In the solution annealed condition, alloys 800H and 800HT have superior creep and stress rupture properties. Today, most suppliers, including Mega Mex, only carry the dual certified 800H/HT alloy.

ASTM Specifications

Alloy Pipe Smls Pipe Welded Tube Smls Tube Welded Sheet/Plate Bar Forging Fitting
Alloy 800 (UNS N08800) B407 B154 B163 B515 B409 B408 B564 B366
Alloy 800H (UNS N08810) B407 B154 B163 B515 B409 B408 B564 B366
Alloy 800HT (UNS N08811) B407 B154 B163 B515 B409 B408 B564 B366

Alloy 800 (UNS N08800) Chemical Composition, %

Ni Cr Fe C Al Ti Al+Ti
30.0-35.0 19.0-23.0 39.5 min .10 max .15-.60 .15-.60 .30-1.20

Alloy 800H (UNS N08810) Chemical Composition, %

Ni Cr Fe C Al Ti Al+Ti
30.0-35.0 19.0-23.0 39.5 min .05-.10 .15-.60 .15-.60 .30-1.20

Alloy 800HT (UNS N08811) Chemical Composition, %

Ni Cr Fe C Al Ti Al+Ti
30.0-35.0 19.0-23.0 39.5 min .06-.10 .25-.60 .25-.60 0.85-1.2



Product Pictures:

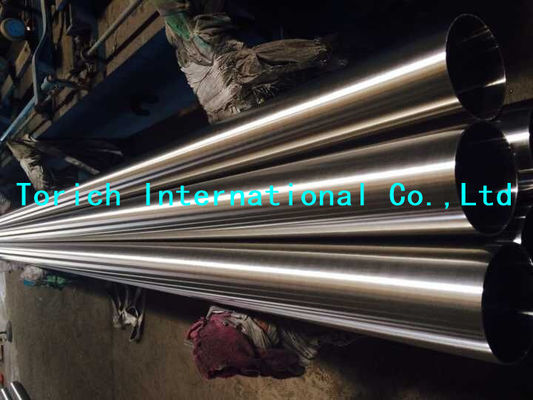

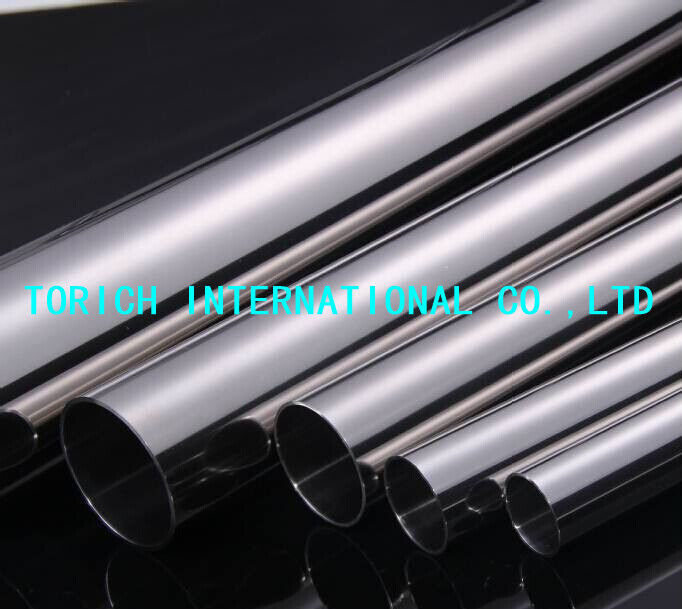

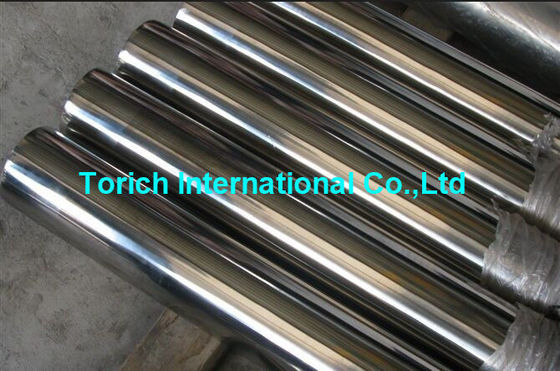

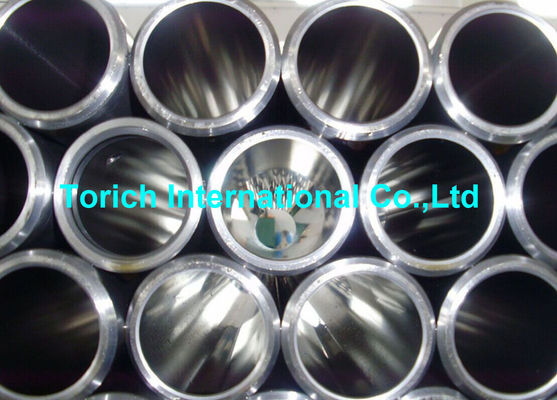

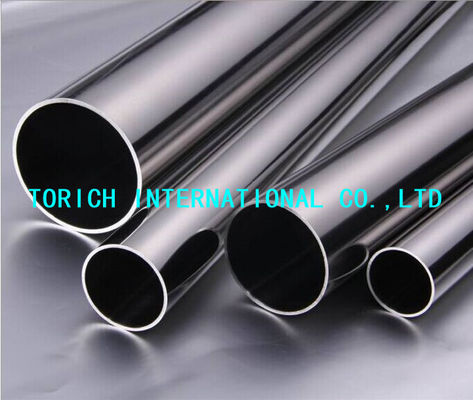

WT25mm OD325mm  UNS N08810 1.4958 Incoloy 800H Pipe 0

WT25mm OD325mm  UNS N08810 1.4958 Incoloy 800H Pipe 1

QUALITY CONTROL



1. Incoming Raw Material Inspection

2. Raw Material Segregation to avoid steel grade mix-up
3. Heating and Hammering End for Cold Drawing
4. Cold Drawing and Cold Rolling, on line inspection
5. Heat Treatment, +A, +SRA, +LC, +N, Q+T
6. Straightening-Cutting to specified length-Finished Measuring Inspection
7. Machanical Testing in own labs with Tensile Strength, Yield Strength, Elongation, Hardness, Impact, Mictrostruture etc
8. Packing and Stocking



100% of our steel tubes are dimensionally checked
100% of our steel tubes are visually checked to assure they have a perfect surface condition and no surface defects.
100% eddy current test and ultrosonic test to eliminate longitudinal and transversal defects
