SUPER DUPLEX 2507 STAINLESS STEEL

Packaging Details : In wooden boxes or hexagonal bundles in seaworthy packing Delivery Time : 35-45days
Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
Place of Origin: CHINA Brand Name: TORICH
Model Number: ASTM A 789 ASME SA 789

Detail Information

Product Name: DUPLEX 2507 STAINLESS STEEL Technique: Cold Drawn
Type: Seamless Alloy Or Not: Non-alloy
Section Shape: Round Application: For Boilers,Superheaters,Steam Linepipes Of Boilers
Keyword: Duplex Stainless Steel Pipe Grade: ASTM A 789 ASME SA 789

Product Description

DUPLEX 2507 STAINLESS STEEL

Duplex 2507 (UNS S32750) is a super duplex stainless steel with 25% chromium, 4% molybdenum, and 7% nickel designed for demanding applications which require exceptional strength and corrosion resistance, such as chemical process, petrochemical, and seawater equipment. The steel has excellent resistance to chloride stress corrosion cracking, high thermal conductivity, and a low coefficient of thermal expansion. The high chromium, molybdenum, and nickel levels provide excellent resistance to pitting, crevice, and general corrosion.

Applications

  • Oil and gas industry equipment
  • Offshore platforms, heat exchangers, process and service water systems, fire-fighting systems, injection and ballast water systems
  • Chemical process industries, heat exchangers, vessels, and piping
  • Desalination plants, high pressure RO-plant and seawater piping
  • Mechanical and structural components, high strength, corrosion-resistant parts
  • Power industry FGD systems, utility and industrial scrubber systems, absorber towers, ducting, and piping

Standards
ASTM/ASME ………. A240 – UNS S32750
EURONORM………… 1.4410 – X2 Cr Ni MoN 25.7.4
AFNOR……………….. Z3 CN 25.06 Az

Chemical Properties

Typical values (Weight %)

C Cr Ni Mo N Others
0.020 25 7 4.0 0.27 S=0.001
C Cr Ni Mo N Others

Mechanical Properties

Ultimate Tensile Strength, ksi 116 min.
0.2% Offset Yield Strength 0.2%, ksi 80 min.
0.1% Offset Yield Strength 0.2%, ksi 91 min.
Elongation in 2 inches, % 15 min.
Hardness Rockwell C 32 max.
Impact Energy, ft.-lbs. 74 min.

Physical Properties

Density lb/in^3 0.28
Modulus of Elasticity psi x 10^6 29
Coefficient of Thermal Expansion
68-212°F/°F
x10^-6/°F 7.2
Thermal Conductivity Btu/h ft °F 8.7
Heat Capacity Btu/lb/°F 0.12
Electrical Resistivity W-in x 10^-6 31.5

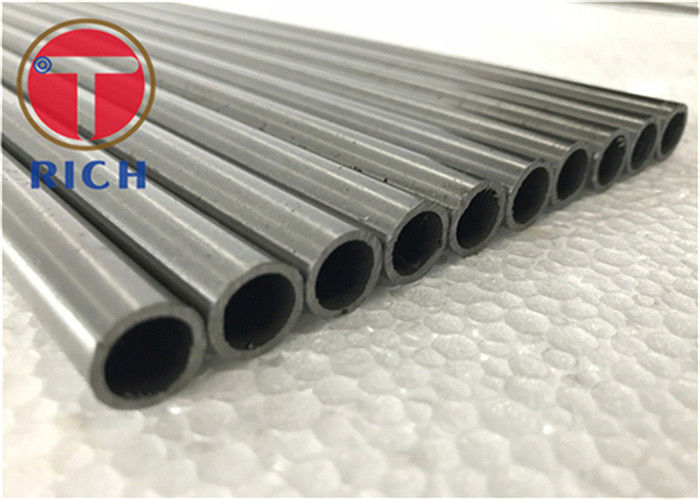

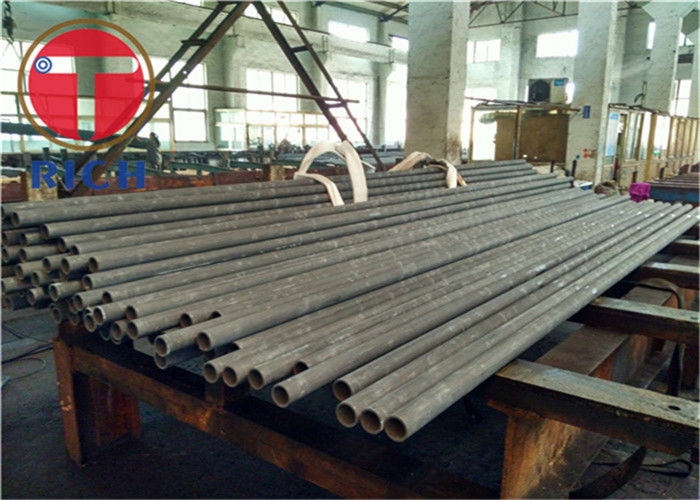

Product Pictures:
