GB/T 3077 38CrMoAL Cold Drawn Carton Seamless Alloy Steel Pipe For Automobile Industry
Contact Person : Richard SHEN
Phone Number : +86-13736164628
WhatsApp : +8613736164628
Minimum Order Quantity : | 5 Tons | Price : | negotiable |
---|---|---|---|
Packaging Details : | packing in wooden boxes or in hexagonal bundles | Delivery Time : | 30-35 days |
Payment Terms : | L/C, D/A, D/P, T/T, Western Union, MoneyGram | Supply Ability : | 60000 Ton per year |
Place of Origin: | ZheJiang,CHINA | Brand Name: | TORICH |
---|---|---|---|
Certification: | ISO9001; ISO14001; TSI16949 | Model Number: | ASTM A210 |
Detail Information |
|||
Product Name: | ASTM A210 Seamless Carbon Steam Boiler Tubes For Boiler And Superheater | Keyword: | Seamless Carbon Steel Tube |
---|---|---|---|
Standard: | ASTM A210 | Application: | For Boilers,Superheaters,Steam Linepipes Of Boilers |
Alloy Or Not: | Non-alloy | Technique: | Cold-drawn |
Secondary Or Not: | Non-Secondary | Grade: | A-1, C |
O.D.: | 6-168mm | W.T.: | 1-15mm |
Length: | According To Customers' Requirement | Section Shape: | Round |
Usage: | Boiler Pipes | Surface Treatment: | Oiled |
Product Description
ASTM A210 Seamless Carbon Steam Boiler Tubes for Boiler and Superheater
Applications: For Boilers,Superheaters,Steam linepipes of boilers
Technique: Cold-drawn
Steel Grade/Steel Material: A-1, C
Size range:
O.D. | 6-168mm |
W.T. | 1-15mm |
Length | max 12000mm |
Characteristic:
Good concentricity
Good OD and ID tolerance
High Precision
Stable quality
Smooth Roughness
TORICH QUALITY ASSURANCE
Chemical Composition:
Steel Grade and Chemical Compositions: | |||||
Grade | C | Mn | P | S | Si |
A-1 | ≤0.27 | ≤0.93 | ≤0.035 | ≤0.035 | ≥0.10 |
C | ≤0.35 | 0.29-1.06 | ≤0.035 | ≤0.035 | ≥0.10 |
Mechanical proporties:
Grade | Tensil Strength Mpa(ksi) |
Yield Point Mpa(ksi) |
Elongation |
A-1 | ≥255(37) | ≥415(60) | ≥30% |
C | ≥275(40) | ≥485(70) | ≥30% |
Tolerance for OD and WT(SA-450/SA-450M) | |||||
OD in(mm) | + | - | WT in(mm) | + | - |
<1''(25.4) | 0.10 | 0.10 | ≤1.1/2''(38.1) | 20% | 0 |
1''~1.1''(25.4~38.1) | 0.15 | 0.15 | >1.1/2''(38.2) | 22% | 0 |
>1.1/2''~<2''(38.1~50.8 | 0.20 | 0.20 | |||
2''~<2.1/2''(50.8~63.5) | 0.25 | 0.25 | |||
2.1/2''~<3''(63.5~76.2) | 0.30 | 0.30 | |||
3''~<4''(76.2~101.6) | 0.38 | 0.38 | |||
4''~<7.1/2''(101.6~190.5) | 0.38 | 0.64 | |||
>7.1/2~9''(190.5~228.6) | 0.38 | 1.14 |

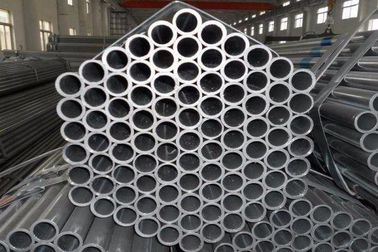

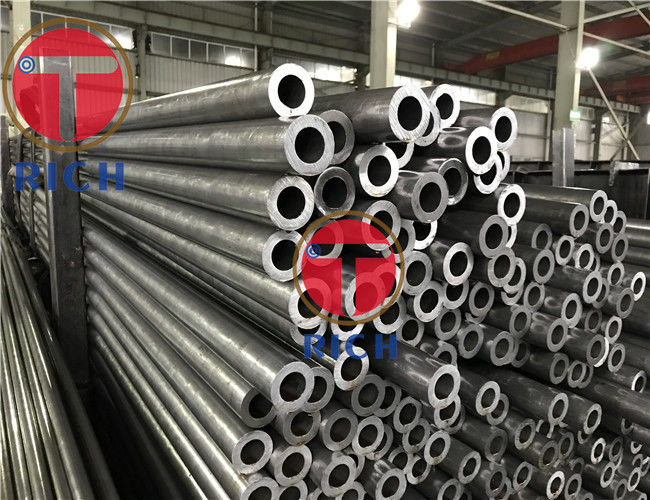

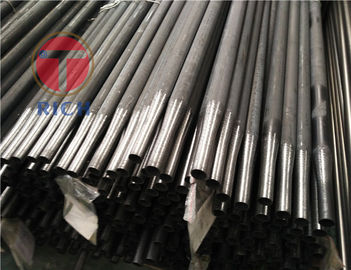

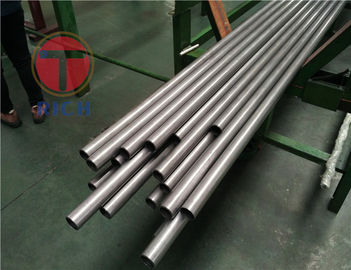

Product Show:
FAQ
What is your Payment Term?
1.T/T: 30% deposit in advance, the balance 70% paid before shipment
2.30% down payment, the balance 70% paid against L/C at sight
3.Upon negotiation
Who are your customers?
1.Stockists, Distributors,Wholesalors,Agents, Traders, End Users, etc
How long will you react on our requirement?
1.Your requirement would be treated within 24 hours on weekdays. Quotations would be sent upon technical details confirmed by customer!
Any more questions about your doubts, please feel free to send us your emails or call!
ASTM A210 Seamless Carbon Steam Boiler Tubes for Boiler and Superheater
