ASTM A519 1035 Seamless Carbon And Alloy Steel Mechanical Tubing For Hydraulic
Contact Person : Richard SHEN
Phone Number : +86-13736164628
WhatsApp : +8613736164628
Minimum Order Quantity : | 1 Tons | Packaging Details : | In bundles or in wooden boxes packaging.as per clients' options. |
---|---|---|---|
Delivery Time : | 30-35days | Payment Terms : | L/C, D/A, D/P, Western Union, T/T, MoneyGram |
Supply Ability : | 60000 Tons/Year |
Place of Origin: | ZheJiang,CHINA | Brand Name: | TORICH |
---|---|---|---|
Certification: | ISO |
Detail Information |
|||
Model Number: | GB/T 9808 -2008 | Technique: | Cold Drawn |
---|---|---|---|
Surface: | Oiled | Material: | ZT380,490,520,540,590,640,740 |
Usage: | Oil Drill Mineral Mining | OD: | 6-420mm |
WT: | 0.5-50mm | Length: | 4000-12500mm |
Steel Grade: | ZT380,ZT490,ZT520,ZT540,ZT590,ZT640,ZT740 | Heat Treatment: | Normalized, Q+T |
High Light: | Geological Seamless Steel Tube,12500mm Seamless Steel Tube,Oiled Geological Steel Tube |
Product Description
GB/T 9808-2008 Seamless Steel Pipe for Geological Drill and Mining Tubing
Product Description:
This standard specifies the drilling seamless code, ordering content, dimensions, Weight, , technical requirements, test methods, marking and quality certification, packaging, appearance inspection rules. This standard applies to the geological core drilling, well drilling, hydrogeological drilling, engineering drilling casing material, core tube materials and materials with seamless steel casing collar, ordinary drill pipe tool joints feed materials and seamless steel pipes, steel particles Drill material seamless steel pipe, rope coring drill pipe tool joints feed materials and seamless steel pipes, drill collars, drill collar lock connector feed materials and seamless steel pipes.
Chemical Compositon
CHEMICAL COMPOSITION % max | |
P | S |
0.030 | 0.030 |
Bending Degree
Nominal Wall Thickness/mm | Bending Degree/(mm/m) |
≤15 | ≤1.5 |
>15 | ≤2.0 |
The bending degree of the wire-line drill rod is not larger than 1.0 mm per meter.
Tolerance
Standard | Producton Method | Tube Size | Tolerance | |
GB/T 9808-2008 | Hot rolled | OD | (+1.0%D) +0.65 (-0.5%D) -0.35 |
|
WT | ≤10 | (+15%S) +0.45 (-10%S) -0.35 |
||
>10 | (+12.5%S, -10%S) | |||
Cold Drawn | OD | ±0.50%D or ±0.20 | ||
WT | ±8%S or ±0.15 | |||
Q(N)/ T118-2010 | Cold Drawn | OD | OD | ±0.40%D or ±0.20 |
WT | WT | ±7%S or ±0.15 |
Chemical composition
Stee Grade | C | Si | Mn | P max | S max | Cu max | Cr | Mo | B |
T600 (45MnMoB) |
0.43-0.48 | 0.17-0.37 | 1.05-1.35 | 0.02 | 0.015 | 0.20 | ~ | 0.20-0.25 | 0.001- 0.005 |
T750 (30CrMnSiA) |
0.28-0.34 | 0.90-1.20 | 0.80-1.10 | 0.02 | 0.015 | 0.20 | 0.8-1.1 | ~ | ~ |
T850 4140 |
0.38-0.43 | 0.17-0.35 | 0.70-0.90 | 0.02 | 0.015 | 0.20 | 0.9-1.1 | 0.15- 0.25 |
~ |
Testing items and sampling quantity for steel tube
Serial number | Testing item | Sampling quantity |
1 | Chemical composition | 1 sample from each furnace |
2 | Tensile test | 1 sample from each batch |
3 | Ultrasonic examination | All |
4 | Eddy current test | All |
5 | Magnetic flux leakage test | All |
Grade comparison table
This standard | JIS G 3465-2006 | Related industry standard |
ZT380 | — | DZ240 |
ZT490 | — | DZ250 |
ZT520 | STM-R780 | — |
ZT540 | — | DZ255 |
ZT590 | — | DZ260 |
ZT640 | — | DZ265 |
ZT740 | — | DZ275 |
Mechanical Properties:
Steel | Tensile Strength Mpa | Yield Point Mpa | Elongation % | Heat treatment |
Grade | min | |||
ZT380 | 640 | 380 | 14 | Normlized |
ZT490 | 690 | 490 | 12 | Normlized |
ZT540 | 740 | 590 | 12 | Normlized |
ZT590 | 770 | 590 | 12 | Normlized |
ZT640 | 790 | 640 | 12 | QT |
ZT740 | 840 | 740 | 10 | QT |
T850 | 950 | 850 | 15 | QT |

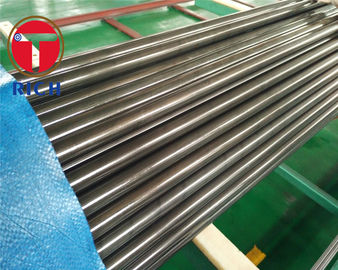

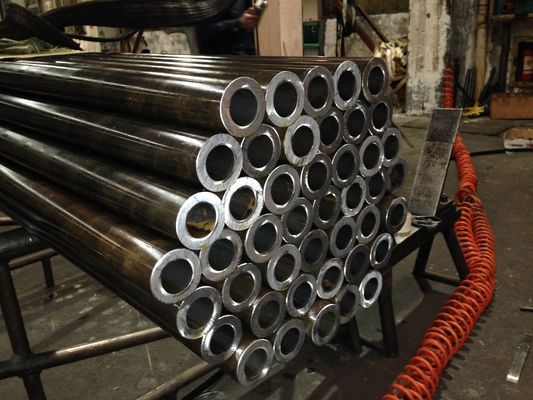

Product Picture:

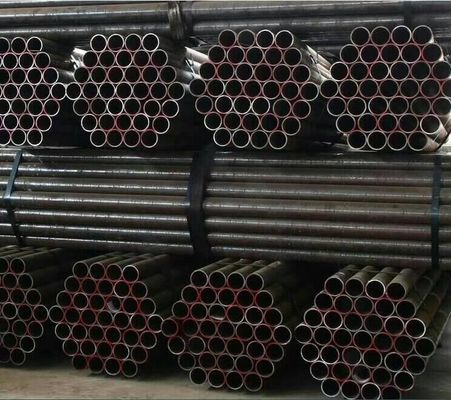

Package and Delivery:
Q: Are you trading company or manufacturer ?
A: A professional steel pipes materials inventor, manufacturer and solution provider
A: Generally it is 7-14 days if the goods are in stock. or it is 30-60 days if the goods are not in stock, it is according to quantity.
A: Yes, we could offer the sample for free charge but need pay the cost of freight.
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us.
