Super Heater ERW Boiler Steel Tube SA178 Grade A Grade C Carbon
Contact Person : Richard SHEN
Phone Number : +86-13736164628
WhatsApp : +8613736164628
| Minimum Order Quantity : | 1 Tons | Packaging Details : | In plywood case, In wooden box. |
|---|---|---|---|
| Delivery Time : | 30-45 days after order confirmed | Payment Terms : | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability : | 20000 Ton per Year |
| Place of Origin: | ZheJiang,CHINA | Brand Name: | TORICH |
|---|---|---|---|
| Certification: | ISO 9001 ISO14001 TS16949 | Model Number: | ASTM A178 |
|
Detail Information |
|||
| Standard Specification: | ASTM A178, ASME SA178 | Grade: | Grade A, Grade C, Grade D, BKW, NBK, GBK |
|---|---|---|---|
| Shape: | Round, Coiled, “U” Bend, Rectangular, Hydraulic | Producing Process: | Electric-Resistance-Welded |
| Delivery Condition: | Annealed, Normalized, Tempered, Heat Treatment, BK, BKS | Surface: | Varnish |
| End Finish: | Plain End, Beveled End, Treaded Protected With Plastic End Caps | Available Sizes: | 4 Inch To 26 Inch, Customized Size Available |
| High Light: | ERW Heat Exchanger Tubes,ASTM A178 Heat Exchanger Tubes,SA178a Heat Exchange Tube |
||
Product Description
ASTM A178 ERW Carbon Steel Boiler and Suoer Heater Tubes
Product Description:
ASTM A178 is a specification which covers standards for electric resistance welded tubes, which are abbreviated as ERW SA178 Boiler Tube. These ASTM specified SA178a Boiler Tubes are produced with a minimum wall thickness made from carbon steel alloys as well as carbon- manganese steel. This ASTM SA178 Grade A Electric-Resistance Welded Carbon Steel Boiler Tubes are designed to be used in boiler flues, boiler tubes, superheater flues, and safe ends as well. While the specification covers various alloy groups in terms of grades, the SA 178 Gr A Tubes are manufactured from low carbon steel. This low carbon based SA178a Tube Material, although soft is known to have outstanding ductility and toughness properties along with being machinable and weldable. Also, our clients prefer using this Carbon Steel ASTM A178 Tubing because it is a vert cost-effective piping solution.
All the grades of the ASTM specified SA178 Boiler Tube have to be submitted to heat treatment after welding. After undergoing a heat treatment, the SA 178 Gr A ERW Boiler Tubes need to be cooled subsequently. Both grade D and SA178c Carbon-Manganese Steel Boiler Tubes are required to conform to given requirements with regards to the tensile properties, such as tensile strength, yield strength, and elongation properties as well. In addition to these all four grades of the SA178 Boiler Tube i.e. a, b, c & d have to conform to the chemical requirements of the specification. The material for every grade of ASTM A178 needs to also be subjected to various tests such as flange, flattening, tension, reverse flattening, and hydrostatic or even a non-destructive electric test.
Size Range:
| O.D. | 12.7mm to 127mm |
| W.T. | 1.5mm to 6.0mm |
| Length | 25m(max) |
SA178/ SA178a Boiler Tubes Chemical Compatibility
| Grade | C | Mn | P(max) | S(max) | Si |
| A/SA 178 Gr. A | 0.06 - 0.18 | 0.27 - 0.63 | 0.035 | 0.035 | - |
| A/SA 178 Gr. C | 0.35 max | 0.80 max | 0.035 | 0.035 | - |
| A/SA 178 Gr. D | 0.27 max | 1.00 - 1.50 | 0.030 | 0.015 | 0.10 min |
| Material Grade | Tensile Strength, KSI (MPa) | Yield Strength, KSI (MPa) | Elongation, min. % |
| A/SA 178 Gr. A | 47 (325) | 26 (180) | 35 |
| A/SA 178 Gr. C | 60 (415) | 37 (255) | 30 |
| A/SA 178 Gr. D | 70 (485) | 40 (275) | 30 |
Common uses& Application:

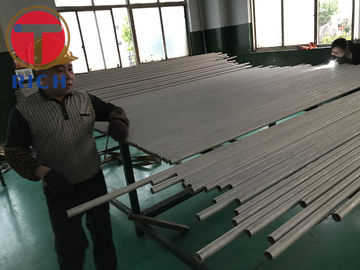

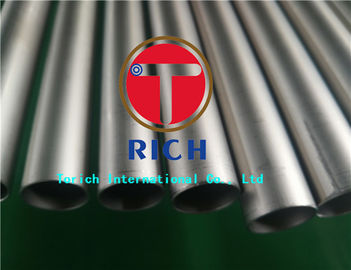

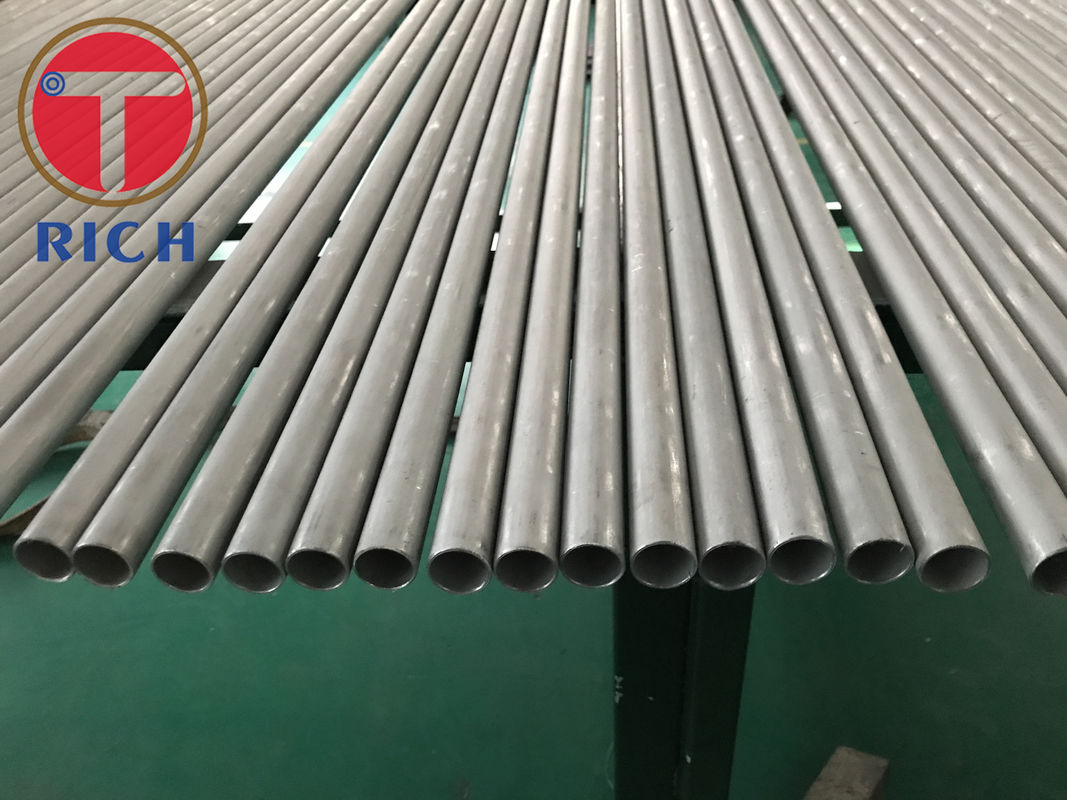

Product Pictures:
Packing and Delivery :
FAQ:
Q: Are you trading company or manufacturer ?
A: A professional steel pipes materials inventor, manufacturer and solution provider
A: Generally it is 7-14 days if the goods are in stock. or it is 30-60 days if the goods are not in stock, it is according to quantity.
A: Yes, we could offer the sample for free charge but need pay the cost of freight.
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us.
