Cold Rolled ASTM A106 12m 24mm Seamless Hydraulic Tubing

Minimum Order Quantity : 500Kg Packaging Details : Standard Exporting Seaworthy Packing
Delivery Time : 4-6 Weeks Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability : 5000 Tons per Year
Place of Origin: ZHEJIANG Brand Name: TORICH
Certification: ISO Model Number: ST 37

Detail Information

Thickness: 1 - 30 Mm Outer Diameter: 13.7 - 219.1 Mm
Application: Hydraulic Pipe Surface Treatment: Black Painting
Usage: Machinery,Fittings Of Car And Motorbike Length: 3m-12m
High Light:

24mm Seamless Hydraulic Tubing

,

ASTM A106 Seamless Hydraulic Tubing

,

Cold Rolled Steel Hydraulic Tubing

Product Description

24mm High Precision Seamless Steel Tube



Standard ASTM A106, ASTM A53, API 5L Gr.B, DIN17175,DIN1629
Material ASTM A106B, ASTM A53B, CK45,S45C,ST52, ST37,ST44,SAE1010,SAE1020,SAE1045,SCM435
Outer diameter 13.7mm-219.1mm
Wall thickness 1.5mm-30mm
Length 3-12m, random or fixed, as the clients' requests
Technology Cold Rolled
Tolerance Control with in the standard, OD:+/-0.1mm, WT:+/-0.1mm



Advantages

1.Short delivery time
2.Quality assurance
3.Competitive price
4. Free Sample





Cold Rolled High Precision Seamless Steel Pipes belong to the best quality seamless steel pipes.

It have bright and smooth surface.So they have great use on Mechanical Properties,the fittings of Car and Motorbike,

Hydraulic Cylinder Systerm,Middle and Low Pressure Bolier Systerm,Shipping,Bearing and so on.





Because the very strict tolerance(-/+0.05mm),the pipes also called "High Precision Seamless Steel Pipes".

They can save and improve the processing efficiency during mechianical properties.They can also save

energy during the mechinancial property process.

Accoring to the strict tolerance of pipes,the roundness and straightness are also very good and strict.

So the pipes can greatly save machining time,improve material utilization,and help improve product quality.

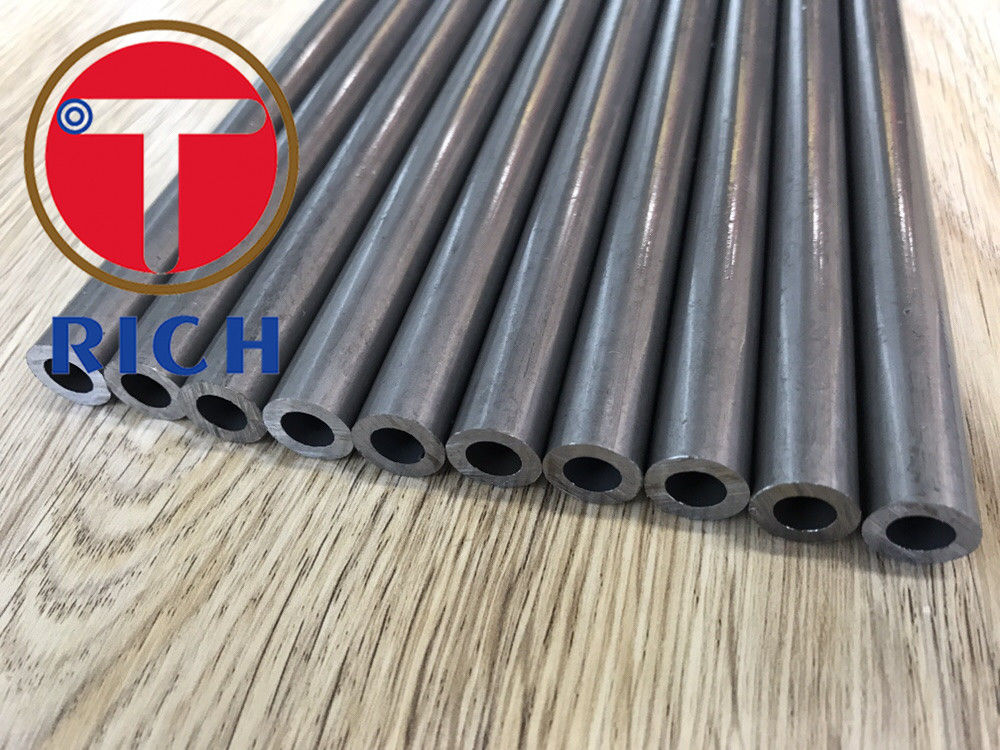

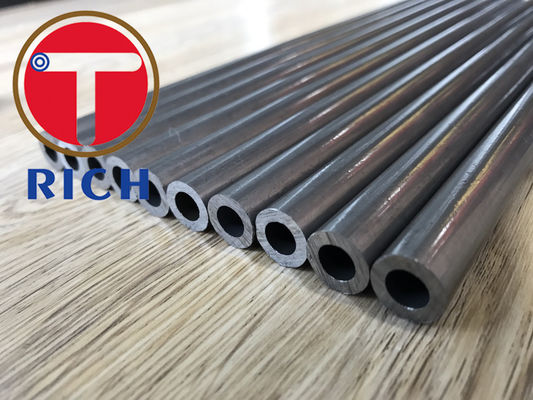

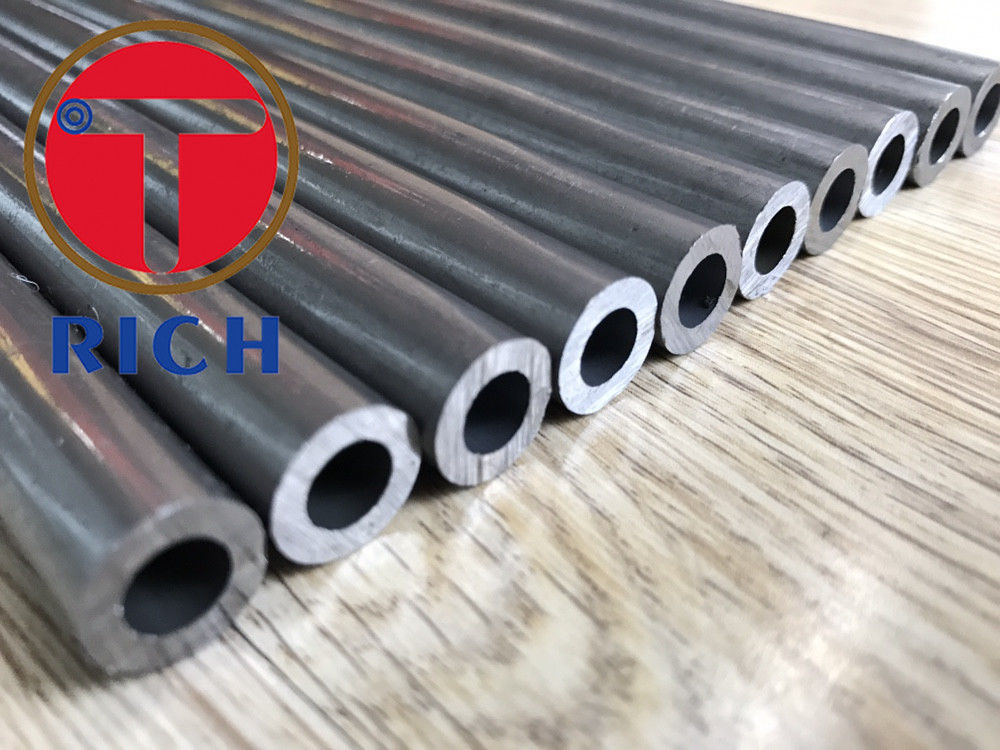

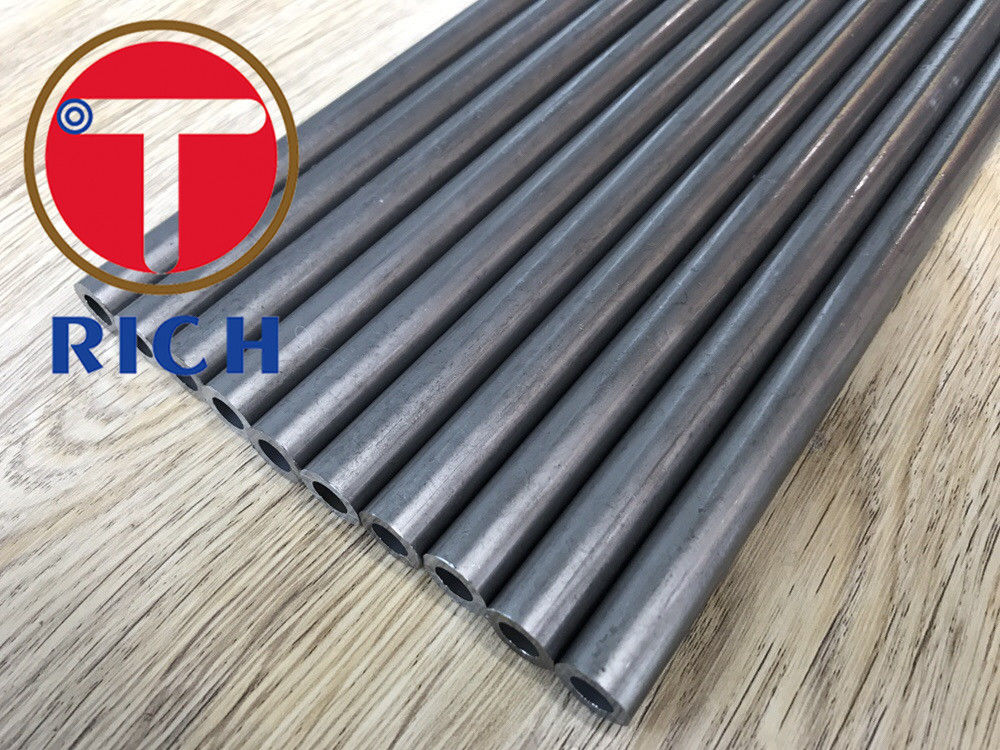

Cold Rolled ASTM A106 12m 24mm Seamless Hydraulic Tubing 0



Cold Rolled ASTM A106 12m 24mm Seamless Hydraulic Tubing 1



Cold Rolled ASTM A106 12m 24mm Seamless Hydraulic Tubing 2



Cold Rolled ASTM A106 12m 24mm Seamless Hydraulic Tubing 3





Packaging & Delivery


Packaging Details:
1. Small OD: In hexagonal bundle with steel strips
2. Large OD: In bulk
3. Wrapped in waterproof plastic woven bag
4. Filled in wooden cases

5. As required
Delivery Detail:Shipped in 7-15 days after payment



Cold Rolled ASTM A106 12m 24mm Seamless Hydraulic Tubing 4



Cold Rolled ASTM A106 12m 24mm Seamless Hydraulic Tubing 5
