Erw Automotive Steel Tubes JIS-G 3445 EN 10305-3 STKM11 STKM12 Supporting Auto Seat Headrest
Contact Person : Richard SHEN
Phone Number : +86-13736164628
WhatsApp : +8613736164628
Detail Information |
|||
Material: | Low Carbon Steel | Type: | TSW |
---|---|---|---|
Standard: | JASO M101 | Packages: | In Wooden Boxes Packages |
Coating: | As Per Requests | Application: | Automotive Brake |
High Light: | JASO M101 Automotive Steel Tubes,TSW Automotive Steel Tubes |
Product Description

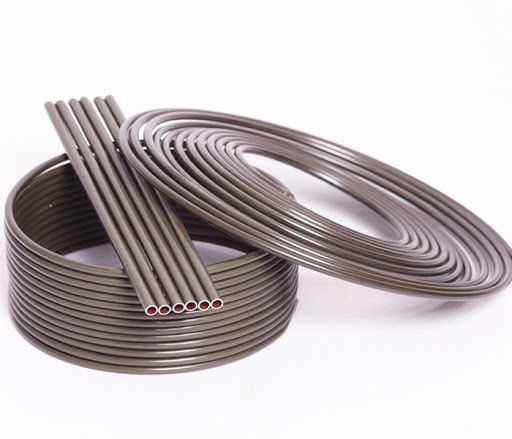

Poly-Armour PVF Steel Brake/Fuel/Transmission Line Tubing Coil automotive steel pipe
Automotive steel tubes
Flattening&Bending Test
DW No crack
SW Not mentioned.
Tolerance :
Outside Dia: Nominal +/-0.1mm
Wall thickness: Nominal +/-0.1mm
Appearance : No harmful defect
Automotive steel tubes material:
Chemical Composition:
C |
Mn | P | S |
0.12Max | 0.50Max | 0.04Max | 0.045Max |
Mechanical properties
T.S. | Y.P. | E.L | HR30T |
30kg/mm2min | 18kg/mm2min | 25%min | 65Max |
Corrosion Resistance (Hours)
Zn8μm | Zn13μm | Zn25μm | Zn+PVF | |
White | 72 | 72 | 72 | - |
Red |
192 | 288 | 480 | 3000 |
Pressure Proof Test(kg/mm2)
DW |
SW | |
Under 8 | 350 | 250 |
8.00-10.0 | 250 | 200 |
Automotive steel tubes
TDW Brazed double wall low carbon steel tubing Tubing mainly for brakes
TSW Welded low carbon steel tubing Tubing mainly for fuel and lubrication
STKM 11J Carbon steel tubes for machine Structural purpose Tubing for cooling etc.
C1201 or C1220 Tubing mainly fpr air brakes
