Product Details:
Payment & Shipping Terms:
|
| Product Name: | ASTM A254 BHG1 Welded Steel Tube | Keyword: | Bundy Tube |
|---|---|---|---|
| Material: | ASTM A254 BHG1 | Shape: | Round |
| Technique: | ERW | Usage: | Refrigeration |
| Surface: | Copper Coating | Length: | Max12000mm |
| OD: | 0.28-10mm | WT: | 0.08-1mm |
| High Light: | ASTM A254 Welded Steel Tube,BHG1 Welded Steel Tube |
||
1. Standard
ASTM A254 Copper-brazed steel tubing
SAE J526 Welded low-carbon tubing
EN10305-6 Welded cold drawn tubes from hydraulic and pneumatic power systems
2. Steel Grade
BHG1, SPCC, SPCD, SPCEN, ST14, ST15, ST16, DC04, DC05, DC06
3. Heat Treatment
BK or NBK
4. Specification
| O D/ mm | 4 | 4.2 | 4.76 | 6 | 6.35 | 7.8 | 8 | 9.52 |
| W T | 0.5-1.0mm (0.5-0.7mm common WT) | |||||||
| Tolerance | ±0.05mm | |||||||
| Length | 180Kg/coil; 700-1000m/coil; per customer’s request | |||||||
5. Production Process
Tube welding– Cold drawing (reduce diameter)– Annealing in Protected Atmosphere— Cleaning-- Leakage detection– Zinc/Copper Plating– Keep pressure (Airtightness) – Packing
6. Surface Treatment
| Coating | Thickness | Salt spray test duration |
| Copper/White Zinc/Colour-Zinc | 8μm | 72h |
| PVF | 8μm+20μm | 1000-2000h |
| Military Green Zinc | 8μm | 180h |
| GALF | 8μm+20μm | 1000-2000h |
| Nylon | 8μm+40μm | 180h |

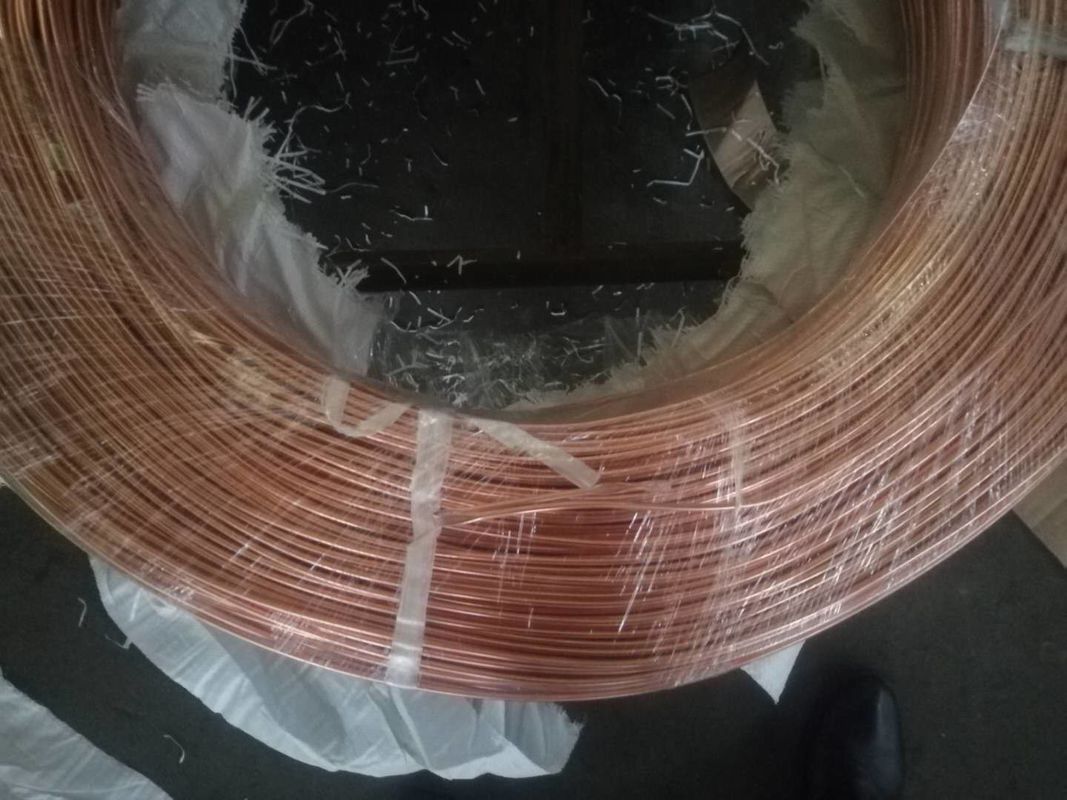

7. Packing: In coil, in wooden box with seaworthy packing
8. Application
1) Fluid carrying system for automobiles
2) Fluid carrying system for refrigerators
3) Wire condenser for chillers, showcase
4) Vending machine, ice machine etc.
