EN 10305-2 34MnB5 ERW Welded Cold Drawn Precision steel Tubes For Automotive Industry
Contact Person : Richard SHEN
Phone Number : +86-13736164628
WhatsApp : +8613736164628
| Minimum Order Quantity : | 1 tons | Packaging Details : | In bundles or wooden boxes |
|---|---|---|---|
| Delivery Time : | 5-8 weekdays | Payment Terms : | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability : | 50000 tons annually |
| Place of Origin: | China | Brand Name: | Torich |
|---|---|---|---|
| Certification: | TS16949 ISO 9001 | Model Number: | BS 6323-6 |
|
Detail Information |
|||
| Name: | Automotive Precision Steel Pipe | Feature: | High Precision |
|---|---|---|---|
| Standard: | BS 6323-6 | Material: | Carbon Steel |
| Length: | 12m Max | Application: | Door Shock Absorbers |
| High Light: | precision steel pipe,precision seamless pipe |
||
Product Description

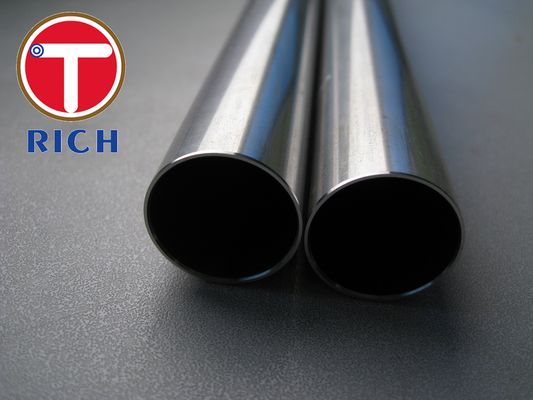

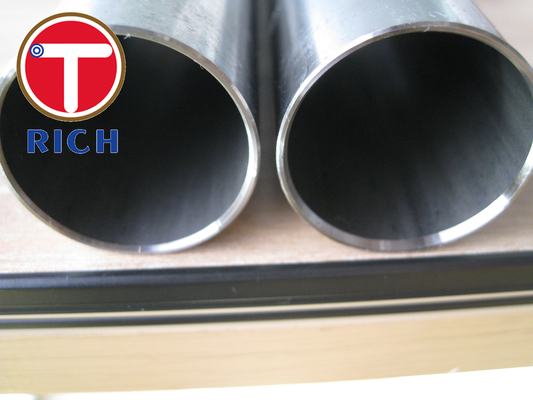

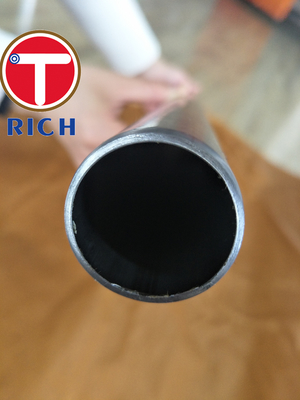

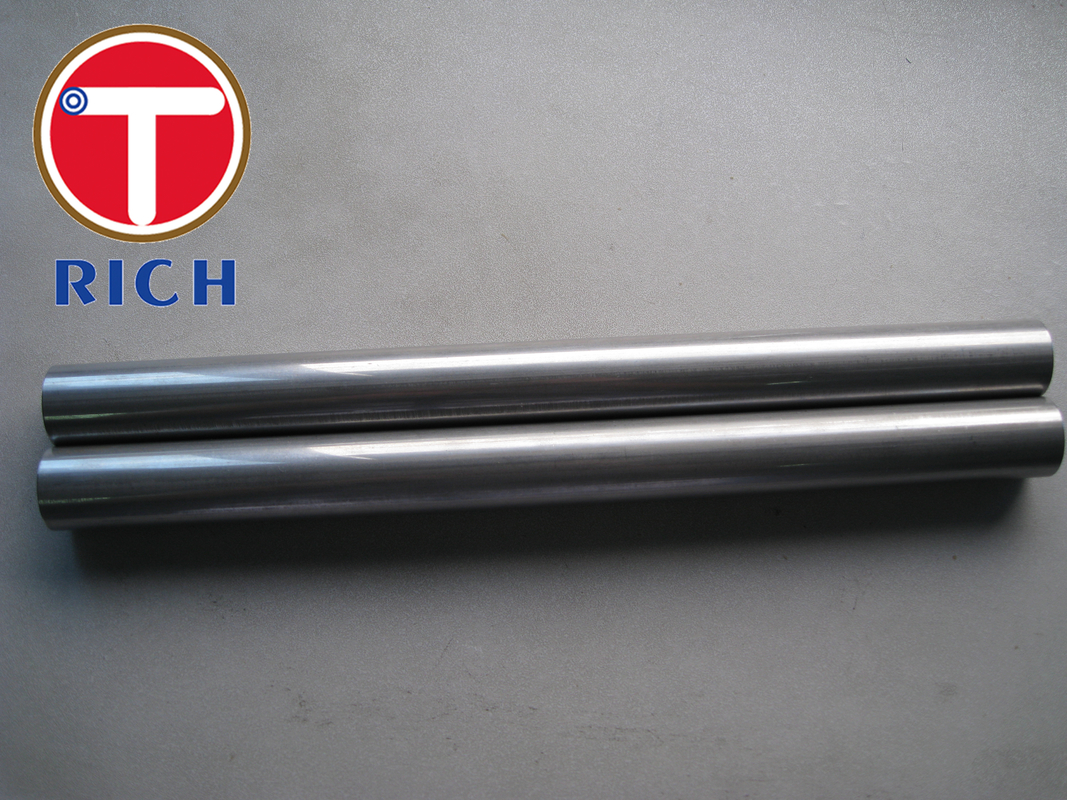

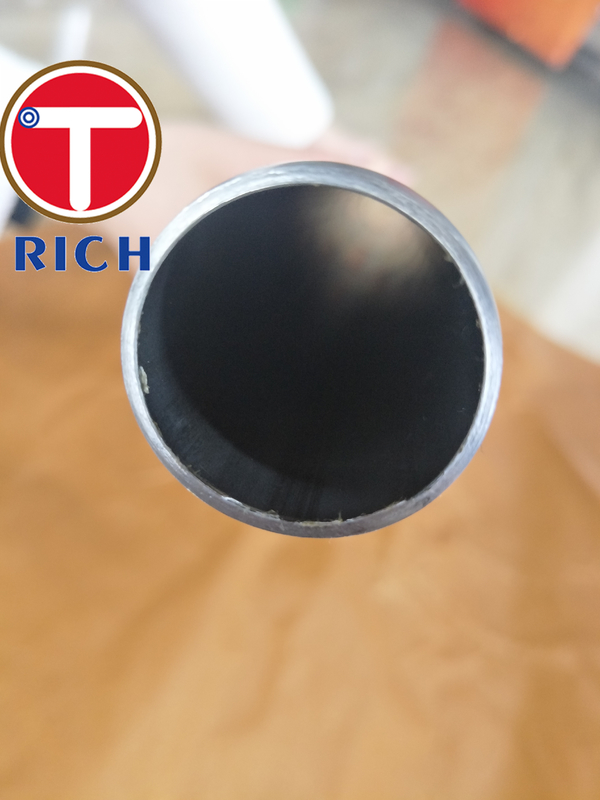

BS6323-6 CEW-1 Welded Precision Steel Tubes For Door Shock Absorbers
Torich who has over 20years’ production experiences on BS6323-6 Welded precision steel tubes.
High tolerance and good surface roughness mainly use for shock absorbers.
High precision cold draw and cold rolled steel tubes is Torich hot product,stable quality and reasonable price
is our advantage to win orders from our customers.
Quick detail:
Standard :BS6323-6 DIN 2393 ASTM-A513-t6 EN10305 ASTM A519 GOST 5005 -82 DIN2394 JIS-G3445 DIN2391 BS6323
GOST8734-75 IS3074 ASTM A513
Material:CEW 1020 St37.2
Delivery condition:BK,No heat treatment
Application of BS6323-6 Welded precision steel tubes :
Motorcycle front fork ,Motor outer shell,Automobile shock absorber cylinder,Dust cover,Automobile shock absorber
reservior,refrigaretion gas reservior
Production process : Material incoming inspection Surface treatment,Cold rolling Inspection,Rust preventive work,
Warehouse storage .
Decription of BS6323-6 Welded precision steel tubes :
Straightness ≤0.5mm/1m
Roundness ≤0.5
OD range:15-200mm WT range: 0.8-16mm
OD tolerance:+/-0.06mm WT:(+/-0.03)
ID surface:0.4μm
| Material | CEW1,CEW2,CEW3,CEW,CEW5 |
| Production method | The tubes shall be manufactered f'rom flat rolled strip,longitudinally welded continuously by the passage of an eletric current across the abutting edges without the addition of filler metal. |
| Delivery condition | BK,GBK,GZF,NBK.,NZF |
| Test | Flattening test,Drift expanding test,Leak tightness test |
Feature: High precision,NIce inner hole surface

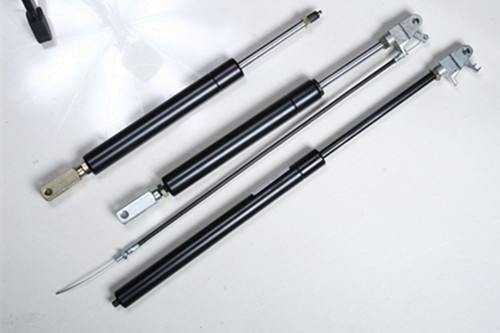

What does a shock absorber do?
Essentially, shock absorbers do two things. Apart from controlling the movement of springs and suspension, shock absorbers
also keep your tyres in contact with the ground at all times. At rest or in motion, the bottom surface of your tyres is the only
part of your vehicle in contact with the road.
Related to BS6323-6 standard:
Seamless and welded steel tubes for automobile ,mechanical and general engineering.
Part 6: Specific requirements for cold finished eletric resistance welded(including induction welde)steel tubes
This standad is published in eight separate parts as follows:
--Part1: General requirement.
--Part2: Specific requirements for hot finished welded steel tubes
--Part3:Specific requirements for hot finished seamless steel tubes
--Part4: Specific requirements for cold finished seamless steel tubes
--Part5:Specific requirements for eletric resistance welded(including induction welded)steel tubes
--Part6:Specific requirements for cold finished eletric resistance welded(including induction welded)steel tube
--Part7 : Specific requirements for submerged are welded steel tubes
--Part8:Specic requirements for longitudinally welded stainless steel tubes.
