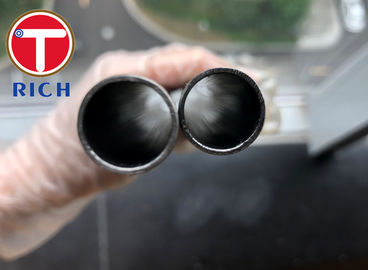

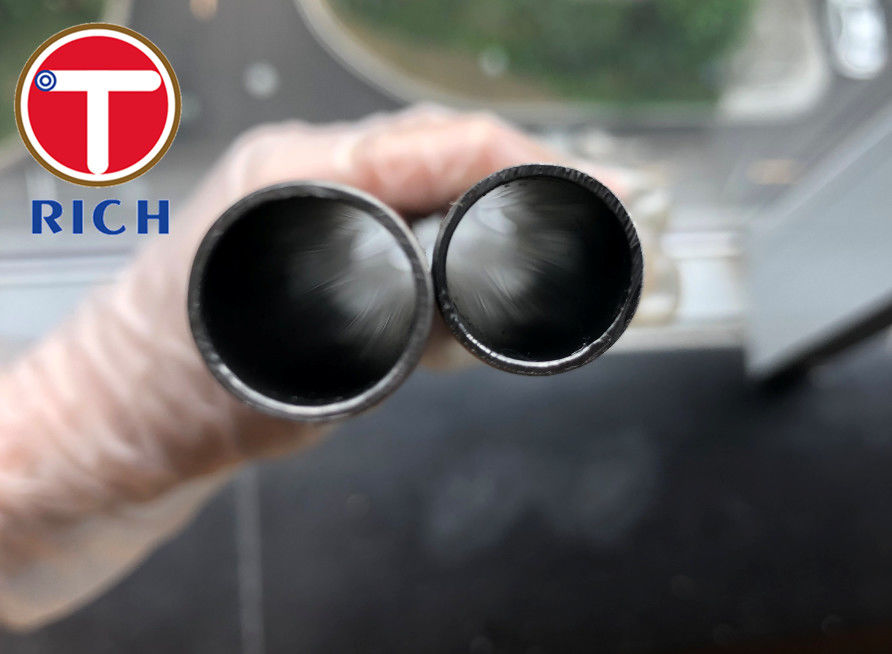

E235 E355 Welded Cold Drawn Steel Tube Gas Spring Cylinder Tube EN10305-6

China E235 E355 Welded Cold Drawn Steel Tube Gas Spring Cylinder Tube EN10305-6 supplier

Large Image :  E235 E355 Welded Cold Drawn Steel Tube Gas Spring Cylinder Tube EN10305-6

Product Details:

Place of Origin: ZHEJIANG, CHINA
Brand Name: TORICH
Certification: ISO9001, ISO14001, TS16949
Model Number: EN10305-6

Payment & Shipping Terms:

Minimum Order Quantity: 5Tons
Packaging Details: Tubes are packed in wooden boxes or hexagonal bundles.
Delivery Time: 30-45 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 2000Tons per Year
Contact Now
Detailed Product Description
Keyword: Gas Spring Cylinder Grade: E155, E195, E235, E275, E355
OD: 15 - 200 Mm WT: 0.8 - 16 Mm
Length: Max 12000mm Technique: Cold Drawn Welded
Application: Shock Absorber Gas Cylinder Delivery Condition: +C, +LC, +SC, +A, +N

TORICH EN10305-6 E235 E355 Welded Cold Drawn Gas Spring Cylinder Tube





Quick Detail:

Product name TORICH EN10305-6 E235 E355 Welded Cold Drawn Tubes Gas Spring Cylinder
Steel Grade E155, E195, E235, E275, E355
Size Range OD range:15-200mm WT range: 0.8-16mm
Tolerance OD: (+/-0.06mm) WT: (+/-0.03mm)
ID surface 0.4μm
Straightness ≤0.5mm/1m
Roundness ≤0.5mm
Regular specifications 23.2X1.6, 42X3, 25.4X0.9, 15x1, 19x1.5, 20x1, 20x1.5
Delivery Condition +C, +LC, +SC, +A, +N
Standard DIN 2393, ASTM-A513-t6, EN10305, ASTM A519, GOST 5005 -82, DIN2394, JIS-G3445, DIN2391 BS6323, GOST8734-75, IS3074, ASTM A513
Application Motorcycle front fork, Motor outer shell, Automobile shock absorber cylinder, Dust cover, Automobile shock absorber reservior, refrigaretion gas reservior
Production process Material incoming inspection Surface treatment,Cold rolling Inspection,Rust preventive work,Warehouse storage

Standard Reference:
GB/T8713 <Precision ID seamless tubes for hydropneumatic purposes>
GB/T3639 <Cold-rolled and cold drawn precision seamless steel tubes>
EN10305-2 <Welded cold drawn tubes>
EN10305-4 <Seamless cold drawn tubes for hydraulic and pneumatic power systems>
EN10305-6 <Welded cold drawn tubes for hydraulic and pneumatic power systems>
JIS-G3445 <Carbon steel tubes for Machine Structural Purpose>
DIN2393 <Welded precision steel tubes>
Application:
E235 E355 Welded Cold Drawn Steel Tube Gas Spring Cylinder Tube EN10305-6
E235 E355 Welded Cold Drawn Steel Tube Gas Spring Cylinder Tube EN10305-6
Our Certifications:
E235 E355 Welded Cold Drawn Steel Tube Gas Spring Cylinder Tube EN10305-6

PRODUCTION & QUALITY CONTROL


1. Incoming Raw Material Inspection
2. Raw Material Segregation to avoid steel grade mix-up
3. Heating and Hammering End for Cold Drawing
4. Cold Drawing and Cold Rolling, on line inspection
5. Heat Treatment, +A, +SRA, +LC, +N, Q+T
6. Straightening-Cutting to specified length-Finished Measuring Inspection
7. Machanical Testing in own labs with Tensile Strength, Yield Strength, Elongation, Hardness, Impact, Mictrostruture etc
8. Packing and Stocking.

100% of our steel tubes are dimensionally checked
100% of our steel tubes are visually checked to assure they have a perfect surface condition and no surface defects.
100% eddy current test and ultrosonic test to eliminate longitudinal and transversal defects.



FAQ:

Q: Are you trading company or manufacturer ?

A: A professional steel pipes materials inventor, manufacturer and solution provider

Q: How long is your delivery time?

A: Generally it is 7-14 days if the goods are in stock. or it is 30-60 days if the goods are not in stock, it is according to quantity.

Q: Do you provide samples ? is it free or extra ?

A: Yes, we could offer the sample for free charge but need pay the cost of freight.

Q: What is your terms of payment ?

A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us
