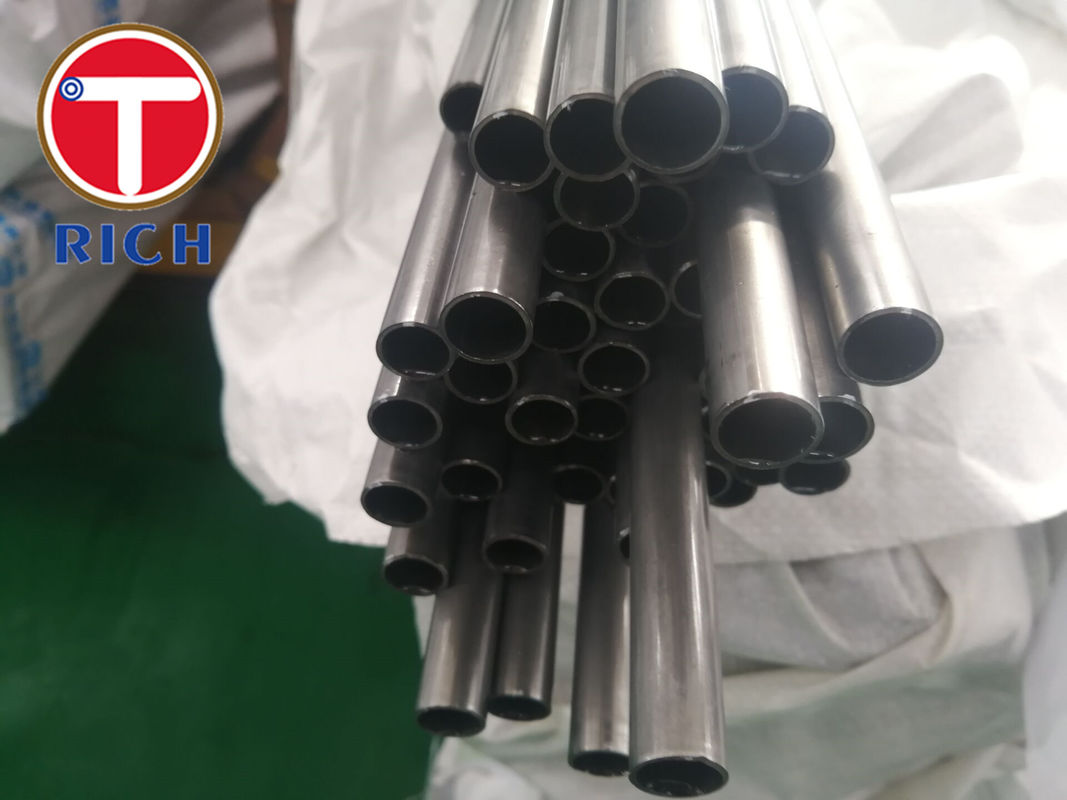

Precision Cold Rolled Steel Pipe Ck45 S45c 25 - 300mm Outer Diameter For Shock Absorber

Product Description

High Precision Ck45 S45c Shock Absorber Cold Rolled Precision Steel Pipe And Tube

1. Product Name: high precision CK45 S45C shock absorber cold rolled pipe and tube
2. Outer Diameter: 30-300mm
3. Wall Thickness: 2-30mm
4. Material Grade: 20# 45# 16Mn 25Mn 27SiMn E355 ST52 CK45 STKM13A STKM13C
5. Package: Standard export packing or as client’s request
6. Delivery Condition: BK/BKW/BKS/GBK/NBK
7. Delivery Time: Within 20-30 days after receiving payment or as client’s request
8. Trade Terms: FOB Yantai, Qingdao, or as client’s request
9. Payment Terms: T/T or L/C or as client’s request
10. Supply Ability: 500 metric tons/per month
11. What we can provide are seamless pipe, carbon steel pipe, cold drawn pipe, cold rolled pipe, honed tube, hydraulic cylinder tube, and so on.
seamless tube, carbon tube, cold drawn steel tube, cold rolled steel tube, honed steel pipe, hydraulic tube, cylinder tube, etc.

1. Cold drawn pipe, cold rolled pipe

After pickling, phosphating, our seamless pipe can do deep work such as cold drawn, or cold rolled.
This process can change the size of OD, ID, WT and the mechanical property of the carbon tube.
Roughness: ra1.6-3.2
Straightness: 1:1000mm

2. Honed tube,SRB tube

A: IDHoned

Utilize an abrasive stone,which turns while being moved in and out of the work piece.

The honing process makes :
1) Smooth surface finishes inside bores
2) Hold precise tolerances on bore diameters
ID H8 H9 H10
ID roughness 0.4-0.8μm

B: ID Skiving and roller burnishing

Two thin chips are cut at high feed rate while the tool passes through the workpiece,
producing mirror inner,with a bore precise tolerance .
ID H8 H9 H10
ID roughness 0.2-0.8μm
ID max 250mm
