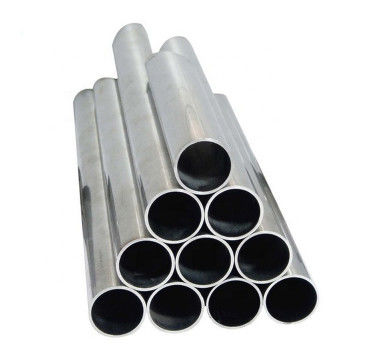

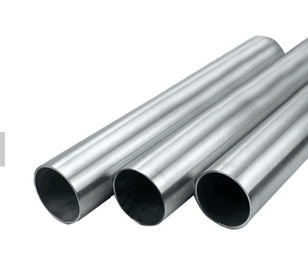

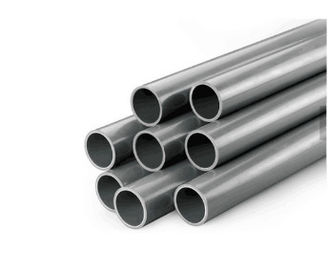

Welded Sanitary Stainless Steel Tube Food Grade With ASTM A270 Standard

Minimum Order Quantity : 3tons Price : Negotiable
Packaging Details : In bundles with seaworthy packing, in wooden box Delivery Time : 45-60 days
Payment Terms : T/T, L/C, D/A, D/P, Western Union, MoneyGram Supply Ability : 60000 tons/year
Place of Origin: CHINA Brand Name: TORICH
Certification: ISO9001, TS16949 Model Number: ASTM A270

Detail Information

Product Name: Welded Stainless Steel Sanitary Tube Standard: ASTM A270
Technique: Welded Section Shape: Round
Certification: ISO9001, TS16949 Alloy Or Not: Stainless
Secondary Or Not: Non-secondary Special Tube: Food Grade Stainless Steel Pipe
Surface: Satin / Hairline Hea Treatment: Yes
High Light:

stainless steel round tube

,

stainless tube steel

Product Description

ASTM A270 304 316 316L Round/Square/Elliptical Welded Stainless Steel Sanitary Tube





Application: Mainly used in beer, beverages, diary, bio-pharmaceuticals, daily, cosmetics, concentrated drying equipment industries.



Size Range:
OD:12-254mm

WT: 1-12mm

Length: 6000mm or per customer’s request



Material:

Grade: stainless steel 304, 316

Chemical Properties
  C Si Mn P S Cr N Mo
304 ≤0.08 ≤1.00 ≤2.00 ≤0.045 ≤0.03 18.0~20.0 8.0-10.5 -
316 ≤0.08 ≤1.00 ≤2.00 ≤0.045 ≤0.03 16.0~18.0 10.0-14.0 2.0-3.0



Manufacture:

Pipes shall be made by the seamless process.



Mechanical Properties:

  Mechanical Properties:
  Tensile Strength (Mpa) Yield Strength (Mpa) Hv Extension %
304 ≥ 520 ≥ 205 <200 ≥35
316 ≥ 520 ≥ 205 <200 ≥35



Welded Sanitary Stainless Steel Tube

Surface:

180G, 320G, 400G Satin / Hairline



Packing:

With strong wood structure box packing by containers loading and shipping.

Or as customer's requirement.


Test:

  • PMI test
  • Hydraulic test
  • 100%Inner cleaned by sponge
  • 100%Dimension test
  • 100%Surface test

Sanitary Seamless Stainless Steel TubeWelded Sanitary Stainless Steel Tube Food Grade With ASTM A270 Standard 2
