Electric Resistance Welded Steel Tube ERW Steel Tubes For Heavy Truck Exhaust System

Place of Origin: Zhejiang,China
Brand Name: TORICH
Certification: ISO 9001 ISO 14001 TS16949
Model Number: ASTM A513
Product Details
Place of Origin:
Zhejiang,China
Brand Name:
TORICH
Certification:
ISO 9001 ISO 14001 TS16949
Model Number:
ASTM A513
Minimum Order Quantity:
10 tons
Price:
900-1200 usd per ton
Standard Packaging:
OD127mm*WT1.5mm Aluminized Welded Steel Tubes,steel grade SPCC/SPHC from TORICH,packing in standard marine package
Delivery Time:
20-45 days
Payment Terms:
T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability:
50000 tons per year
Specifications
Product name:
ERW Steel Tubes With Erased Seam For Heavy Truck Exhaust System
Keyword:
127*1.5 Welded Steel Tubes
Application:
For Mechinery,mechanical Engineer
Type:
ERW/HFW
Shape:
Round
Material:
1010,1020,1045,SPHC,SPCC,4130
Length:
Max12000mm
OD:
5-420mm
WT:
0.5-50mm
Brand:
TORICH
Highlight:

welded steel pipe

,

electric resistance welded steel tube

Product Description

OD127mm*WT1.5mm ERW Steel Tubes with Erased Seam for Heavy Truck Exhaust System



ASTM A513 Electric-Resistance-Welded Carbon and Alloy Steel Mechanical Tubing



Size : O.D.:6-350mm W.T.:1-12.5mm L:max12000mm

Grade: 1008,1010, 1020, 1026

Production: ERW + DOM

Steel Grade and Chemical Compositions:
Steel Grade C Mn P S Si Cr Mo
max   max max max min
1008 0.10 0.5 0.035 0.035
1010 0.08-0.13 0.30-0.60 0.035 0.035
1018 0.14-0.20 0.30-0.60 0.035 0.035
1020 0.17-0.23 0.30-0.60 0.035 0.035
1026 0.22-0.28 0.60-0.90 0.035 0.035
1035 0.31-0.38 0.60-0.90 0.035 0.035
4130 0.28-0.33 0.40-0.60 0.035 0.035 0.15-0.35 0.80-1.10 0.08-0.25
4140 0.38-0.43 0.75-1.00 0.035 0.035 0.15-0.35 0.80-1.10 0.15-0.25

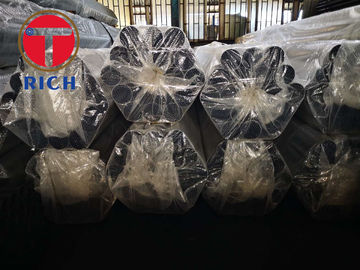

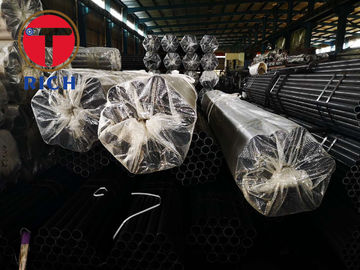

Packing:

In Hexagonal Bundles, with anti corrosion oil protection, with seaworthy packing

Deliver condition:

1. A.W.H.R. "as welded" from hot-rolled steel

2. A.W.C.R. "as welded" from cold-rolled steel

3. S.D.C.R. "sink-drawn", cold-rolled steel

5. M.D. mandrel drawn

6. S.S.I.D. special smooth inside diameter

Please specify the delivery condition when sending the enquiry!

Thermal condition:

1. No final thermal treatment

2. Stress relieved

3. Annealed

4. Normalized

Applications: for Machinery, Mechanical Engineer, Automotive Parts,Agricultural.

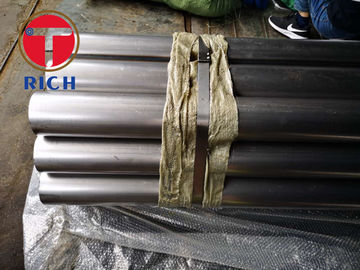

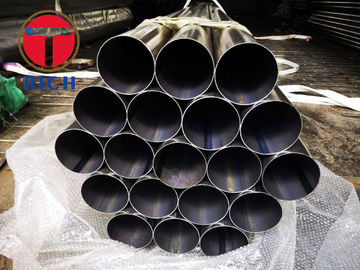

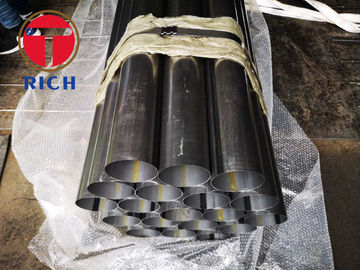

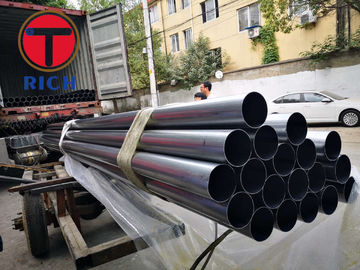

Product pictures

Electric Resistance Welded Steel Tube ERW Steel Tubes For Heavy Truck Exhaust System 0

Electric Resistance Welded Steel Tube ERW Steel Tubes For Heavy Truck Exhaust System 1

OD127mm*WT1.5mm ERW Steel Tubes with Erased Seam for Heavy Truck Exhaust System
