Carbon Steel 1010 1020 Special Steel Pipe Triangle Lemon Steel Tube For PTO Agricultural Drive Shaft

China Carbon Steel 1010 1020 Special Steel Pipe Triangle Lemon Steel Tube For PTO Agricultural Drive Shaft supplier
Carbon Steel 1010 1020 Special Steel Pipe Triangle Lemon Steel Tube For PTO Agricultural Drive Shaft supplier Carbon Steel 1010 1020 Special Steel Pipe Triangle Lemon Steel Tube For PTO Agricultural Drive Shaft supplier Carbon Steel 1010 1020 Special Steel Pipe Triangle Lemon Steel Tube For PTO Agricultural Drive Shaft supplier Carbon Steel 1010 1020 Special Steel Pipe Triangle Lemon Steel Tube For PTO Agricultural Drive Shaft supplier

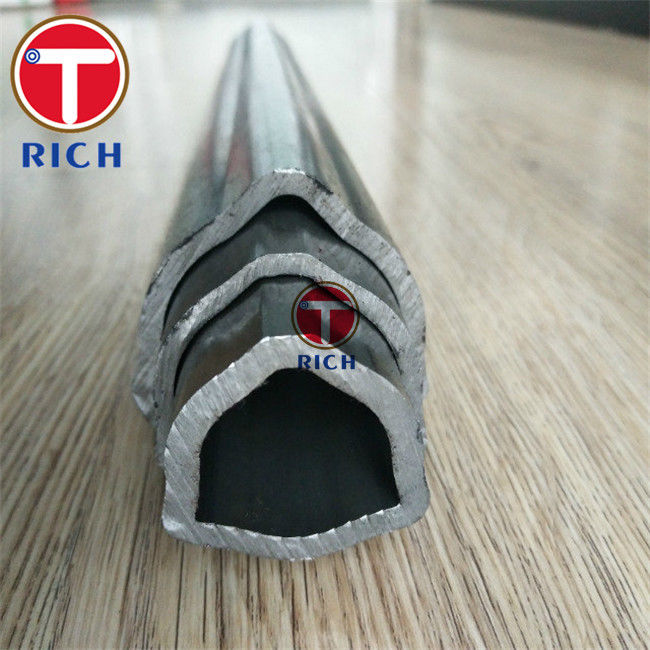

Large Image :  Carbon Steel 1010 1020 Special Steel Pipe Triangle Lemon Steel Tube For PTO Agricultural Drive Shaft

Product Details:

Place of Origin: China
Brand Name: Torich
Certification: ISO 9001 ISO14001 TS16949
Model Number: ST52 , E235 , E355 etc

Payment & Shipping Terms:

Minimum Order Quantity: 1 tons
Price: negotiable
Packaging Details: In plywood case, In wooden box.
Delivery Time: 30-45 days after order confirmed
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 20000 Ton per Year
Contact Now
Detailed Product Description
Characteristic: Triangle Steel Tube Material: ST52 , E235 , 1020 Etc
Production Method: Seamless Cold Finished Package: In Bundles Or As Per Requests
End Protector: Plain / Beveled Length: 2-12m
Type: Carbon Steel Lemon Tube MTC: EN10204.3.1

Products Description:

for PTO Agricultural Drive Shaft 1010 1020 Lemon Pipe Type Triangle Steel Tube



Chemical Compositions:

Standard Steel Grade C Si Mn P S
EN 10305-1 E215 ≤0.10 ≤0.05 ≤0.70 ≤0.025 ≤0.025
E235 ≤0.17 ≤0.35 ≤1.20 ≤0.025 ≤0.025
E355 ≤0.22 ≤0.55 ≤1.60 ≤0.025 ≤0.025
DIN 2391 St35 ≤0.17 ≤0.35 ≥0.40 ≤0.025 ≤0.025
St37.4 ≤0.17 ≤0.35 ≥0.40 ≤0.025 ≤0.025
St45 ≤0.21 ≤0.35 ≥0.40 ≤0.025 ≤0.025
St52 ≤0.22 ≤0.55 ≤1.60 ≤0.025 ≤0.025
GB/T 3639 10 0.07-0.13 0.17-0.37 0.35-0.65 ≤0.030 ≤0.030
20 0.17-0.23 0.17-0.37 0.35-0.65 ≤0.030 ≤0.030
35 0.32-0.39 0.17-0.37 0.50-0.80 ≤0.030 ≤0.030
45 0.42-0.50 0.17-0.37 0.50-0.80 ≤0.030 ≤0.030
Q345B ≤0.20 ≤0.50 ≤1.70 ≤0.030 ≤0.030



Size:

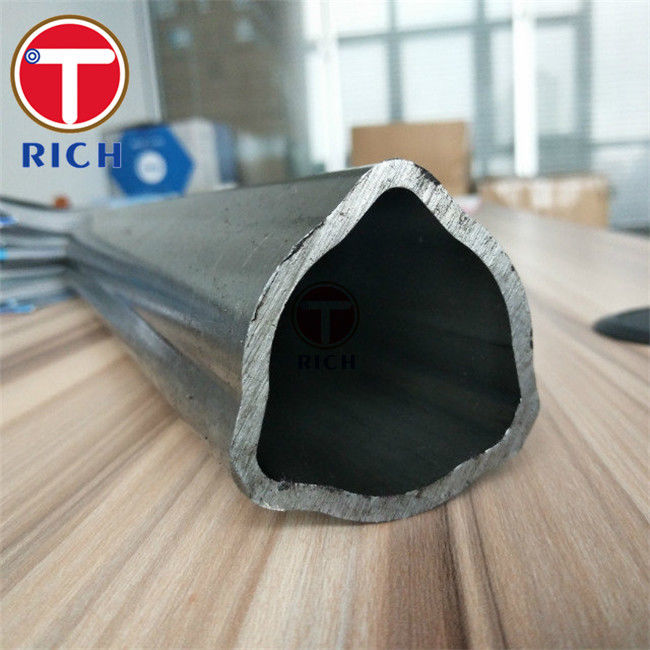

Carbon Steel 1010 1020 Special Steel Pipe Triangle Lemon Steel Tube For PTO Agricultural Drive Shaft



Triangle Steel Tube Outer (mm) Inner (mm)
H S H S
1S 32.4 2.5 26.6 3.5
2S 36.1 3.4 29 4
4S 43.4 3.3 36.1 4.4
5S 51.3 2.9 44.7 4
6S 53.6 3.8 44.7 4
7S 53.6 3.8 44.7 5.5
8S 62.7 4 53.6 4.5
9S 62.7 4 53.6 5.5



Applications: PTO Agricultural Drive Shaft Tube



Product information:

Material: SAE1010 , SAE1020 , SAE1035 , SAE1045 , ST37.0 , ST44 , ST52 , E235 , E355
Grade: BS, JIS, GB, DIN, ASTM, API,
Shape: Lemon
Wall thickness: 0.5-50mm
Length: up to 12m, or according to customer's requirement.
Outer diameter: Round: 5-420mm
  Diameter and wall thickness could be at customer's request.

Technology: Cold Draw/Cold Rolled
Surface treatment: painted,galvanized,or oiled according to customer's requirement
Application: Lighting,furniture,medical equipments
Place of origin: China
Application Mechanical structure, Carbon pressure machinery etc.



Production Steel Tube:

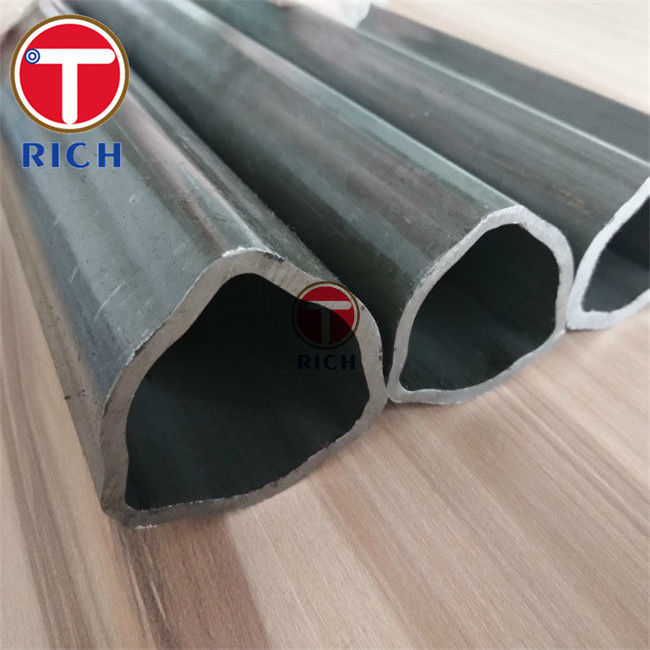

Carbon Steel 1010 1020 Special Steel Pipe Triangle Lemon Steel Tube For PTO Agricultural Drive Shaft



Eddy Current Test and Ultrasonic Test:

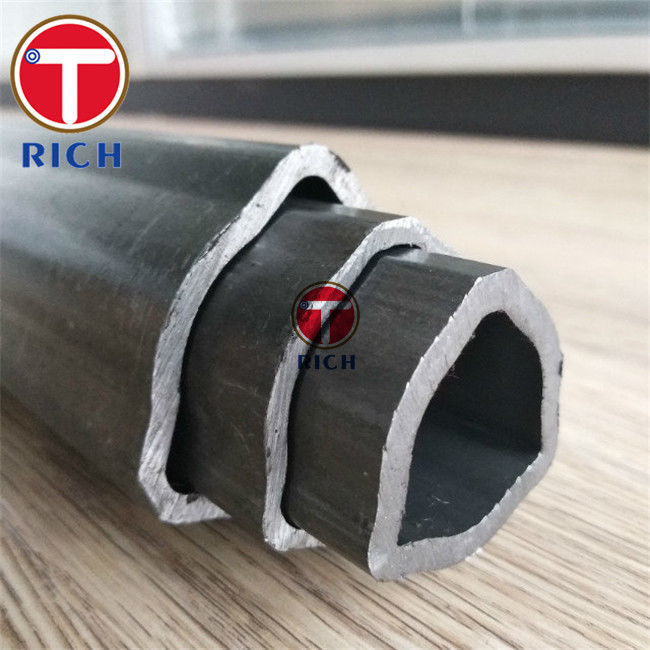

Carbon Steel 1010 1020 Special Steel Pipe Triangle Lemon Steel Tube For PTO Agricultural Drive Shaft



Packing:

Carbon Steel 1010 1020 Special Steel Pipe Triangle Lemon Steel Tube For PTO Agricultural Drive Shaft
