DIN 2393 St37-2 Welded Steel Tube Precision Cold Drawn Welded Steel Pipe For Sleeve
Contact Person : Richard SHEN
Phone Number : +86-13736164628
WhatsApp : +8613736164628
| Minimum Order Quantity : | 1 Ton | Price : | USD 1000-2000 / Ton |
|---|---|---|---|
| Packaging Details : | TORICH Double Wall Zinc Coating Galvanized Bundy Tube For Automobile Brake packing in antirust protection, In hexagon bundles | Delivery Time : | 30-45 Days |
| Payment Terms : | L/C, D/A, D/P, T/T, Western Union, MoneyGram | Supply Ability : | 60000 Ton/year |
| Place of Origin: | China | Certification: | ISO API |
|---|---|---|---|
| Model Number: | GB 11258-89 |
|
Detail Information |
|||
| Brand Name: | TORICH | Product Name: | TORICH Double Wall Galvanized Bundy Tube WithZinc Coating For Automobile Brake |
|---|---|---|---|
| Keywords: | Bundy Tube | Type: | Welder ERW |
| Material: | Q195/Q235/Q345 | Surface: | Galvanized Coated |
| Shape: | Round Shape | Usage: | Automobile Brake |
| Payment Term: | T/T L/C | Delivery Time: | 15-30days |
| High Light: | welded steel pipe,electric resistance welded steel tube |
||
Product Description
1. Standard
GM123M, GM124M, TS7600G, GB 11258-89
2. Steel Grade/Steel Material/Steel Number:
Low carbon steel, such as SPCCBLDBLC
3. Raw Material:
Cold rolled low carbon steel strip
4. Characteristic:
Good Surface Quality, Uniform coating
No coating burr
Stable quality
Excellent corrosion resistance
TORICH QUALITY ASSURANCE
5. Application:
Brake tube on automobile
6. Specifications:
| OD(mm) | OD tolerance(mm) | WT(mm) | WT tolerance(mm) | Coil length |
|
4.76 (3/16”) |
+/-0.10 or as per customer’s requirement | 0.7 | +/-0.07 | 600-1000m/coil |
| 6 | ||||
| 6.35 | ||||
|
8 (5/16”) |
||||
|
9.5 (3/8”) |
||||
| 10 | ||||
|
11.1 (7/16”) |
||||
| 12 | ||||
|
12.7 (1/2”) |
||||
| 8 | 1 | +/-0.1 | ||
| 10 | ||||
| 12 |
7. Mechanical properties:
| Tensile Stregth (min) | 270MPa |
| Yield Stregth (min) | 180 MPa |
| Elongation (min) | 14% |
8. Coating:
| Type | Thickness | Salt spray test time |
| White zinc coating | 8μm | 72h |
| Color zinc coating | 8μm | 72h |
| Olive green coating | 8μm | 180h |
| PVF coating | white zinc 8μm + PVF 20μm | 1000h |
| Nylon coating | white zinc 8μm + nylon 40μm | 10000h |

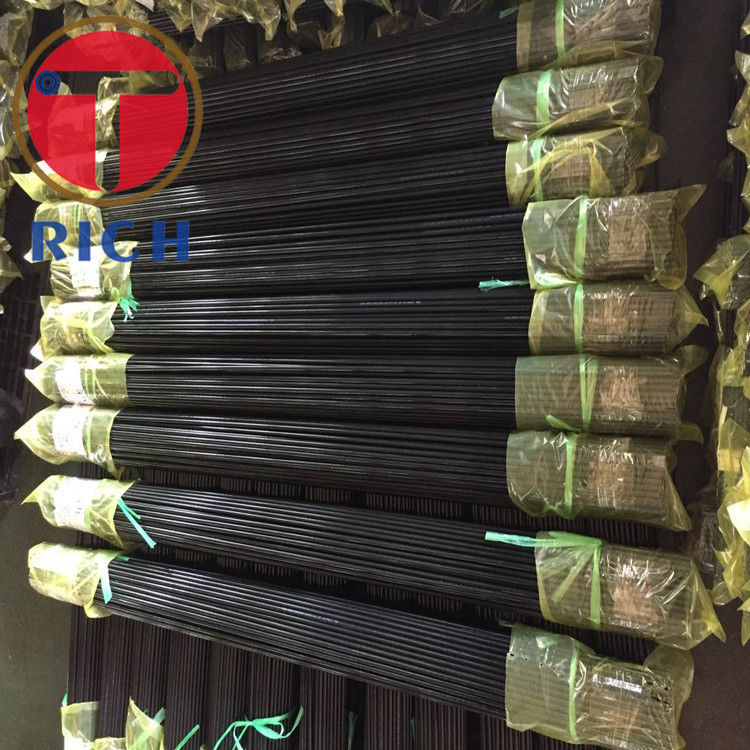

9. Packing: In coil, in wooden box with seaworthy packing
