Cold Drawn Welded Drawn Over Mandrel Tube ASTM A513 1026 For Hydraulic Cylinder

China Cold Drawn Welded Drawn Over Mandrel Tube ASTM A513 1026 For Hydraulic Cylinder supplier
Cold Drawn Welded Drawn Over Mandrel Tube ASTM A513 1026 For Hydraulic Cylinder supplier Cold Drawn Welded Drawn Over Mandrel Tube ASTM A513 1026 For Hydraulic Cylinder supplier Cold Drawn Welded Drawn Over Mandrel Tube ASTM A513 1026 For Hydraulic Cylinder supplier Cold Drawn Welded Drawn Over Mandrel Tube ASTM A513 1026 For Hydraulic Cylinder supplier

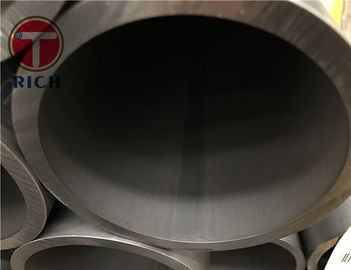

Large Image :  Cold Drawn Welded Drawn Over Mandrel Tube ASTM A513 1026 For Hydraulic Cylinder

Product Details:

Place of Origin: China
Brand Name: Torich
Certification: ISO 9001 ISO14001 TS16949
Model Number: ASTM A513

Payment & Shipping Terms:

Minimum Order Quantity: 5 tons
Price: 900-1200 USD/ton
Packaging Details: In plywood case, In wooden box.
Delivery Time: 30-45 days after order confirmed
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 60000 Ton per Year
Contact Now
Detailed Product Description
Characteristic: DOM Steel Pipe Material: 1010, 1020 Etc
Production Method: Seamless Cold/hot Finished Package: In Bundles Or As Per Requests
End Protector: Plain / Beveled Length: 2-12m
Type: Cold Drawn Welded CDW Pipe MTC: EN10204.3.1

Products Description:

4.7mm 6.6mm 0.185in 0.26in Precision SAE 1020 ASTM A513 DOM tubing



DOM Steel Pipe



Steel Grade/Steel Material:

SAE1020 1020 Q235B etc carbon steel



Delivery Condition:

BK, BKW, BKS, GBK, NBK



Size Range:

OD: 4.0-420mm

WT:0.5-50mm

Length: max 12000mm

Our regularproduction size

125mm 139mm OD



Characteristic:

Good concentricity

Good OD and ID tolerance

High Precision

Stable quality

Smooth Roughness

TORICH QUALITY ASSURANCE

Hydraulic cylinder using 1026 DOM cold drawn welded CDW pipe



Production Processs:

ERW tube and Cold Drawing or Cold Rolling Production





Steel grade Minimum values for the delivery conditionab
+CC +LCC +SR +Ad +N
steel name steel number Rm MPa A % Rm MPa A % Rm Mpa ReH MPa A % Rm MPa A % Rm MPa ReHC MPa A %
E155 1.0033 400 6 350 10 350 245 18 260 28 270 to 410 155 28
E195 1.0034 420 6 370 10 370 260 18 290 28 300 to 440 195 28
E235 1.0908 490 6 440 10 440 325 14 315 25 340 to 480 235 25
E275 1.0225 560 5 510 8 510 375 12 390 21 410 to 550 275 21
E355 1.0580 640 4 590 6 590 435 10 450 22 490 to 630 355 22
a. Rm: tensile strength ; ReH: upper yield strength (but see 11.1); A: elongation. For symbols for the delivery condition see Table 1.
b. 1 Mpa = 1 N/mm2
c. Depending on the degree of cold work in the finishing pass the yield strength may nearly be as high as the tensile strengths. For calculation purposes the following relations are recommended:
—— For delivery condition +C: ReH ≥0.8 Rm
—— For delivery condition +LC: ReH ≥0.7 Rm
d. For calculation purposes the following relations is recommended: ReH ≥0.5 Rm
e. For tubes with outside diameter ≤ 30 mm and wall thickness≤ 3mm, the ReH minimum values are 10 Mpa lower than the values given in this Table.






Production Steel Tube:

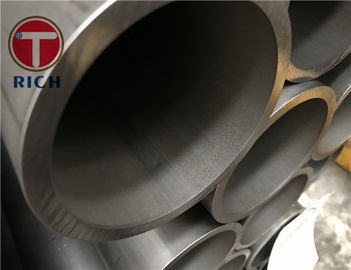

Cold Drawn Welded Drawn Over Mandrel Tube ASTM A513 1026 For Hydraulic Cylinder



Cold Drawn Welded Drawn Over Mandrel Tube ASTM A513 1026 For Hydraulic Cylinder





Eddy Current Test and Ultrasonic Test:

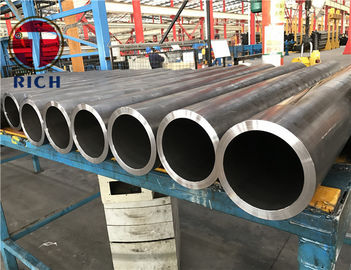

Cold Drawn Welded Drawn Over Mandrel Tube ASTM A513 1026 For Hydraulic Cylinder



Packing:

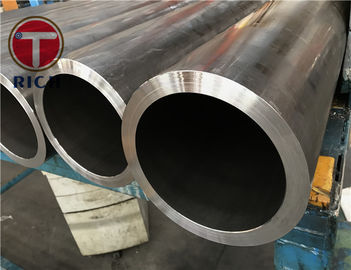

Cold Drawn Welded Drawn Over Mandrel Tube ASTM A513 1026 For Hydraulic Cylinder
