Medical Micro 201 304 316 Stainless Steel Capillary Tube Welded Polished Surface

China Medical Micro 201 304 316 Stainless Steel Capillary Tube Welded Polished Surface supplier
Medical Micro 201 304 316 Stainless Steel Capillary Tube Welded Polished Surface supplier Medical Micro 201 304 316 Stainless Steel Capillary Tube Welded Polished Surface supplier Medical Micro 201 304 316 Stainless Steel Capillary Tube Welded Polished Surface supplier Medical Micro 201 304 316 Stainless Steel Capillary Tube Welded Polished Surface supplier Medical Micro 201 304 316 Stainless Steel Capillary Tube Welded Polished Surface supplier Medical Micro 201 304 316 Stainless Steel Capillary Tube Welded Polished Surface supplier

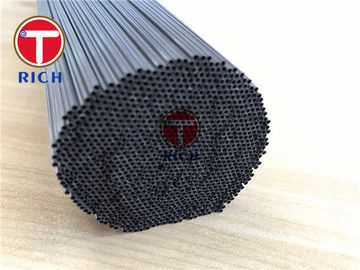

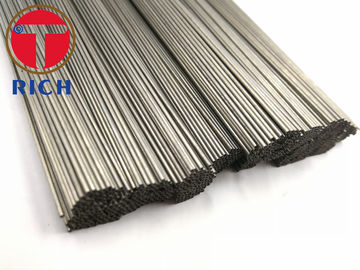

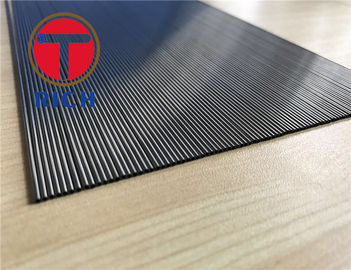

Large Image :  Medical Micro 201 304 316 Stainless Steel Capillary Tube Welded Polished Surface

Product Details:

Place of Origin: CHINA
Brand Name: TORICH
Certification: ISO9001, TS16949
Model Number: SS201 304 316

Payment & Shipping Terms:

Minimum Order Quantity: 100kgs
Price: negotiable
Packaging Details: in bundles with seaworthy packing
Delivery Time: 45-60 days
Payment Terms: T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability: 60000ton/year
Contact Now
Detailed Product Description
Product Name: Stainless Steel Capillary Tube Standard: SS316
Technique: Welded Section Shape: Round
Certification: ISO9001, TS16949 Alloy Or Not: No
Secondary Or Not: Non-secondary Special Tube: Stainless Steel Capillary Tube
Surface: Polished Shipment: Ocean/ Air



10x0.1 Medical Use Micro 201 304 316 Stainless Steel Capillary Tube



Name Stainless Steel tube
Standard ASTM A213,ASTM A312,ASTM A789,ASTM A790
Material Grade 201/202/304/316/S31803/S32750
Outer Diameter 0.1mm--219.1mm
Thickness 0.05mm - 20mm
Length ≤12000mm or as per customer request
Tolerance a) Outer Diameter: +/- 0.2mm
b) Thickness: +/- 10% OR as customer request
c) Length: +/- 10mm
Surface Satin / Hairline :180#, 320#
Polish : 400# ,600# ,800# or Mirror surface
Pickling
Application Decoration ,( Processed into railings, handrails, doors and Windows ),medical,industry,etc
Packaing Plastic bag/woven packing(please send details packing to us if you have other requirements)





Chemical composition Element 201 202 304 316 S31803 S32750
C ≤0.15 ≤0.15 ≤0.08 ≤0.08 ≤0.030 ≤0.030
Si ≤1.00 ≤1.00 ≤1.00 ≤1.00 ≤1.00 ≤0.80
Mn 5.5-7.5 7.5-10.0 ≤2.00 ≤2.00 ≤2.00 ≤1.20
P ≤0.060 ≤0.060 ≤0.045 ≤0.045 ≤0.030 ≤0.035
S ≤0.030 ≤0.030 ≤0.030 ≤0.030 ≤0.020 ≤0.020
Cr 16-18 17-19 18-20 16-18 21-23 21-23
Ni 3.5-5.5 4.0-6.0 42958 43022 4.5-6.5 6.0-8.0
Mo       2.0-3.0 2.5-3.5 3.0-5.0
N ≤0.25 ≤0.25     0.08-0.2 0.24-0.32
Cu           ≤0.50
Mechanical properties Material Item 201 202 304 316 S31803 S32750
Tensile Strength (MPa) ≥655 ≥620 ≥515 ≥515 ≥620 ≥800
Yield Strength (MPa) ≥260 ≥310 ≥205 ≥205 ≥450 ≥550
Elongation (%) ≥35 ≥35 ≥35 ≥35 ≥25 ≥15
Hardness (HV) ≤230 ≤230 ≤200 ≤200 ≤303 ≤323



micro stainless steel capillary tube 201 304 316
