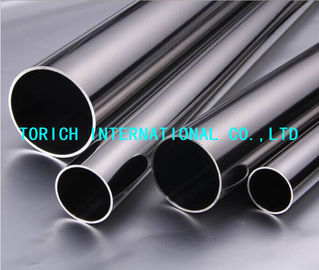

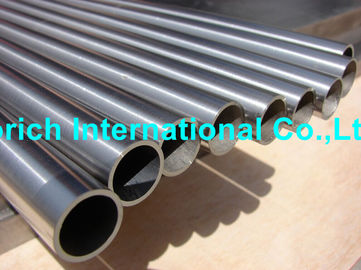

Feedwater Heater Annealed Stainless Steel Tubing Seamless Welded Austenitic ASTM A688
Basic Properties
Place of Origin:
China
Brand Name:
TORICH
Certification:
ISO9001
Model Number:
ASTM A688
Trading Properties
Minimum Order Quantity:
1 Ton
Price:
USD 1500-2000 per Ton
Payment Terms:
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:
60000 Tons per month
Product Summary
ASTM A688 Seamless and Welded Austenitic Stainless Steel Feedwater Heater Tube Size range: O.D.: 4.0-305mm W.T.:1-50mm L: according to customer requirement Chemical Requirement Grade: … TPXM-19 TPXM-10 TPXM-11 TPXM-29 TP304 TP304L TP304H UNS S20400 S20910 S20900 S21904 S24000 S30400 S30403 S30409 C, ...
Product Details
Highlight:
bright annealed stainless steel tubing
,annealed stainless steel tubing
Product Name:
ASTM A688 Seamless And Welded Austenitic Stainless Steel Feedwater Heater Tube
Keyword:
Heater Tube
Type:
Stainless Steel Tube
Shape:
Round
Material:
Stainless
Brand:
TORICH
Surface:
Bright
Payment:
T/T L/C
Product Description
ASTM A688 Seamless and Welded Austenitic Stainless Steel Feedwater Heater Tube
Size range: O.D.: 4.0-305mm W.T.:1-50mm L: according to customer requirement
| Chemical Requirement | ||||||||
| Grade: | … | TPXM-19 | TPXM-10 | TPXM-11 | TPXM-29 | TP304 | TP304L | TP304H |
| UNS | S20400 | S20910 | S20900 | S21904 | S24000 | S30400 | S30403 | S30409 |
| C, max | 0.03 | 0.060 | 0.080 | 0.04 | 0.08 | 0.08 | 0.035 | 0.040-0.10 |
| Mn, max | 7.0-9.0 | 4.0-6.0 | 8.0-10.0 | 8.0-10.0 | 11.5-14.5 | 2.00 | 2.00 | 2.00 |
| P, max | 0.045 | 0.045 | 0.045 | 0.045 | 0.060 | 0.045 | 0.045 | 0.045 |
| S, max | 0.030 | 0.030 | 0.030 | 0.030 | 0.030 | 0.030 | 0.030 | 0.030 |
| Si, max | 1.00 | 1.00 | 1.00 | 1.00 | 1.00 | 1.00 | 1.00 | 1.00 |
| Cr | 15.0-17.0 | 20.5-23.5 | 19.0-21.5 | 19.0-21.5 | 17.0-19.0 | 18.0-20.0 | 18.0-20.0 | 18.0-20.0 |
| Ni | 1.50-3.00 | 11.5-13.5 | 5.5-7.5 | 5.5-7.5 | 2.3-3.7 | 8.0-11.0 | 8.0-13.0 | 8.0-11.0 |
| Mo | … | 1.50-3.00 | … | … | … | … | … | … |
| Ti | … | … | … | … | … | … | … | … |
| Columbium | … | 0.10-0.30 | … | … | … | … | … | … |
| Tantalum | … | … | … | … | … | … | … | … |
| Nitrogen | 0.15-0.30 | 0.20-0.40 | 0.15-0.40 | 0.15-0.40 | 0.20-0.40 | … | … | … |
| Vanadium | … | 0.10-0.30 | … | … | … | … | … | … |
| Copper | … | … | … | … | … | … | … | … |
| Cerium | … | … | … | … | … | … | … | … |
| Boron | … | … | … | … | … | … | … | … |
| Aluminum | … | … | … | … | … | … | … | … |
| Grade: | … | TP304N | TP304LN | … | … | … | TP309S | TP309H |
| UNS | S30415 | S30451 | S30453 | S30600 | S30615 | S30815 | S30908 | S30909 |
| C, max | 0.040-0.10 | 0.080 | 0.035 | 0.018 | 0.16-0.24 | 0.05-0.10 | 0.080 | 0.040-0.10 |
| Mn, max | 0.80 | 2.00 | 2.00 | 2.00 | 2.00 | 0.80 | 2.00 | 2.00 |
| P, max | 0.045 | 0.045 | 0.045 | 0.020 | 0.030 | 0.040 | 0.045 | 0.045 |
| S, max | 0.030 | 0.030 | 0.030 | 0.020 | 0.030 | 0.030 | 0.030 | 0.030 |
| Si, max | 1.00-2.00 | 1.00 | 1.00 | 3.7-4.3 | 3.2-4.0 | 1.40-2.00 | 1.00 | 1.00 |
| Cr | 18.0-19.0 | 18.0-20.0 | 18.0-20.0 | 17.0-18.5 | 17.0-19.0 | 20.0-22.0 | 22.0-24.0 | 22.0-24.0 |
| Ni | 9.0-10.0 | 8.0-18.0 | 8.0-12.0 | 14.0-15.5 | 13.5-16.0 | 10.0-12.0 | 12.0-15.0 | 12.0-15.0 |
| Mo | … | … | … | 0.20 | … | … | 0.75 | … |
| Ti | … | … | … | … | … | … | … | … |
| Columbium | … | … | … | … | … | … | … | … |
| Tantalum | … | … | … | … | … | … | … | … |
| Nitrogen | 0.12-0.18 | 0.10-0.16 | 0.10-0.16 | … | … | 0.14-0.20 | … | … |
| Vanadium | … | … | … | … | … | … | … | … |
| Copper | … | … | … | 0.5 max | … | … | … | … |
| Cerium | … | … | … | … | … | 0.03-0.08 | … | … |
| Boron | … | … | … | … | … | … | … | … |
| Aluminum | … | … | … | … | 0.80-1.50 | … | … | … |
| Grade: | TP309Cb | TP309HCb | … | TP310S | TP310H | TP310Cb | TP310HCb | … |
| UNS | S30940 | S30941 | S31002 | S31008 | S31009 | S31040 | S31041 | S31050 |
| C, max | 0.080 | 0.040-0.10 | 0.015 | 0.080 | 0.040-0.10 | 0.080 | 0.040-0.10 | 0.025 |
| Mn, max | 2.00 | 2.00 | 2.00 | 2.00 | 2.00 | 2.00 | 2.00 | 2.00 |
| P, max | 0.045 | 0.045 | 0.020 | 0.045 | 0.045 | 0.045 | 0.045 | 0.020 |
| S, max | 0.030 | 0.030 | 0.015 | 0.030 | 0.030 | 0.030 | 0.030 | 0.015 |
| Si, max | 1.00 | 1.00 | 0.15 | 1.00 | 1.00 | 1.00 | 1.00 | 0.40 |
| Cr | 22.0-24.0 | 22.0-24.0 | 19.0-22.0 | 24.0-26.0 | 24.0-26.0 | 24.0-26.0 | 24.0-26.0 | 24.0-26.0 |
| Ni | 12.0-16.0 | 12.0-16.0 | 24.0-26.0 | 19.0-22.0 | 19.0-22.0 | 19.0-22.0 | 19.0-22.0 | 20.5.0-23.5 |
| Mo | 0.75 | 0.75 | 0.10 | 0.75 | … | 0.75 | 0.75 | 1.6-2.6 |
| Ti | … | … | … | … | … | … | … | … |
| Columbium | 10XC min,1.10 max | 10XC min,1.10 max | … | … | … | 10XC min,1.10 max | 10XC min,1.10 max | … |
| Tantalum | … | … | … | … | … | … | … | … |
| Nitrogen | … | … | 0.10 | … | … | … | … | 0.09-0.15 |
| Vanadium | … | … | … | … | … | … | … | … |
| Copper | … | … | … | … | … | … | … | … |
| Cerium | … | … | … | … | … | … | … | … |
| Boron | … | … | … | … | … | … | … | … |
| Aluminum | … | … | … | … | … | … | … | … |
| Grade: | … | … | TP316 | TP316L | TP316H | … | TP316N | TP316LN |
| UNS | S31254 | S21272 | S31600 | S31603 | S31609 | S31635 | S31651 | S31653 |
| C, max | 0.020 | 0.080-0.12 | 0.080 | 0.035 | 0.040-0.10 | 0.080 | 0.070 | 0.035 |
| Mn, max | 1.00 | 1.50-2.30 | 2.00 | 2.00 | 2.00 | 2.00 | 2.00 | 2.00 |
| P, max | 0.030 | 0.030 | 0.045 | 0.045 | 0.045 | 0.045 | 0.045 | 0.045 |
| S, max | 0.100 | 0.015 | 0.030 | 0.030 | 0.030 | 0.030 | 0.030 | 0.030 |
| Si, max | 0.80 | 0.25-0.75 | 1.00 | 1.00 | 1.00 | 0.75 | 4.8-6.0 | 1.00 |
| Cr | 19.5-20.5 | 14.0-16.0 | 16.0-18.0 | 16.0-18.0 | 16.0-18.0 | 16.0-18.0 | 9.58.0 | 16.0-18.0 |
| Ni | 17.5-18.5 | 14.0-16.0 | 11.0-14.0 | 10.0-14.0 | 11.0-14.0 | 10.0-12.0 | 19.0-22.0 | 11.0-14.0 |
| Mo | 6.0-6.5 | 1.00-1.40 | 2.00-3.00 | 2.00-3.00 | 2.00-3.00 | 2.00-3.00 | 0.30-1.50 | 2.00-3.00 |
| Ti | … | 0.30-0.60 | … | … | … | 5X(C+N)min 0.70 | … | … |
| Columbium | … | … | … | … | … | … | … | … |
| Tantalum | … | … | … | … | … | … | … | … |
| Nitrogen | 0.18-0.22 | … | … | … | … | … | 0.10-0.16 | 0.10-0.16 |
| Vanadium | … | … | … | … | … | … | … | … |
| Copper | 0.50-1.00 | … | … | … | … | 1.50-2.50 | … | … |
| Cerium | … | … | … | … | … | … | … | … |
| Boron | … | … | … | … | … | … | … | … |
| Aluminum | … | 0.004-0.008 | … | … | … | … | … | … |
| Grade: | … | … | TP347 | TP347H | TP347LN | TP348 | TP348H | … |
| UNS | S33228 | S34565 | S34700 | S34709 | S34751 | S34800 | S34809 | S35045 |
| C, max | 0.04-0.08 | 0.030 | 0.080 | 0.04-0.10 | 0.005-0.02 | 0.080 | 0.04-0.10 | 0.06-0.10 |
| Mn, max | 1.00 | 5.0-7.0 | 2.00 | 2.00 | 2.00 | 2.00 | 2.00 | 1.50 |
| P, max | 0.020 | 0.030 | 0.045 | 0.045 | 0.045 | 0.045 | 0.045 | … |
| S, max | 0.015 | 0.010 | 0.030 | 0.030 | 0.030 | 0.030 | 0.030 | 0.015 |
| Si, max | 0.30 | 1.00 | 1.00 | 1.00 | 1.00 | 1.00 | 1.00 | 1.00 |
| Cr | 26.0-28.0 | 23.0-25.0 | 17.0-19.0 | 17.0-19.0 | 17.0-19.0 | 17.0-19.0 | 17.0-19.0 | 25.0-29.0 |
| Ni | 31.0-33.0 | 16.0-18.0 | 9.0-13.0 | 9.0-13.0 | 9.0-13.0 | 9.0-13.0 | 9.0-13.0 | 32.0-37.0 |
| Mo | … | 4.0-5.0 | … | … | … | … | … | |
| Ti | … | … | … | … | … | … | … | 0.15-0.60 |
| Columbium | 0.60-1.00 | 0.10 | … | … | 0.20-0.50 | … | … | … |
| Tantalum | … | … | … | … | … | 0.10 | 0.10 | … |
| Nitrogen | … | 0.40-0.60 | … | … | … | … | … | … |
| Vanadium | … | … | … | … | … | … | … | … |
| Copper | … | … | … | … | … | … | … | 0.75 |
| Cerium | 0.05-0.10 | … | … | … | … | … | … | … |
| Boron | … | … | … | … | … | … | … | … |
| Aluminum | 0.025 | … | … | … | … | … | … | 0.15-0.60 |
| Grade: | … | TPXM-15 | … | … | … | |||
| UNS | S35315 | S318100 | N08367 | N08904 | N08926 | |||
| C, max | 0.04-0.08 | 0.080 | 0.030 | 0.020 | 0.020 | |||
| Mn, max | 2.00 | 2.00 | 2.00 | 2.00 | 2.00 | |||
| P, max | 0.040 | 0.030 | 0.040 | 0.040 | 0.030 | |||
| S, max | 0.030 | 0.030 | 0.030 | 0.030 | 0.010 | |||
| Si, max | 1.20-2.00 | 1.50-2.50 | 1.00 | 1.00 | 0.50 | |||
| Cr | 24.0-26.0 | 17.0-19.0 | 20.0-22.0 | 19.0-23.0 | 24.0-26.0 | |||
| Ni | 34.0-36.0 | 17.5-19.0 | 23.5-25.5 | 23.0-28.0 | 19.0-21.0 | |||
| Mo | … | 17.5-18.5 | 6.0-7.0 | 4.0-5.0 | 6.0-7.0 | |||
| Ti | … | … | … | … | … | |||
| Columbium | … | … | … | … | … | |||
| Tantalum | … | … | … | … | … | |||
| Nitrogen | 0.12-0.18 | … | 0.18-0.25 | 0.10 | 0.15-0.25 | |||
| Vanadium | … | … | … | … | … | |||
| Copper | … | … | 0.75 | 1.00-2.00 | 0.50-1.50 | |||
| Cerium | 0.03-0.08 | … | … | … | … | |||
| Boron | … | … | … | … | … | |||
| Aluminum | … | … | … | … | … |
| Permissible Variations in Wall Thickness | ||||||||
| Group | Size, Outside Diameter, in(mm) | Tolerance, % from Norminal Over Under | ||||||
| 1 | 1/8 to 2½ incl, all t/D ratios | 20 | 12.5 | |||||
| 2 | 3 to 18 incl, t/D up to 5% incl | 22.5 | 12.5 | |||||
| 3 | 3 to 18 incl, t/D ＞5% | 15 | 12.5 | |||||
| 4 | 20 and larger, welded,all t/D ratios | 17.5 | 12.5 | |||||
| 5 | 20 and larger, seamless, t/D up to 5% incl | 22.5 | 12.5 | |||||
| 6 | 20 and larger, seamless, t/D ＞5% incl | 15 | 12.5 | |||||
| Tensil Requirements | ||||||||
| Grade | UNS | Tensile Strength min, ksi (Mpa) | Yield strength min ksi [Mpa] | Elongation in 2in or 50mm min % | Rockwell Hardness Number max | |||
Applications: sanitary tubing in the dairy and food industry, and having special surface finishes
