P235TR1 P195TR1 Carbon Steel Welded Steel Tube EN10217-1 For Pressure Purposes

China P235TR1 P195TR1 Carbon Steel Welded Steel Tube EN10217-1 For Pressure Purposes supplier
P235TR1 P195TR1 Carbon Steel Welded Steel Tube EN10217-1 For Pressure Purposes supplier P235TR1 P195TR1 Carbon Steel Welded Steel Tube EN10217-1 For Pressure Purposes supplier P235TR1 P195TR1 Carbon Steel Welded Steel Tube EN10217-1 For Pressure Purposes supplier P235TR1 P195TR1 Carbon Steel Welded Steel Tube EN10217-1 For Pressure Purposes supplier P235TR1 P195TR1 Carbon Steel Welded Steel Tube EN10217-1 For Pressure Purposes supplier P235TR1 P195TR1 Carbon Steel Welded Steel Tube EN10217-1 For Pressure Purposes supplier

Large Image :  P235TR1 P195TR1 Carbon Steel Welded Steel Tube EN10217-1 For Pressure Purposes

Product Details:

Place of Origin: China
Brand Name: Torich
Certification: ISO9001:2008, ISO14001:2008, TS16949
Model Number: EN10217-1

Payment & Shipping Terms:

Minimum Order Quantity: 1 tons
Price: 700-900 USD perton
Packaging Details: In hexagonal bundles or wooden box
Delivery Time: 4-6 weeks
Payment Terms: L/C, T/T, D/P, T/T
Supply Ability: 1000 tons per month
Contact Now
Detailed Product Description
Standard: EN10217-1 Material: Fine Grain Steel
Type: SAW Welded Steel Tube Shape: Round
MTC: EN10204 3.1 B Steel Grade: 195TR1 P235TR1 P265TR1
Surface: Black And Weld Seam Removed

EN10217-1 P235TR1 P195TR1 Carbon Steel Welded Pipe For Pressure Purposes



EN10217-1 Welded steel tubes for pressure purposes - Technical delivery conditions -
Part 1:   Non-alloy steel tubes with specified room temperature properties



Since 2nd century, the welding seam quality increased a lot with fast development of excellent quality steel coil production, welding technology and inspection technology improvement, more welding steel tube sizes are available, and gradually widely used in different areas to replace seamless steel tube.

Material:
Fully killed steel,  Fine grain steel with a ferritic grain size.

Steel Names:
In accordance with EN10027-1 and CR10260

Manufacture:
HFW  High frequency welded
SAW  Submerged arc welded - longiditudinal seam -  SAWH
                                                     - helical seam - SAWL

Welding Procedure:
Testing and inspection of the welding procedure for submerged ard welded(SAW) tubes are witnessed and approved in accordance with EN10217-1

Apperance and General:
The weld areas are free from cracks, lack of fusion and lack of penetration
The tubes are free from external surface defects that can be detected by visual examination.



Leak-tigthtness:

The Tubes shall pass a hydrostatic test or electromagnetic test for leak-tightness



Non-Destructive Testing:

The full length of the weld seam of all EW and BW tubes ahll be subjected to a Non-Destructive test for detection of longitudinal imferfections

The full length of the weld seaml of all SAW tubes shall be subjuected to a Non-Destructive test for the detection of imperfections.



Straightness:

The deviation from straightness, of any tube length L, shall not exceed 0.0015L.

Deviations from Straightness over any one meter length shall not exeed 3mm.



Preparation of ends:

Tubes shall be delivered with square cut ends. The ends shall be free from excessive burrs.



Testing and inspection of the welding procedure for submerged arc welded (SAW) tubes in accordance with EN10217-1AnnexA

Testing and inspection of the welding procedure for SAW tubes witnessed and approved in accordance with EN10217-1 AnnexA



Tube Manufacturing Process, route and delivery condition:

Rounte No. Manufacturing Process Manufacturing routes Delivery condition Applicable for quality
Process Symbol Starting material Forming operation TR1 TR1
1a Electric welded EW As(hot) rolled strip Cold formed(+welding) As welded X -
1b NW X -
1c NP X X
2a Normalized rolled strip As welded X -
2b NW X X
2c NP X X
3 As(hot)rolled or normalising rolled strip Cold formed(+welded)+hot stretch reduced at a controlled temperature to give a normailsed condition NR X X
4 Cold Rolled + streass relieved Cold formed(+welded) NP X X
11a

Submerged arc-welded

-Longitudinal seam

or

-helical seam

SAW:

-SAWL

-SAWH

As(hot) rolled plate or strip Cold formed(+welded) As welded X -
11b NW X -
11c NP X X
12a Normaliseing rolled plate or strip Cold formed(+welded) As welded X X
12b NW X X
12c NP X X
13a As in lines 11 or 12 Normalising formed(+welded) As welded X X
13b NW X X
13c NP X X
21 Continous welded, only for steel grades P195 and P235 with D ≤114.3mm BW As(hot) rolled strip Hot  formed(+welded) As welded X -

a As wekded = no heat treatment.  NP=Full pipe normalsed.  NW= Normalised weld zone.  NR=Normaised rolled

b For tubes of quqality TR2, only high-frequency welding, minimum frequency 100kHz,(symbol=HFW) is permited

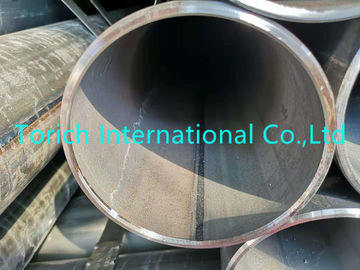

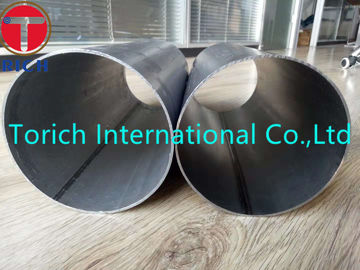

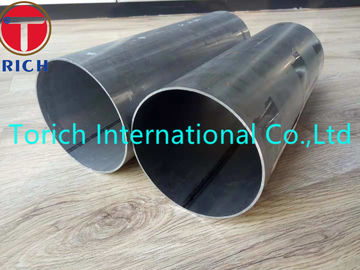

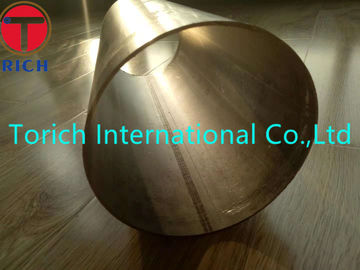

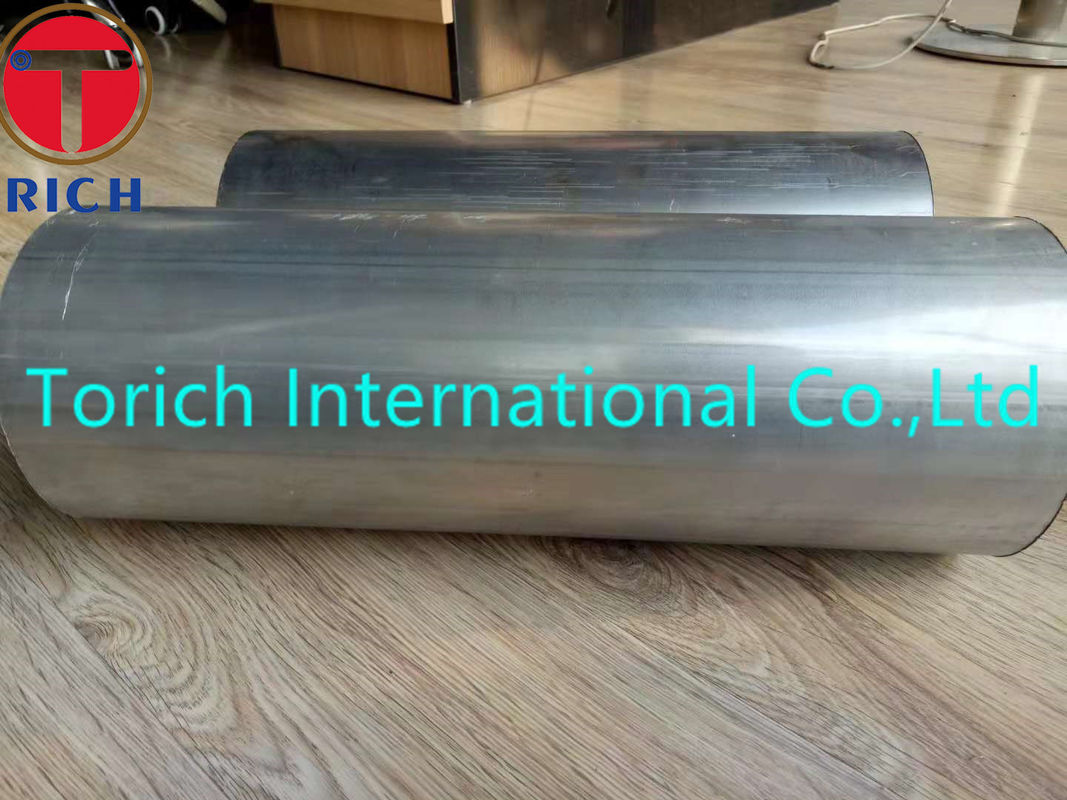

P235TR1 P195TR1 Carbon Steel Welded Steel Tube EN10217-1 For Pressure Purposes

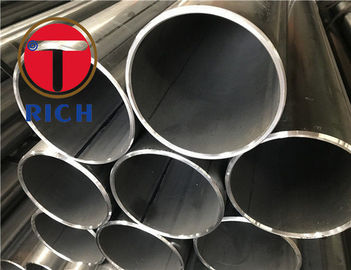

P235TR1 P195TR1 Carbon Steel Welded Steel Tube EN10217-1 For Pressure Purposes


EN10217-1  Part 1:  Non-alloy steel tubes with specified room temperature properties

EN10217-2  Part 2:  Electric welded non-alloy and alloy steel tubes with specified elevated
                                 temperature properties

EN10217-3  Part 3:  Alloy fine grain steel tubes

EN10217-5  Part 4:  Electric welded non-alloy steel tubes with specified low temperature
                                 properties

EN10217-5  Part 5:  Submerged arc welded non-alloy steel tubes with specified low
                                  temperature properties

EN10217-6  Part 6:  Submerged arc welded non-alloy steel tubes with specified low
                                 temperature properties

EN10217-7  Part 7:  Stainless steel tubes.


Normative References:
EN 760,   Welding consumables - Fluxes for submerged arc welding - Classification

EN 895,   Destructive tests on welds in metallic materials - Transverse tensile test

EN 910,   Destructive tests on weld in metallic materials - Bend test

EN1321,  Destructive tests on welds in metallic materials - Macroscopic and microscopic examination
                of welds

EN10002-1,  Metallic materials - Tensile testing - Part 1:  Method of test at ambient temperature

EN10002-5,  Metallic materials - Tensile testing - Part 5:  Method of tesing at elevated temperature

EN10020,  Definitions and classification of grades of steel

EN10021,  General techical delivery requirements for steel and iron products

EN10027-1, Destructive systems of steels - Part 1:  Steel names, principle symbols.

EN10027-2, Designation systems for steels - Part 2:  Numerical systems.

EN10045-1, Metallic materials - Charpy impact test - Part 1: Test method

EN10052,    Vocabulary of heat treatment terms of ferrous products

EN10204,    Metallic products - Types of inspection documents

EN10200,    Seamless and welded steel tubes - Dimensions and masses per unit length

EN10233,    Metallic materials - Tubes - Flattening test

EN10234,    Metallic materials - Tubes - Drift expanding test

EN10236,    Metallic materials - Tubes - Rings expanding test

EN10237,    Metallic materials - Tubes - Ring tensile test

EN10246-1,  Non-Destructive Testing of steel tubes Part 1:  Automatic electromagnetic testing of
                     seamless and welded ( except submerged arc welded) ferromagnetic steel tubes for
                     verification of hydraulic leaktightness

EN10246-3,  Non-Destructive Tesing of steel tubes - Part 3:  Automatic eddy current testing of seamless
                     and welded ( except submerged arc-welded) steel tubes for detection of imperfections.

EN10246-5,  Non-Destructive Testing of steel tubes - Part 5: Automatic full peripheral magnetic
                     transducer/flux leakage testing of seamless and welded (except submerged arc-welded)
                     ferromagnetic steel tubes for the detection of longitudinal imperfections

EN10246-6,  Non-Destructive Tesing of steel tubes - Part 6: Automatic full peripheral ultrasonic testing of
                     seamless steel tubes for the detection of transverse imperfections.

EN10247-7,  Non-Destructive Testing of steel tubes - Part 7: Automatic full peripheral ultrasonic testing of
                     seamless and welded ( except submerged arc welded) steel tubes for the detection of
                     longitudinal imperfections.

EN10246-8,  Non-Destructive Testing of steel tubes - Part 8: Automatic ultrasonic testing of the weld
                     seam of electric welded tubes for the detection of longitudinal imperfections.

EN10246-9,  Non-Destructive Testing of steel tubes - Part 9: Automatic ultrasonic testing of the weld
                     seam of submerged arc-welded tubes for the detection of longitudinal and/or
                     transverse imperfections.

EN10246-10,  Non-Destructive Testing of steel tubes - Part 10: Radiographic testing of the weld
                       seam of automatic fusion arc-welded tubes for the detection of imperfections.

EN10246-14,  Non-Destructive Testing of steel tubes - Part 14: Automatic ultrasonic testing of the
                       seamless and welded (except submerged arc welded) steel tubes for detection of laminar
                       imperfections

EN10246-15,  Non-Destructive Testing of steel tubes - Part 15: Automatic ultrasonic testing of strip/plate
                       used in the manufacture of steel tubes for detection of laminar imperfections

EN10246-16,  Non-Destructive Testing of steel tubes - Part 16: Automatic ultrasonic testing of the area
                       adjacent to the weld seam of welded steel tubes for the detection of laminar imperfections

EN10246-17,  Non-Destructive Testing of steel tubes - Part 17: Automatic ultrasonic testing of tube ends
                       of seamless and welded steel tubes for the detection of laminar imperfections

EN10256,       Non-Destructive Testing of steel tubes - Qualification and competence of level 1 and level 2
                       NDT personnel



prEN 102661) Steel tubes, fittings and structural hollow sections - Symbols and definition of terms for use in product standards



EN ISO 377,Steel and steel products - Location and preparation of samples and test pieces for mechanical testing (ISO 377:1997)



prEN 10168 1) Iron and steel products - Inspection documents - List of information and description



EN ISO 2566-1, Steel - Conversion of elongation values – Part 1: Carbon and low-alloy steels (ISO 2566-1:1984)



ISO 14284, Steel and iron - Sampling and preparation of samples for the determination of chemical composition



CR 10260, Designation systems for steel - Additional symbols



CR 10261, ECISS Information Circular IC 11 - Iron and steel - Review of available methods of chemical analysis.

As(hot) rolled strip
