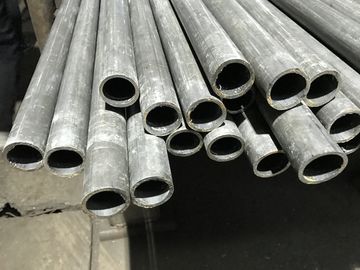

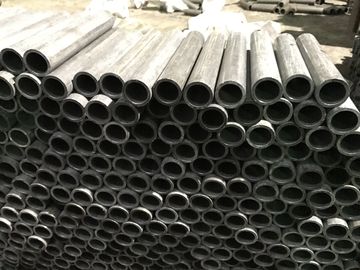

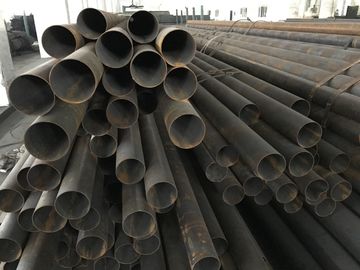

High Pressure Boiler Steam Superheater Tubes / Alloy Steel Tube ASTM SA213 T5

China High Pressure Boiler Steam Superheater Tubes / Alloy Steel Tube ASTM SA213 T5 supplier
High Pressure Boiler Steam Superheater Tubes / Alloy Steel Tube ASTM SA213 T5 supplier High Pressure Boiler Steam Superheater Tubes / Alloy Steel Tube ASTM SA213 T5 supplier High Pressure Boiler Steam Superheater Tubes / Alloy Steel Tube ASTM SA213 T5 supplier High Pressure Boiler Steam Superheater Tubes / Alloy Steel Tube ASTM SA213 T5 supplier

Large Image :  High Pressure Boiler Steam Superheater Tubes / Alloy Steel Tube ASTM SA213 T5

Product Details:

Place of Origin: Zhejiang
Brand Name: TORICH
Certification: ISO
Model Number: ASTM SA213 T5

Payment & Shipping Terms:

Minimum Order Quantity: 5 Tons
Price: USD 750-800 Per Ton
Packaging Details: Anti Rust Oil Protection, in seaworthy packing
Delivery Time: 4-6 Weeks
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 100 Tons Per Month
Contact Now
Detailed Product Description
Standard: ASTM A106-2006, GB 5310-1995 Grade Group: A53-A369
Thickness: 2.11 - 140 Mm Outer Diameter(Round): 88.9 - 1219 Mm
Section Shape: Round Application: Boiler Pipe

Large Caliber AStm A213 T5 High Pressure Boiler Alloy Steel Pipe



1. Available Size Range:





OD



Thickness

mm



inch mm SCH

88.9~1422



3''~ 56'' 2.11~140 ≥SCH10



*If the steel grades and size you are looking for are not listed above, please contact us for further information

.



2. Application


Power plant; Chemical Fertilizer; Petrochemicals; Offshore Oils; Gas Productions; Refineries and etc.



3. Standards



ASTM A106 ——Standard Specification for Seamless Carbon Steel Pipe for High-Temperature Service

ASTM A335 /ASTM A213 ——Standard Specification for Seamless Ferritic Alloy-Steel Pipe for High-Temperature Service



4. Steel pipes No. of main production:



ASTM A335 Grade P5 /T5, P9 / T9, P11, P12, P22, P91, P92

ASTM A106 Grade B, C



5. Dimensional Tolerance





Pipe types



OD (mm) Tolerance WT (mm) Tolerance
High Pressure Boiler Tube 219~457 ±1.0%



≤20



-10% ~ +12.5%



20~40



-10% +10%
457~1422 ±0.9%



>40~70



-7%, +9%



>70~20



-6%, +8%



6. Chemical Composition:





High Pressure Boiler Tube Chemical Requirements









Standard







Grade UNS Designation Composition, %
C Mn P S Si Cr Mo Ni V Others
ASTM A335 P5/T5 K41545 0.15max 0.30-0.60 0.025 0.025 0.50max 4.00-6.00 0.45-0.65     ...
P9/T9 S50400 0.15max 0.30-0.60 0.025 0.025 0.25-1.00 8.00-10.00 0.90-1.10     ...
P11 K11597 0.05-0.15 0.30-0.60 0.025 0.025 0.50-1.00 1.00-1.50 0.44-0.65     ...
P12 K11562 0.05-0.15 0.30-0.61 0.025 0.025 0.50 max 0.80-1.25 0.44-0.65     ...
P22 K21590 0.05-0.15 0.30-0.60 0.025 0.025 0.50 max 1.90-2.60 0.87-1.13     ...
P91 K91560 0.08-0.12 0.30-0.60 0.02 0.01 0.20-0.50 8.00-9.50 0.85-1.05 0.4 0.18-0.25 N 0.030-0.070
Al 0.02max
Cb 0.06-0.10
Ti 0.01 max
Zr 0.01max
P92 K92460 0.07-0.13 0.30-0.60 0.02 0.01 0.50 max 8.50-9.50 0.30-0.60 0.4 0.15-0.25 N 0.03-0.07
Al 0.02 max
Cb 0.04-0.09
W 1.5-2.00
B 0.001-0.006
Ti 0.01 max
Zr 0.01 max
ASTM A106 Grade B   0.3 0.29–1.06 0.035 0.035 0.1 0.4 0.15 0.4 0.08
Grade C   0.35 0.29–1.06 0.035 0.035 0.1 0.4 0.15 0.4 0.08



7. Mechanical Properties



Standards



Steel pipes No. Tensile strength Yield strength Elongation Impact energy Hardness
(Mpa) (Mpa) (%) (J)
ASTM A335 P5/T5 ≥415 ≥205 ≥22 ≥35 ≤187HB
P9/T9 ≥415 ≥205 ≥22 ≥35
P11 ≥415 ≥205 ≥22 ≥35 ≤163HB
P12 ≥415 ≥220 ≥22 ≥35 ≤163HB
P22 ≥415 ≥205 ≥22 ≥35 ≤163HB
P91 585~760 ≥415 ≥20 ≥35 ≤250HB
P92 ≥620 ≥440 ≥20 ≥35 ≤250HB
ASTM A106 Grade B ≥415 ≥240 ≥22 ≥35 /
Grade C ≥485 ≥275 ≥20 ≥35 /
