ASTM A789 Super Duplex 2507 Pipe Cold Drawn Stainless Steel Tube For Petrochemical
Contact Person : Richard SHEN
Phone Number : +86-13736164628
WhatsApp : +8613736164628
Minimum Order Quantity : | 5 Kg | Price : | negotiable |
---|---|---|---|
Packaging Details : | Anti Rust Oil Protection, in seaworthy packing | Delivery Time : | 1-2 Weeks |
Payment Terms : | L/C, D/A, D/P, T/T, Western Union, MoneyGram | Supply Ability : | 10 Tons Per Month |
Place of Origin: | Zhejiang | Brand Name: | TORICH |
---|---|---|---|
Model Number: | ASTM, AISI, DIN, EN, GB, JIS |
Detail Information |
|||
Certification: | ISO,SGS | Steel Grade: | 300 Series,400 Series,TP316 |
---|---|---|---|
Application: | Chemical | Welding Line Type: | Seamless |
Standard: | GB,ASTM,DIN,AISI,JIS | Thickness: | 0.1-0.25 |
Length: | 1m-12m,6m Or As Customers' Request | Color: | Natural Color |
High Light: | stainless tube steel,large diameter stainless steel tube |
Product Description

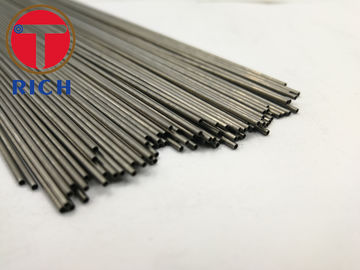

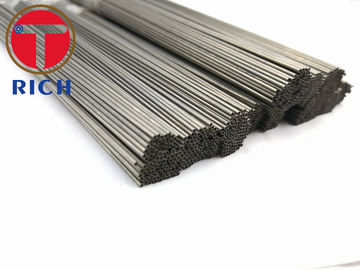

Outer Diameter 0.1mm--8mm seamless stainless steel capillary tubes for handrails
Name
|
Stainless steel capillary pipes | |||||
Standard
|
ASTM A554 | |||||
Material Grade
|
201/202/304/316 | |||||
Outer Diameter
|
0.1mm--8mm | |||||
Thickness
|
0.05mm - 2.1mm | |||||
Length
|
2440mm, 3050mm, 5800mm, 6000mm, 6100mm or as customer request | |||||
Tolerance |
a) Outer Diameter: +/- 0.2mm
|
|||||
b) Thickness: +/- 10% OR as customer request
|
||||||
c) Length: +/- 10mm
|
||||||
Surface |
Satin / Hairline :180#, 320#
Polish : 400# ,600# ,800# or Mirror surface
|
|||||
Application
|
Processed into railings, handrails, doors and Windows | |||||
PACKING
|
Plastic bag / woven packing(please send details packing to us if you have other requirements ) |
Chemical composition |
Element
|
201 | 202 | 304 | 316 | S31803 | S32750 | |
C
|
≤0.15 | ≤0.15 | ≤0.08 | ≤0.08 | ≤0.030 | ≤0.030 | ||
Si
|
≤1.00 | ≤1.00 | ≤1.00 | ≤1.00 | ≤1.00 | ≤0.80 | ||
Mn
|
5.5-7.5 | 7.5-10.0 | ≤2.00 | ≤2.00 | ≤2.00 | ≤1.20 | ||
P
|
≤0.060 | ≤0.060 | ≤0.045 | ≤0.045 | ≤0.030 | ≤0.035 | ||
S
|
≤0.030 | ≤0.030 | ≤0.030 | ≤0.030 | ≤0.020 | ≤0.020 | ||
Cr
|
16-18 | 17-19 | 18-20 | 16-18 | 21-23 | 21-23 | ||
Ni
|
3.5-5.5 | 4.0-6.0 | 42958 | 43022 | 4.5-6.5 | 6.0-8.0 | ||
Mo
|
2.0-3.0 | 2.5-3.5 | 3.0-5.0 | |||||
N | ≤0.25 | ≤0.25 | 0.08-0.2 | 0.24-0.32 | ||||
Cu
|
≤0.50 | |||||||
Mechanical properties |
Material Item
|
201 | 202 | 304 | 316 | S31803 | S32750 | |
Tensile Strength (MPa)
|
≥655 | ≥620 | ≥515 | ≥515 | ≥620 | ≥800 | ||
Yield Strength (MPa)
|
≥260 | ≥310 | ≥205 | ≥205 | ≥450 | ≥550 | ||
Elongation (%)
|
≥35 | ≥35 | ≥35 | ≥35 | ≥25 | ≥15 | ||
Hardness (HV)
|
≤230 | ≤230 | ≤200 | ≤200 | ≤303 | ≤323 |
