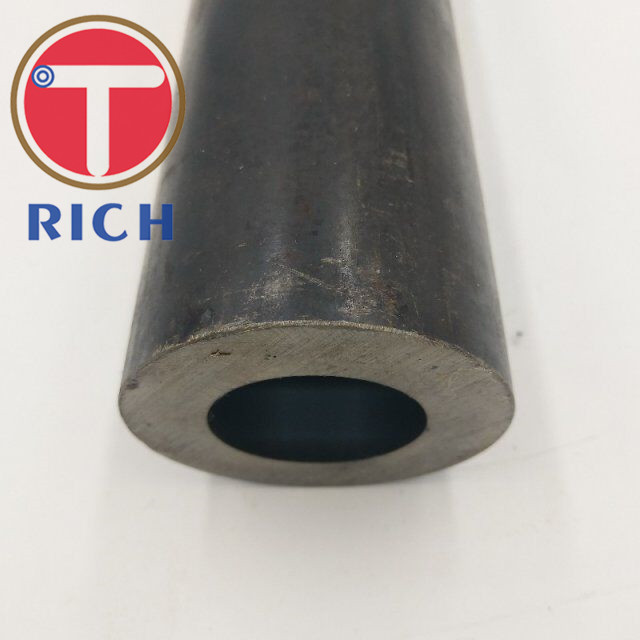

Seamless High Pressure Heavy Wall Steel Tubing 300mm Large Diameter ST37 15Mo3
Basic Properties
Place of Origin:
CHINA
Brand Name:
TORICH
Certification:
ISO9001, TS16949
Model Number:
GOST 8734-35
Trading Properties
Minimum Order Quantity:
5tons
Price:
USD600-900/TON
Payment Terms:
T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability:
60000ton/year
Product Summary
TORICH Seamless Carbon Mild 300mm Large Diameter ST37 15Mo3 High PressureC45 Heavy Thick Wall Steel Pipe Outside Diameter: 20 – 300 mm Wall Thickness: 5– 25 mm Tolerances: OD: D 5 – 10 mm: ± 0.15 mm D 11 – 30 mm: ± 0.30 mm D 32 – 50 mm: ± 0.40 mm D 51 – 140 mm: ± 0.8% WT: S 0.4 – 1 mm: ± 0.12 mm S 1...
Product Details
Highlight:
thick wall steel pipe
,thick wall steel tube
Product Name:
Heavy Thick Wall Steel Pipe
Standard:
GOST 8734-35
Technique:
Hot Finish，cold Finish
Section Shape:
Round
Certification:
ISO9001, TS16949
Alloy Or Not:
No
Secondary Or Not:
Non-secondary
Special Tube:
Heavy Thick Wall Steel Pipe
Surface:
Oiled
Hea Treatment:
+AR /+N
Product Description
TORICH Seamless Carbon Mild 300mm Large Diameter ST37 15Mo3 High PressureC45 Heavy Thick Wall Steel Pipe
Outside Diameter: 20 – 300 mm
Wall Thickness: 5– 25 mm
Tolerances:
OD:
D 5 – 10 mm: ± 0.15 mm
D 11 – 30 mm: ± 0.30 mm
D 32 – 50 mm: ± 0.40 mm
D 51 – 140 mm: ± 0.8%
WT:
S 0.4 – 1 mm: ± 0.12 mm
S 1.2 – 5 mm: ± 10%
S 5.5 – 12 mm: ± 8%
Notes:
1. Steel grades: 10, 20, 35, 45, 10Mn2, 15Cr, 20Cr, 40Cr, 30CrMnSi, 15CrMo acc. to GOST 1050-88, GOST 19281-89, GOST 4543-71. Others steel grades are available subject to agreement.
2. Dimensions and tolerances acc. to GOST 8734-75.
3. Technical requirements acc. to GOST 8733-74.
4. Length from 1.5 to 11.5 m depending on diameter and wall thickness.
Chemical Composition:
Mechanical Properties:
