Seamless Cold Drawn Honed Steel Hydraulic Cylinder Tube For Telescopic Cylinders

Minimum Order Quantity : 5 tons Price : USD900-1200 PER TON
Packaging Details : Seamless Cold Drawn Honed Steel Tube for Hydraulic Cylinder from TORICH,packing in standard marine package. Delivery Time : Within 30 days
Payment Terms : T/T, L/C, D/A, D/P, Western Union, MoneyGram Supply Ability : 50000 tons per year
Place of Origin: Zhejinag,China Brand Name: TORICH
Certification: ISO9001, ISO14001 ,TS14969 Model Number: EN10305-4

Detail Information

Product Name: Seamless Cold Drawn Honed Steel Pipes For Hydraulic Cylinder From TORICH Keyword: Honed Tube
Application: For Gas Cylinder Applications, Oil Cylinders/Telescopic Cylinders Type: CDS
Material: E235, E355,E215 ST52,etc Shape: Round
Length: Max 12000mm OD: 6-380mm
WT: 1-35mm Brand: TORICH
High Light:

honed hydraulic cylinder tubing

,

honed hydraulic cylinder tube

Product Description

Seamless Cold Drawn Honed Steel Pipes for Hydraulic Cylinder from TORICH



EN10305-1 Telescopic Cylinders Gas Cylinder Tube with Cold Processing Production

Standard: EN10305-1 Seamless Cold Drawn/Rolling Steel Tubes

Steel Tubes for precision applications.

Applications: for Gas Cylinder Applications, Oil Cylinders/Telescopic Cylinders
Size Range: O.D.:6-380mm     W.T.:1-35mm      L:max12000mm
Steel Grade: E235, E355,E215 etc

Note: Special steel grade is also available, according to customer request.
aRm: tensile strength;  ReH: upper yield strength; A: elongation after fracture
b 1Mpa=1N/mm2
c Depending on the degree of cold work in the finishing pass the yield strength may nearly be as high as the tensile strength.
For calculation purposes the following relations are recommended:
for delivery condition +C: ReH ≥0.8 Rm
for delivery condition +LC: ReH ≥0.7 Rm



                                                        Mechanical properties at room temperature
          Steel Grade Minimum values for the delivery condition
Steel Name Steel Nubmer     (+Cc)     (+LCc)       (+SR)     (+Ad)        (+N)  NBK
Rm Mpa A % Rm Mpa A % Rm Mpa ReH Mpa A % Rm Mpa A % Rm Mpa ReH Mpa A %
 E215 1.0212  430 8 380 12 380 280 16 280 30 290-430 215 30
 E235 1.0308  480 6 420 10 420 350 16 315 25 340-480 235 25
 E355 1.0580  640 4 580 7 580 450 10 450 22 490-630 355 22

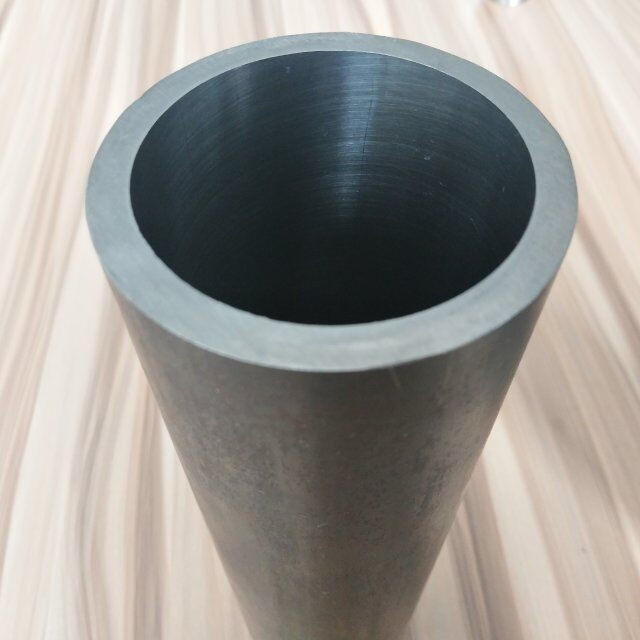

Seamless Cold Drawn Honed Steel Hydraulic Cylinder Tube For Telescopic Cylinders 0

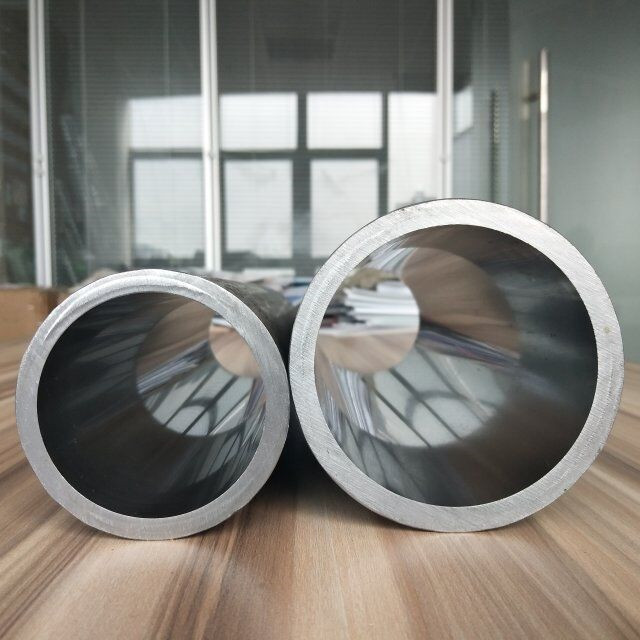

Seamless Cold Drawn Honed Steel Hydraulic Cylinder Tube For Telescopic Cylinders 1

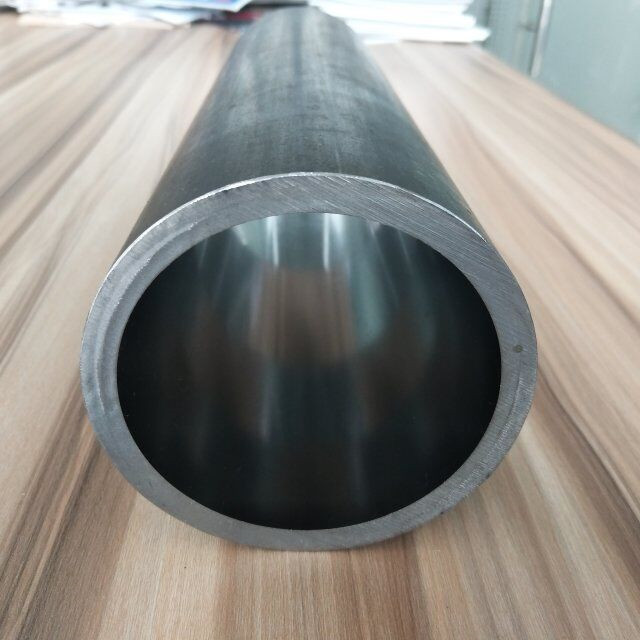

Seamless Cold Drawn Honed Steel Hydraulic Cylinder Tube For Telescopic Cylinders 2
