ASTM A519 1035 Seamless Carbon And Alloy Steel Mechanical Tubing For Hydraulic
|
Product Details:
|
|
| Place of Origin: | Zhejiang,China |
|---|---|
| Brand Name: | TORICH |
| Certification: | ISO9001 ISO14001 TS16949 |
| Model Number: | ASTM A268 TP405 TP410 |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 3 tons |
| Price: | negotiable |
| Packaging Details: | Carbon Welded Seamless Steel Tube / Ferritic And Martensitic Stainless Steel Tube,packing in standard marine packages. |
| Delivery Time: | 20-45 days |
| Payment Terms: | T/T, L/C, D/A, D/P, Western Union, MoneyGram |
| Supply Ability: | 50000 tons per year |
|
Detail Information |
|||
| Product Name: | Carbon Welded Seamless Steel Tube / Ferritic And Martensitic Stainless Steel Tube | Keyword: | Seamless Steel Tube |
|---|---|---|---|
| Application: | For General Corrosion-resisting And High-temperature Service | Material: | TP405 TP410 |
| Shape: | Round | Type: | Cold Drawn/cold Rolled/ERW |
| Brand: | TORICH | Length: | Customized |
| OD: | 4-230mm | WT: | 1-30mm |
| High Light: | precision stainless steel tubing,seamless carbon steel tube |
||
Product Description
ASTM A268 TP405 TP410 Seamless and Welded Ferritic and Martenstic Stainless Steel Tube from TORICH
Standard: ASTM A268
Material: TP405, TP410, TP430, TP446-1, TP446-2, 26-3-3
Size: OD: 4-230mm WT: 1-30mm Length: According to Customer's Requirement
Applications: For general corrosion-resisting and high-temperature service.
Manufacture: Tubes are made by the welded process with no filler metal added.
Surface Condition: The finished tubes are free of scale., slight amount of oxidation is not considered as scale
Test and Inspection: Tension Test, Flaring Test, Flange Test, Reverse Test, Hardness Test, Hydrostatic or Nondestructive Electric Test
Heat treatment: As a final treatment, tubes shall be reheated to a temperature of 1200℉(650℃) or higher and cooled (as appropriate for the grade) to meet the requirements of this specification.
The martensitic grade UNS S41500 shall be reheated to a temperature of 950℉ (510℃) or higher and cooled as appropriate to meet the requirements of this specification.
| Grade | UNS | C | Mn | P | S | Ni | Cr | Mo | N |
| TP410 | S41000 | 0.15 max | 1.00 max | 0.040 max | 0.030 max | --- | 11.5-13.5 | --- | --- |
| S42035 | 0.08 max | 1.00 max | 0.045 max | 0.030 max | 1.0-2.5 | 13.5-15.5 | --- | 0.30-0.50 | |
| TP430 | S43000 | 0.12 max | 1.00 max | 0.040 max | 0.030 max | --- | 16.0-18.0 | --- | --- |
| TP446-1 | S44600 | 0.025 max | 1.50 max | 0.040 max | 0.030 max | ≤0.75 | 23-27 | --- | 0.025 max |
| TP446-2 | S44600 | 0.012 max | 1.50 max | 0.040 max | 0.030 max | ≤0.50 | 23-27 | --- | 0.025 max |
| 2026-3-3 | S44660 | 0.030 max | 1.50 max | 0.040 max | 0.030 max | 1.0-3.5 | 25-28 | --- | 0.040 max |

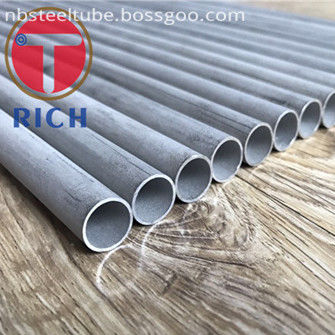

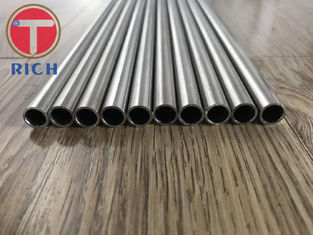

Product pictures
