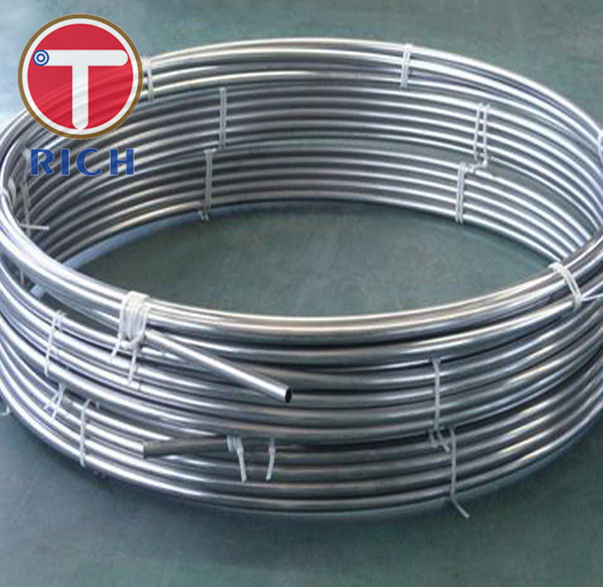

Welded Round Stainless Steel Tubing Coil ASTM A249/A269 For Beer Drinks Evaporator
Product Details
stainless tube steel
,large diameter stainless steel tube
| Matrial | 304, 304L, 316, 316L, 317, 317L, 310 etc stainless steel |
| Size | WT: 0.3-2.0mm OD: 3-24.5mm Length: as customers' requirement |
| Surface Treament | Annealed, Brightly Annealed, Polish |
| Test | Tension Test, Flaring Test, Flange Test, Reverse Test, Hardness Test, Hydrostatic or Nondestructive Electric Test etc |
| Application | 1. Evaporator for equipment of beer & drinks 2. Condensers for equipment of beer&drinks 3. Heat Exchanger 4. Instruments for petrochemical industry 5. Refrigeration and heating equipment 6. Gas and liquid transmission pipeline |
Mechanical Properties
Elongation Percentage: >55%
Surface Hardness: <170HV
Tensile Strength :>550N/MM2
Yield Strength :>195N/NM2
OUR ADVANTAGES:
1. We can make it longer
2. No matter how long each coil tube is , there will be no leakag
3.100% inspection ,pressure restistant and more reliable
4. Internal and external clean , reach food grade(Customers shall give prior notice)
5.Complete specifications , products of some specifications in stock
6. Pass FDA test
Currently the company has 6 coil tube production lines and 10 bright annealing production lines , Complete equipment ,leadig technology and perfect inspection and testing methods provide the most reliable pipeline solutions for customers.
QUALITY CONTROL:
1. Incoming Raw Material Inspection
2. Raw Material Segregation to avoid steel grade mix-up
3. Heating and Hammering End for Cold Drawing
4. Cold Drawing and Cold Rolling, on line inspection
5. Heat Treatment, +A, +SRA, +LC, +N, Q+T
6. Straightening-Cutting to specified length-Finished Measuring Inspection
7. Machanical Testing in own labs with Tensile Strength, Yield Strength, Elongation, Hardness, Impact, Mictrostruture etc
8. Packing and Stocking
100% of our steel tubes are dimensionally checked
100% of our steel tubes are visually checked to assure they have a perfect surface condition and no surface defects.
100% eddy current test and ultrosonic test to eliminate longitudinal and transversal defects.
PACKING:
Each tube in a plastic bag, then put tubes in a seaworthy woven bag ,each unit weight 400kg-500kg/bundle.
With strong wood structure box packing by containers loading and shipping.
Or as customer's requirement.
20 ft container - GP: 5.8m (Length) * 2.13m (Width) * 2.18m (Hight) ------ Max Gross Weight: 25MT/container.
40 ft container - GP: 11.8m (Length) * 2.13m (Width) * 2.18m (Hight) ------ Max Gross Weight: 27MT/container.
40 ft container - HG: 11.8m (Length) * 2.13m (Width) * 2.72m (Hight) ------ Max Gross Weight: 27MT/container.
Port Shanghai
Q: Are you trading company or manufacturer ?
A: A professional steel pipes materials inventor, manufacturer and solution provider
Q: How long is your delivery time?
A: Generally it is 7-14 days if the goods are in stock. or it is 30-60 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples of carbon seamless steel tube ? is it free or extra ?
A: Yes, we could offer the sample for free charge but need pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us
-
