JIS G 3452 SGP Carbon Steel Structural Tubing For Ordinary Pipe OD 5 - 420 mm

Minimum Order Quantity : 5Tons Price : USD600-900/ton
Packaging Details : Structural Steel Pipes are packed in wooden boxes or hexagonal bundles in seaworthy packing. Delivery Time : 30-45 work days
Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram Supply Ability : 5000Tons per Year
Place of Origin: ZHEJIANG, CHINA Brand Name: TORICH
Certification: ISO9001, ISO14001, TS16949 Model Number: JIS G 3452

Detail Information

Keyword: Structural Steel Pipe Material: SGP Carbon Steel
OD: 5 - 420 Mm WT: 0.5 - 50 Mm
Length: Max 12000mm Usage: For Ordinary Piping
Sureface: Zinc Coating Relevant Standard: KS D3507, ASTM A53, API 5L, DIN 2440
High Light:

cold formed steel tube

,

structural steel square tubing

Product Description

Products Description

TORICH JIS G 3452 SGP Carbon Steel Structural Tubing for Ordinary Pipe
Standard
JIS G 3452 JIS G 3452 Carbon steel pipes for ordinary piping
Relevant Standard
KS D3507, ASTM A53, API 5L, DIN 2440, DIN2441, BS 1387, BS 3601
Material
SGP Carbon Steel
Size
WT: 0.5-50mm; OD: 5-420mm; Length: max 12000mm
Sureface
Black pipe without zinc coating
Galvanized pipe with zinc coating
Applications
For Ordinary Piping
Test
Tension Test, Flaring Test, Flange Test,
Reverse Test, Hardness Test,
Hydrostatic or Nondestructive Electric Test etc



Chemical Composition

Steel grade
P
S
SGP
0.040max
0.040max



Mechanical Properties

Steel Grade
Tensile Strength Mpa
Elongation %
SGP
290 min
30 min



Demensional Tolerances

Nominal Diameter
OD (mm)
OD Tolerances
WT (mm)
WT Tolerances
A
B
Pipes to be cut in taper thread
Other pipes
6
1/8
10.5
±0.5mm
±0.5mm
2.0
+Not specified
-12.5%
8
1/4
13.8
±0.5mm
±0.5mm
2.3
10
3/8
17.3
±0.5mm
±0.5mm
2.3
15
1/2
21.7
±0.5mm
±0.5mm
2.8
20
3/4
27.2
±0.5mm
±0.5mm
2.8
25
1
34.0
±0.5mm
±0.5mm
3.2
32
1 1/4
42.7
±0.5mm
±0.5mm
3.5
40
1 1/2
48.6
±0.5mm
±0.5mm
3.5
50
2
60.5
±0.5mm
±1%
3.8
65
2 1/2
76.3
±0.7mm
±1%
4.2
80
3
89.1
±0.8mm
±1%
4.2

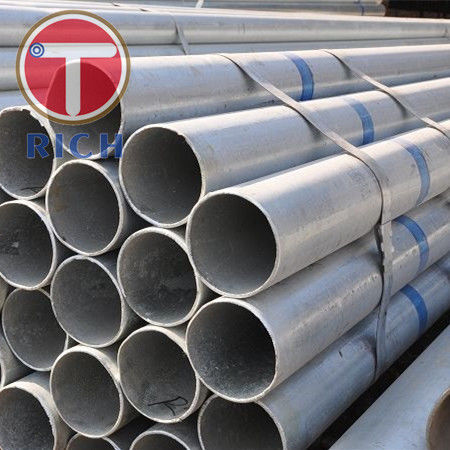

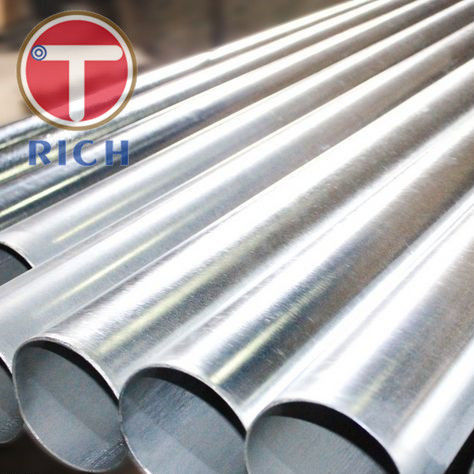

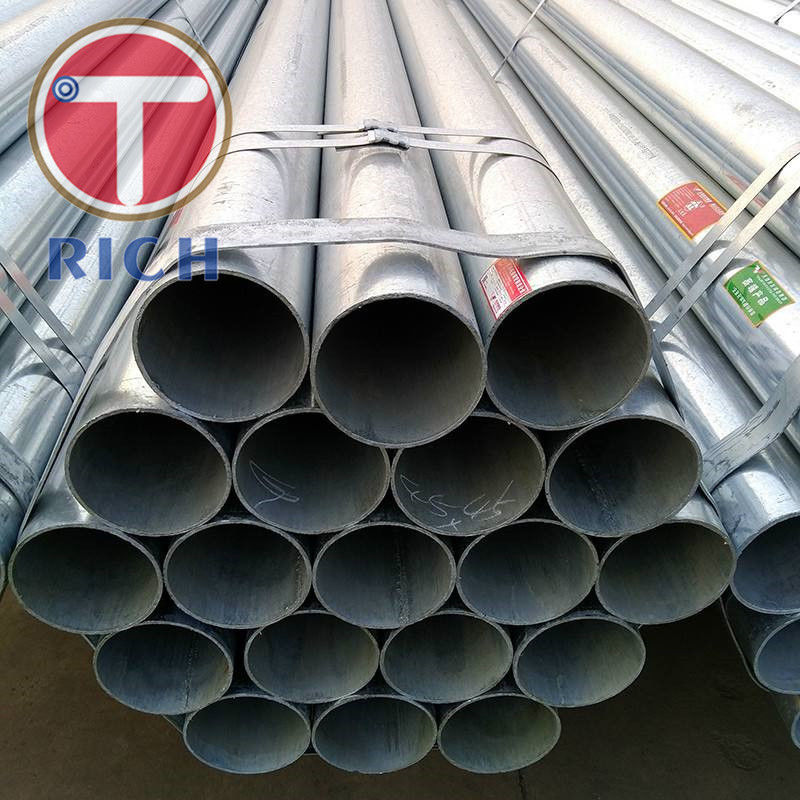

Product Show
JIS G 3452 SGP Carbon Steel Structural Tubing For Ordinary Pipe OD 5 - 420 mm 0JIS G 3452 SGP Carbon Steel Structural Tubing For Ordinary Pipe OD 5 - 420 mm 1



QUALITY CONTROL:
1. Incoming Raw Material Inspection
2. Raw Material Segregation to avoid steel grade mix-up
3. Heating and Hammering End for Cold Drawing
4. Cold Drawing and Cold Rolling, on line inspection
5. Heat Treatment, +A, +SRA, +LC, +N, Q+T
6. Straightening-Cutting to specified length-Finished Measuring Inspection
7. Machanical Testing in own labs with Tensile Strength, Yield Strength, Elongation, Hardness, Impact, Mictrostruture etc
8. Packing and Stocking


100% of our steel tubes are dimensionally checked
100% of our steel tubes are visually checked to assure they have a perfect surface condition and no surface defects.
100% eddy current test and ultrosonic test to eliminate longitudinal and transversal defects.



PACKING:
Each tube in a plastic bag, then put tubes in a seaworthy woven bag ,each unit weight 400kg-500kg/bundle.
With strong wood structure box packing by containers loading and shipping.
Or as customer's requirement.
20 ft container - GP: 5.8m (Length) * 2.13m (Width) * 2.18m (Height) ------ Max Gross Weight: 25MT/container.
40 ft container - GP: 11.8m (Length) * 2.13m (Width) * 2.18m (Height) ------ Max Gross Weight: 27MT/container.
40 ft container - HG: 11.8m (Length) * 2.13m (Width) * 2.72m (Height) ------ Max Gross Weight: 27MT/container.
Port Shanghai



FAQ

Q: Are you trading company or manufacturer ?
A: A professional steel pipes materials inventor, manufacturer and solution provider

Q: How long is your delivery time?
A: Generally it is 7-14 days if the goods are in stock. or it is 30-60 days if the goods are not in stock, it is according to quantity.

Q: Do you provide samples of carbon seamless steel tube ? is it free or extra ?
A: Yes, we could offer the sample for free charge but need pay the cost of freight.

Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.

If you have another question, pls feel free to contact us
