Precision Single Welded Steel Tube GB/T24187 BHG1 For Condenser TS16949 Certificate

China Precision Single Welded Steel Tube GB/T24187 BHG1 For Condenser TS16949 Certificate supplier
Precision Single Welded Steel Tube GB/T24187 BHG1 For Condenser TS16949 Certificate supplier Precision Single Welded Steel Tube GB/T24187 BHG1 For Condenser TS16949 Certificate supplier Precision Single Welded Steel Tube GB/T24187 BHG1 For Condenser TS16949 Certificate supplier Precision Single Welded Steel Tube GB/T24187 BHG1 For Condenser TS16949 Certificate supplier

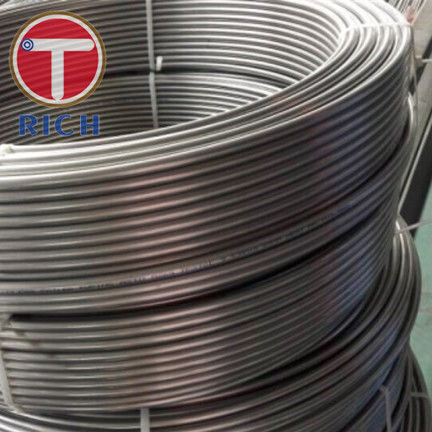

Large Image :  Precision Single Welded Steel Tube GB/T24187 BHG1 For Condenser TS16949 Certificate

Product Details:

Place of Origin: ZHEJIANG, CHINA
Brand Name: TORICH
Certification: ISO9001, ISO14001, TS16949
Model Number: GB/T24187

Payment & Shipping Terms:

Minimum Order Quantity: 5Tons
Price: USD600-900/ton
Packaging Details: Carbon Steel Coil Tubes are packed in wooden boxes or hexagonal bundles in seaworthy packing.
Delivery Time: 30-45 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 5000Tons per Year
Contact Now
Detailed Product Description
Keyword: Carbon Steel Coil Tubes Material: Q195 Q215 Q235
OD: 3.18 - 18 Mm WT: 0.5 - 1.2 Mm
Length: 1-200m Usage: For Condenser, Evaporator Etc
Type: Welded Steel Pipes Sureface: Bright ,Copper Plated, Galvanized

Products Description

TORICH GB/T24187 BHG1 Precision Single Welded Carbon Steel Coil Tubes for Condenser
Standard
GB/T24187
Material
Q195 Q215 Q235 Q295 Q345
Size
WT: 0.5-1.2mm; OD: 3.18-18mm; Length: 1-200m
Processing
W-H W-C
Sureface
Bright ,Copper Plated, Galvanized Or Customers'requirements
Applications
Condenser, evaporator, cooler tube fuel pipe of refrigeration,automobile and electric appliance industrial
Test
Tension Test, Flaring Test, Flange Test,
Reverse Test, Hardness Test,
Hydrostatic or Nondestructive Electric Test etc



Chemical Composition

Category
C
Si
Mn
P
S
Cold rolled low carbon steel strip
≤0.08
≤0.03
≤0.03
≤0.030
≤0.030
Cold rolled ultra low carbon steel strip
≤0.08

≤0.03
≤0.25
≤0.020
≤0.030



Allowable deviation of outer diameter

Outer diameter
Common precision
High precision
<4.76
±0.08
±0.05
4.76-8.00
±0.12
±0.07
>8.00-12.00
±0.16
±0.10
>12.00
±0.20
±0.12



Permissible deviation of steel tube wall thickness

Wall thickness
Permissible deviation
<0.70
±0.05
≥0.70
±0.07

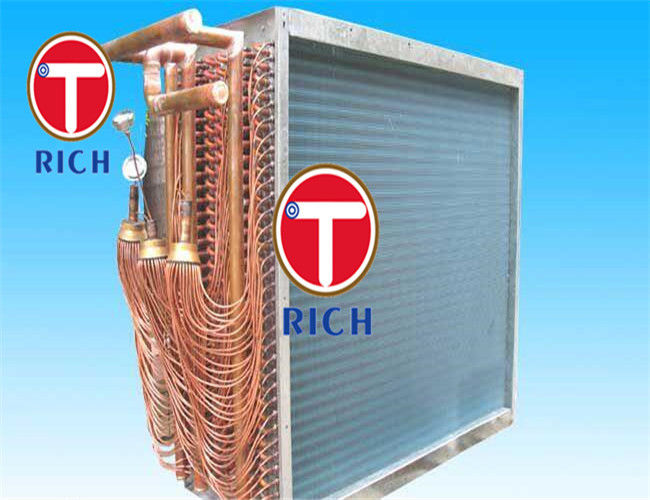

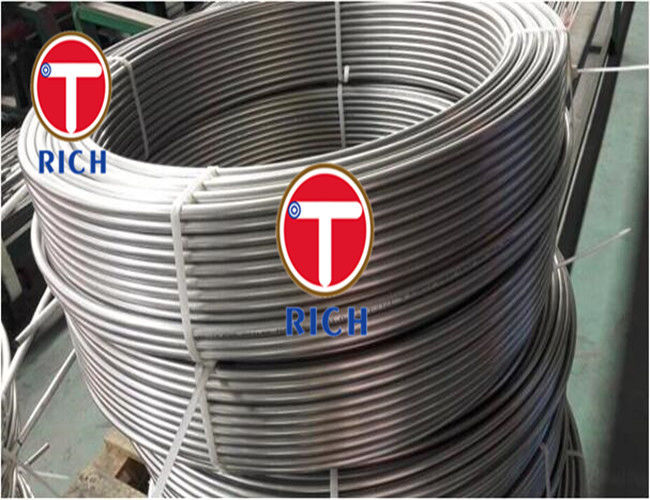

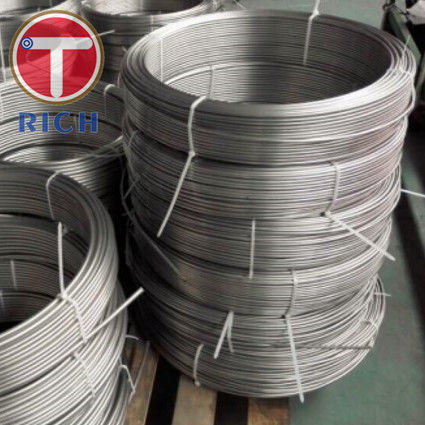

Product Show
Precision Single Welded Steel Tube GB/T24187 BHG1 For Condenser TS16949 CertificatePrecision Single Welded Steel Tube GB/T24187 BHG1 For Condenser TS16949 Certificate



QUALITY CONTROL:
1. Incoming Raw Material Inspection
2. Raw Material Segregation to avoid steel grade mix-up
3. Heating and Hammering End for Cold Drawing
4. Cold Drawing and Cold Rolling, on line inspection
5. Heat Treatment, +A, +SRA, +LC, +N, Q+T
6. Straightening-Cutting to specified length-Finished Measuring Inspection
7. Machanical Testing in own labs with Tensile Strength, Yield Strength, Elongation, Hardness, Impact, Mictrostruture etc
8. Packing and Stocking


100% of our steel tubes are dimensionally checked
100% of our steel tubes are visually checked to assure they have a perfect surface condition and no surface defects.
100% eddy current test and ultrosonic test to eliminate longitudinal and transversal defects.



PACKING:
Each tube in a plastic bag, then put tubes in a seaworthy woven bag ,each unit weight 400kg-500kg/bundle.
With strong wood structure box packing by containers loading and shipping.
Or as customer's requirement.
20 ft container - GP: 5.8m (Length) * 2.13m (Width) * 2.18m (Height) ------ Max Gross Weight: 25MT/container.
40 ft container - GP: 11.8m (Length) * 2.13m (Width) * 2.18m (Height) ------ Max Gross Weight: 27MT/container.
40 ft container - HG: 11.8m (Length) * 2.13m (Width) * 2.72m (Height) ------ Max Gross Weight: 27MT/container.
Port Shanghai



FAQ

Q: Are you trading company or manufacturer ?
A: A professional steel pipes materials inventor, manufacturer and solution provider

Q: How long is your delivery time?
A: Generally it is 7-14 days if the goods are in stock. or it is 30-60 days if the goods are not in stock, it is according to quantity.

Q: Do you provide samples of carbon seamless steel tube ? is it free or extra ?
A: Yes, we could offer the sample for free charge but need pay the cost of freight.

Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.

If you have another question, pls feel free to contact us
