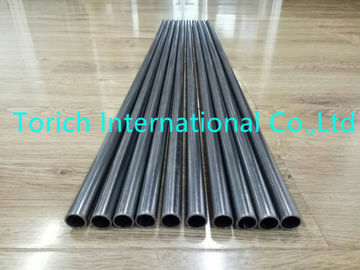

Round Shape Stainless Steel Welded Pipe For Chemical Industry 304 316 310S

Minimum Order Quantity : 1 TON Price : USD 600-800 per ton
Packaging Details : In bundles in wooden box Delivery Time : 35-45 days
Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram Supply Ability : 60000 Tons per year
Place of Origin: CHINA Brand Name: TORICH
Certification: ISO 9001 ISO 14001 TS 16949 EN 10204.3.1 LR KR Model Number: 304 316 310S

Detail Information

Product Name: Stainless Steel Welded Pipe For Chemical Industry 304 316 310S Keyword: Stainless Steel Welded Pipe
Material: 302 ,304,304L,316,316L Surface: Polish
Type: Seamless Round Steel Pipe Application: Fluid Transport
Shape: Round Shape Length: 10-12m
OD: 6-219mm WT: 2-50mm
High Light:

welded steel pipe

,

electric resistance welded steel tube

Product Description

Stainless Steel Welded Pipe for Chemical Industry 304 316 310S



Application:Chemical Industry



size:L--10-12m OD--6-219mm WT--2-50mm



steel grade:12Cr18Ni9,06Cr19Ni10 ,022Cr19Ni10,06Cr19Ni10N,06Cr19Ni9NbN,022Cr19Ni10N,06Cr23Ni13,06Cr25Ni20,06Cr17Ni12Mo2,022Cr17Ni12Mo2,07Cr17Ni12Mo2,06Cr17Ni12Mo2Ti



Manufacture method:Hot rolling (squeezing, expanding) or cold drawing (rolling)



Delivery State:Heat treatment and pickling



The Tolerance of Outer Diameter and Wall Thickness Unit:mm

Hot rolling(extrusion,expansion) steel tube Cold drawn(rolling)steel tube
Diamension Tolerance Diamension Tolerance
Ordinary Grade PA High Grade PC Ordinary Grade PA High Grade PC

Nominal Outer Diameter

D

68~159 ±1.25%D ±1%D

Nominal Outer Diameter

D

6~10 ±0.20 ±0.15
>10~30 ±0.30 ±0.20
>30~50 ±0.40 ±0.30
>50~219 ±0.85%D ±0.75%D
>159 ±1.5%D >219 ±0.9%D ±0.8%D

Nominal Wall Thickness

S

<15

+15%S

-12.5%S

±12.5%S

Nominal Wall Thickness

S

≤3 ±12%S ±10%S
≥15

+20%S

-15%S

>3

+12.5%S

-10%S

±10%S



The Tolerance of Minimum Wall Thickness Unit:mm

Manufacturing Method Diamension Tolerance
Ordinary Grade PA High Grade PC

Hot rolling(extrusion,expansion) steel tube

W-H

Smin<15

+25%Smin

0

+22.5%Smin

0

Smin≥15

+32.5%Smin

0

Cold drawn(rolling)steel tube

W-C

All Wall Tickness

+22%Smin

0

+20%Smin

0



Stainless Steel Grade Comparison

No. GB/T 20878-2007 ASTM A 959-09

JIS G4303-2005

JIS G 4311-1991

ISO/TS 15510:2003

ISO 4955:2005

EN 10088:1-2005

ΓOCT

5632-1972

Unified Digital Code Grade
1 S30210 12Cr18Ni9 S30200,302 SUS302 X10CrNi18-8 X10CrNi18-8,1.4310 12X18H9
2 S30408 06Cr19Ni10 S30400,304 SUS304 X5CrNi18-9 X5CrNi18-10,1.4301 -
3 S30403 022Cr19Ni10 S30403,304L SUS304L X2CrNi19-11 X2CrNi19-11,1.4306 03X18H11
4 S30458 06Cr19Ni10N S30451,304N SUS304N1 X5CrNiN18-8 X5CrNiN19-9,1.4315 -
5 S30478 06Cr19Ni9NbN S30452,XM-21 SUS304N2 - - -
6 S30453 022Cr19Ni10N S30453,304LN SUS304LN X2CrNiN18-9 X2CrNiN18-10,1.4311 -
7 S30908 06Cr23Ni13 S30908,309S SUS309S X12CrNi23-13 X12CrNi23-13,1.4833 -
8 S31008 06Cr25Ni20 S31008,310S SUS310S X8CrNi25-21 X8CrNi25-21,1.4845 10X23H18
9 S31608 06Cr17Ni12Mo2 S31600,316 SUS316 X5CrNiMo17-12-2 X5CrNiMo17-12-2,1.4401 -
10 S31603 022Cr17Ni12Mo2 S31603,316L SUS316L X2CrNiMo17-12-2 X2CrNiMo17-12-2,1.4404 03X17H14M3
11 S31609 07Cr17Ni12Mo2 S31609,316H - - X3CrNiMo17-13-3,1.4436 -
12 S31668 06Cr17Ni12Mo2Ti S31635,316Ti SUS316Ti X6CrNiMoTi17-12-2 X6CrNiMoTi17-12-2,1.4571

08X17H13M2T
