Erw Automotive Steel Tubes JIS-G 3445 EN 10305-3 STKM11 STKM12 Supporting Auto Seat Headrest
Contact Person : Richard SHEN
Phone Number : +86-13736164628
WhatsApp : +8613736164628
| Minimum Order Quantity : | 3 Ton | Price : | USD 1650-1750/ton |
|---|---|---|---|
| Packaging Details : | Packing in wooden, hexagonal box or other seaworthy ways | Delivery Time : | 35-40 days |
| Payment Terms : | T/T D/P D/A WesternUnion MoneyGram Others | Supply Ability : | 60000 Ton/Year |
| Place of Origin: | China | Brand Name: | TORICH |
|---|---|---|---|
| Certification: | ISO 9001-2008 ISO 14001 TS 16949 TUV | Model Number: | ASTM A519 |
|
Detail Information |
|||
| Material: | Carbon And Alloy Steel | Steel Grade: | 1020 1010 1018 1026 Etc |
|---|---|---|---|
| Size Range: | O.D.:6-350mm W.T.:1-50mm L:max12000mm | Applications: | For Machinery, Mechanical Enginering |
| Shape: | Round | Manufacture Technique: | Seamless Cold Drawn And Cold Rolling |
| Deliver Condition: | A.W.H.R. A.W.C.R. S.D.C.R. M.D. S.S.I.D. | Characteristic: | Mechanical Tubing |
| High Light: | seamless steel pipe,precision stainless steel tubing |
||
Product Description
Cold Drawn Seamless Steel Pipe ASTM A519 Carbon Pipe for Automotive Usage
1.Size range: O.D.:6-350mm W.T.:1-50mm L:max12000mm
2.Standard: ASTM A519
3.Applications: Machinery, Mechanical engineer
4.Chemical Components and Mechanical Property
| Steel Grade and Chemical Compositions: | |||||||
| Steel | C | Mn | P | S | Si | Cr | Mo |
| Grade | max | max | max | max | min | ||
| 1008 | 0.10 | 0.30-0.50 | 0.040 | 0.050 | |||
| 1010 | 0.08-0.13 | 0.30-0.60 | 0.040 | 0.050 | |||
| 1018 | 0.15-0.20 | 0.60-0.90 | 0.040 | 0.050 | |||
| 1020 | 0.18-0.23 | 0.30-0.60 | 0.040 | 0.050 | |||
| 1026 | 0.22-0.28 | 0.60-0.90 | 0.040 | 0.050 | |||
| 1035 | 0.32-0.38 | 0.60-0.90 | 0.040 | 0.050 | |||
| 1045 | 0.43-0.50 | 0.60-0.90 | 0.040 | 0.050 | |||
| 4130 | 0.28-0.33 | 0.40-0.60 | 0.040 | 0.040 | 0.15-0.35 | 0.80-1.10 | 0.15-0.25 |
| 4140 | 0.38-0.43 | 0.75-1.00 | 0.040 | 0.040 | 0.15-0.35 | 0.80-1.10 | 0.15-0.25 |
| Grade | Condition | Ultimat | Yield | Elongation | Rockwell |
| Strength | Strength | Hardness | |||
| ksi Mpa | ksi Mpa | % | B Scale | ||
| 1020 | HR | 50 345 | 32 221 | 25 | 55 |
| CW | 70 483 | 60 414 | 5 | 75 | |
| SR | 65 448 | 50 345 | 10 | 72 | |
| A | 48 331 | 28 193 | 30 | 50 | |
| N | 55 379 | 34 234 | 22 | 60 | |
| 1025 | HR | 55 379 | 35 241 | 25 | 60 |
| CW | 75 517 | 65 448 | 5 | 80 | |
| SR | 70 483 | 55 379 | 8 | 75 | |
| A | 53 365 | 30 207 | 25 | 57 | |
| N | 55 379 | 36 248 | 22 | 60 | |
| 1035 | HR | 65 448 | 40 276 | 20 | 72 |
| CW | 85 586 | 75 517 | 5 | 88 | |
| SR | 75 517 | 65 448 | 8 | 80 | |
| A | 60 414 | 33 228 | 25 | 67 | |
| N | 65 448 | 40 276 | 20 | 72 | |
| 1045 | HR | 75 517 | 45 310 | 15 | 80 |
| CW | 90 621 | 80 552 | 5 | 90 | |
| SR | 80 552 | 70 483 | 8 | 85 | |
| A | 65 448 | 35 241 | 20 | 72 | |
| N | 75 517 | 48 331 | 15 | 80 | |
| 4130 | HR | 90 621 | 70 483 | 20 | 89 |
| SR | 105 724 | 85 586 | 10 | 95 | |
| A | 75 517 | 55 379 | 30 | 81 | |
| N | 90 621 | 60 414 | 20 | 89 | |
| 4140 | HR | 120 855 | 90 310 | 15 | 100 |
| SR | 120 855 | 100 689 | 10 | 100 | |
| A | 80 552 | 60 414 | 25 | 85 | |
| N | 120 855 | 90 621 | 20 | 100 |
5.Delivery Condition:

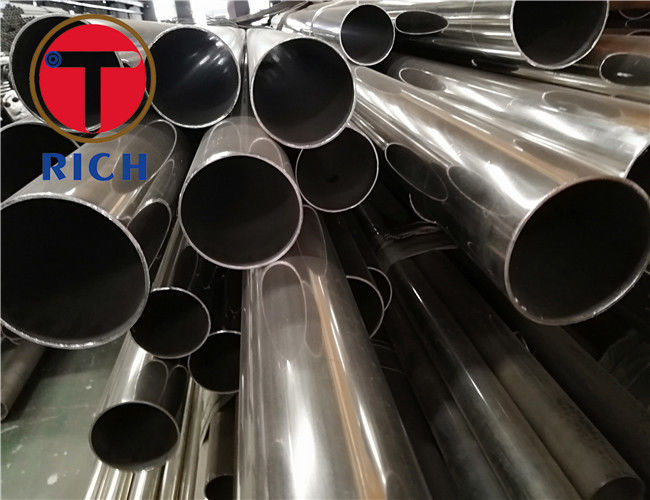

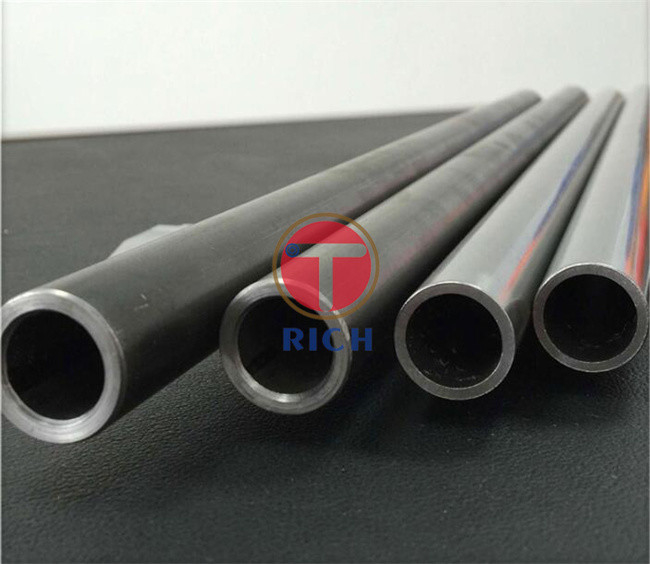

6.Steel Tube Picture from Production:
