ASTM A213 Seamless Stainless Steel Tube U Shaped Heat Exchanger
Basic Properties
Place of Origin:
CHINA
Brand Name:
TORICH
Certification:
ISO9001, TS16949
Model Number:
ASTM A213
Trading Properties
Minimum Order Quantity:
3tons
Price:
negotiable
Payment Terms:
T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability:
60000ton/year
Product Summary
ASTM A213 Seamless Stainless Heat Exchanger U Shaped Tube Size Range: OD:6-127mm, WT:0.5-12mm, Length: max12000mm Material: Grade: T12 TP304 TP304L TP316 TP316L TP317 TP317L TP321 Manufacture: Tubes shall be made by the seamless process and shall be either hot finished or cold finished. SA213 long ...
Product Details
Highlight:
stainless steel round tube
,large diameter stainless steel tube
Product Name:
U Shaped Heat Exchanger Tube
Standard:
ASTM A213, SA213
Technique:
Hot Finish，cold Finish
Section Shape:
Round
Certification:
ISO9001, TS16949
Alloy Or Not:
Ferritic Alloy
Secondary Or Not:
Non-secondary
Special Tube:
Heat-exchanger Tube
Surface:
Oiled
Hea Treatment:
Full Or Isothermal Anneal
Product Description

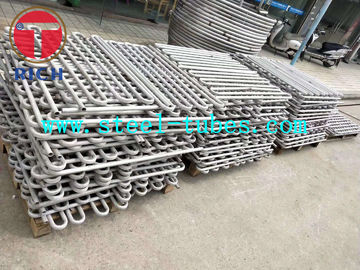

ASTM A213 Seamless Stainless Heat Exchanger U Shaped Tube
Size Range:
OD:6-127mm, WT:0.5-12mm, Length: max12000mm
Material:
Grade: T12 TP304 TP304L TP316 TP316L TP317 TP317L TP321
Manufacture:
Tubes shall be made by the seamless process and shall be either hot finished or cold finished.
SA213 long steel tubes, make to U bend tubes for boilers and heat exchangers.
Heater tubes U TUBES with Stainless, Alloy steel grade available, Carbon Steel grade is also available.
Mechanical Properties:
| Material | Mechanical Properties | ||
| Tensile Strength ≥ MPa | Yield strength ≥ MPa | Elongation ≥ % | |
| T12 | 415 | 220 | 30 |
| TP304 | 515 | 205 | 35 |
| TP304L | 458 | 170 | 35 |
| TP316 | 515 | 205 | 35 |
| TP316L | 485 | 170 | 35 |
| TP317 | 515 | 205 | 35 |
| TP317L | 515 | 205 | 35 |
| TP321 | 515 | 205 | 35 |
Packing:
With strong wood structure box packing by containers loading and shipping.
