DIN 2393 St37-2 Welded Steel Tube Precision Cold Drawn Welded Steel Pipe For Sleeve
Contact Person : Richard SHEN
Phone Number : +86-13736164628
WhatsApp : +8613736164628
| Minimum Order Quantity : | 5Tons | Price : | USD500-900/Ton |
|---|---|---|---|
| Packaging Details : | Aluminized Welded Steel Tubes are packed in wooden boxes or hexagonal bundles in seaworthy packing. | Delivery Time : | 30-45 work days |
| Payment Terms : | L/C, D/A, D/P, T/T, Western Union, MoneyGram | Supply Ability : | 2000Tons per Year |
| Place of Origin: | ZHEJIANG, CHINA | Brand Name: | TORICH |
|---|---|---|---|
| Certification: | ISO9001, ISO14001, TS16949 | Model Number: | ASTM A513 |
|
Detail Information |
|||
| Keyword: | Aluminized Welded Steel Tube | Standard: | ASTM A513 |
|---|---|---|---|
| Material: | 1010,1020,1045,SPHC,SPCC,4130 | Technique: | ERW/HFW |
| Shape: | Round | Size: | OD:5-420mm, WT:0.5-50mm |
| Length: | Max12000mm | Application: | Automotive Parts |
| High Light: | welded steel pipe,welding steel tubing |
||
Product Description
|
Standard
|
ASTM A513
|
|
Size
|
O.D.:6-350mm W.T.:1-12.5mm L:max12000mm
|
|
Material
|
1010,1020,1045,SPHC,SPCC,4130
|
|
Production
|
ERW + DOM
|
|
Application
|
For Machinery, Mechanical Engineer, Automotive Parts,Agricultural.
|
Deliver Condition:
1. A.W.H.R. "as welded" from hot-rolled steel
2. A.W.C.R. "as welded" from cold-rolled steel
3. S.D.C.R. "sink-drawn", cold-rolled steel
5. M.D. mandrel drawn
6. S.S.I.D. special smooth inside diameter
Thermal condition:
1. No final thermal treatment
2. Stress relieved
3. Annealed
4. Normalized
|
Steel Grade
|
C
|
Mn
|
P
|
S
|
Si
|
Cr
|
Mo
|
|
|
max
|
|
max
|
max
|
max
|
min
|
|
|
1008
|
0.10
|
0.5
|
0.035
|
0.035
|
|
|
|
|
1010
|
0.08-0.13
|
0.30-0.60
|
0.035
|
0.035
|
|
|
|
|
1018
|
0.14-0.20
|
0.30-0.60
|
0.035
|
0.035
|
|
|
|
|
1020
|
0.17-0.23
|
0.30-0.60
|
0.035
|
0.035
|
|
|
|
|
1026
|
0.22-0.28
|
0.60-0.90
|
0.035
|
0.035
|
|
|
|
|
1035
|
0.31-0.38
|
0.60-0.90
|
0.035
|
0.035
|
|
|
|
|
4130
|
0.28-0.33
|
0.40-0.60
|
0.035
|
0.035
|
0.15-0.35
|
0.80-1.10
|
0.08-0.25
|
|
4140
|
0.38-0.43
|
0.75-1.00
|
0.035
|
0.035
|
0.15-0.35
|
0.80-1.10
|
0.15-0.25
|

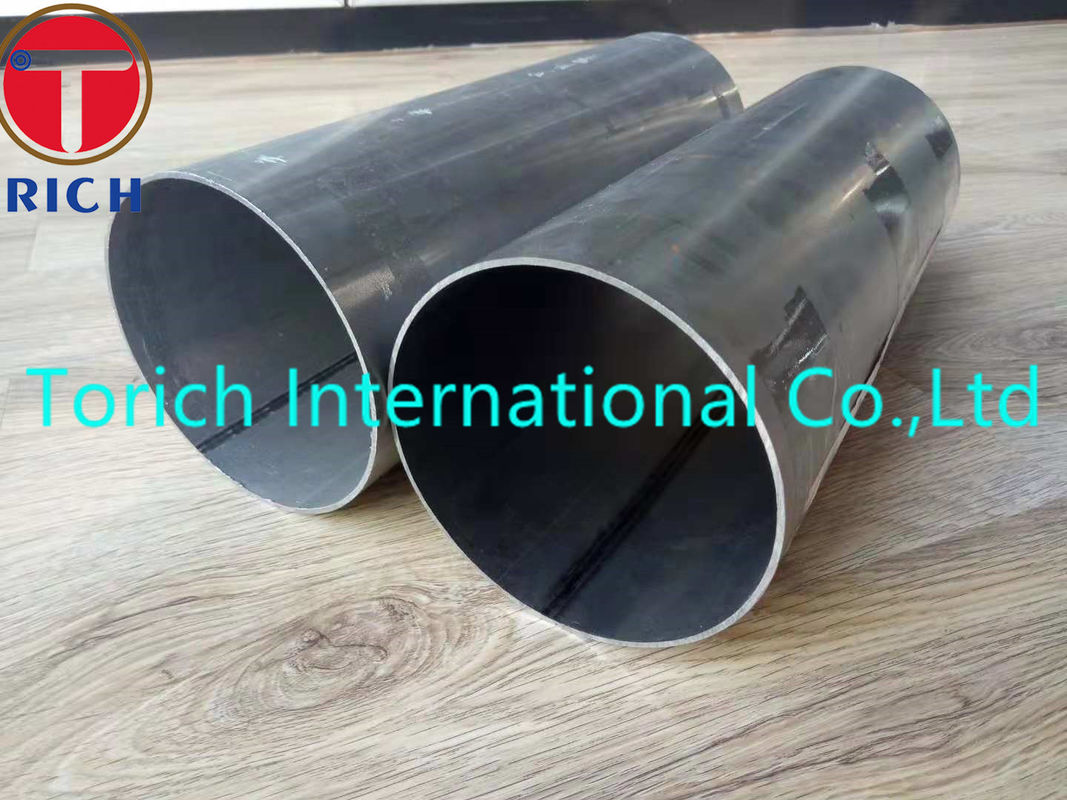

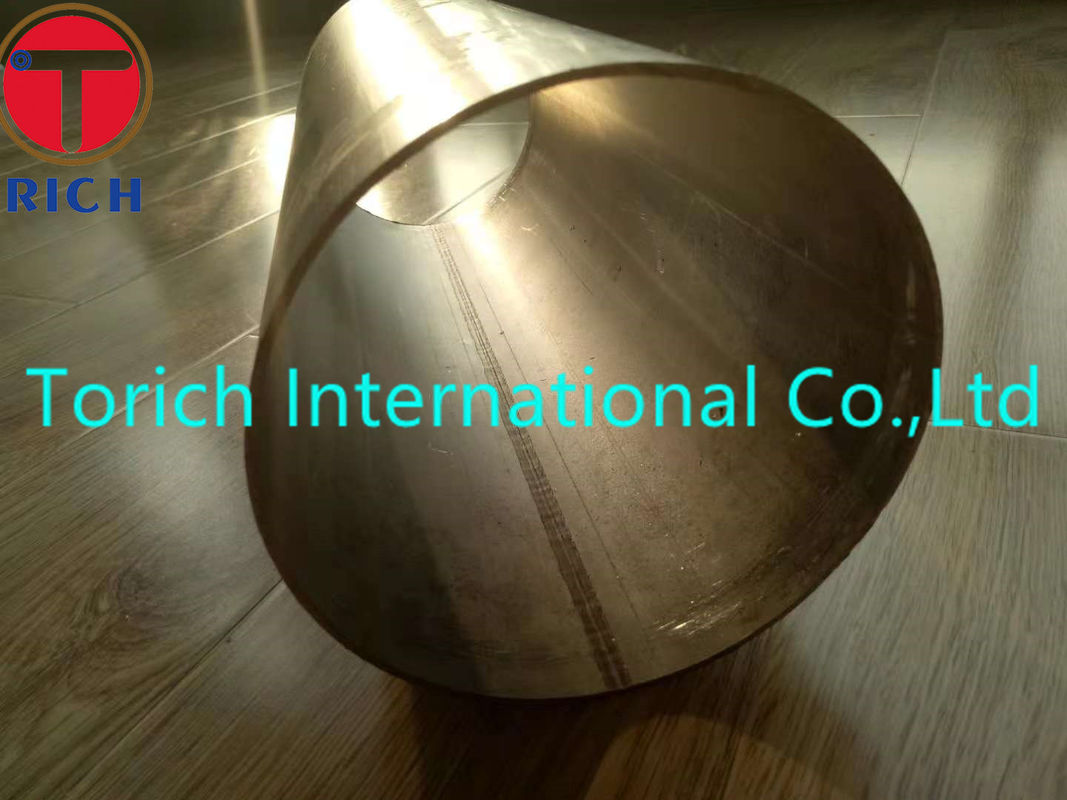

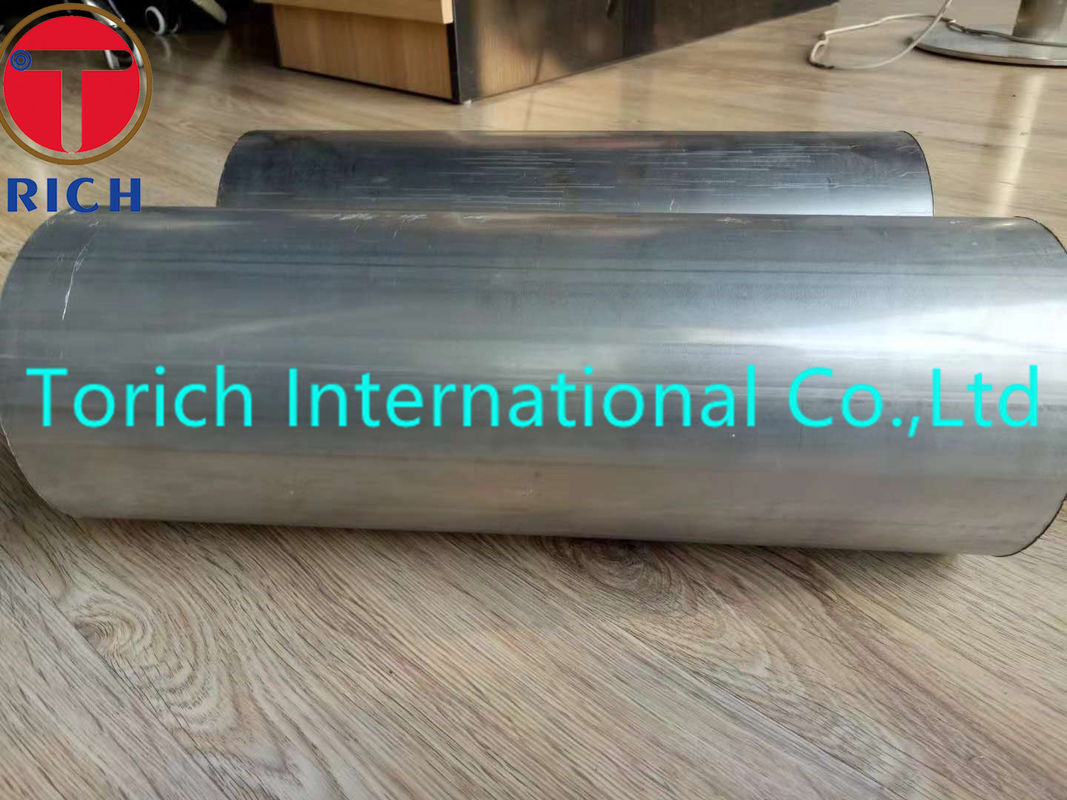

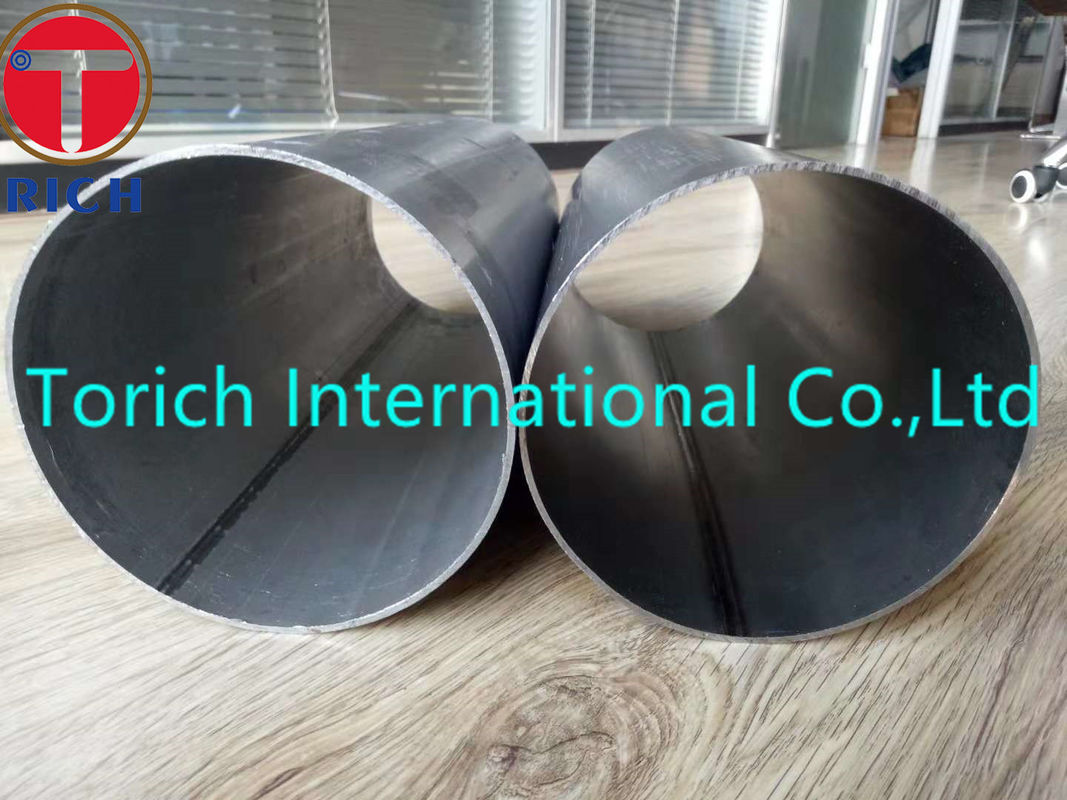

Product Show
QUALITY CONTROL:
1. Incoming Raw Material Inspection
2. Raw Material Segregation to avoid steel grade mix-up
3. Heating and Hammering End for Cold Drawing
4. Cold Drawing and Cold Rolling, on line inspection
5. Heat Treatment, +A, +SRA, +LC, +N, Q+T
6. Straightening-Cutting to specified length-Finished Measuring Inspection
7. Machanical Testing in own labs with Tensile Strength, Yield Strength, Elongation, Hardness, Impact, Mictrostruture etc
8. Packing and Stocking
100% of our steel tubes are dimensionally checked
100% of our steel tubes are visually checked to assure they have a perfect surface condition and no surface defects.
100% eddy current test and ultrosonic test to eliminate longitudinal and transversal defects.
Q: Are you trading company or manufacturer ?
A: A professional steel pipes materials inventor, manufacturer and solution provider
Q: How long is your delivery time?
A: Generally it is 7-14 days if the goods are in stock. or it is 30-60 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples of carbon seamless steel tube ? is it free or extra ?
A: Yes, we could offer the sample for free charge but need pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us
Round Aluminized Welded Carbon Steel Tube OD127mm*WT1.5mm for Automotive Parts
