Payment & Shipping Terms:
|Section Shape::||Inside Round , Outside Special Shape Seamless Steel Tubes||Application::||For Machinery, Algricultural Machineries|
|Steel Grade::||Carbon , Alloy||Product Name:||DIN 2391 16Mn 10# 20# Seamless Carbon Triangle Tube PTO Tube|

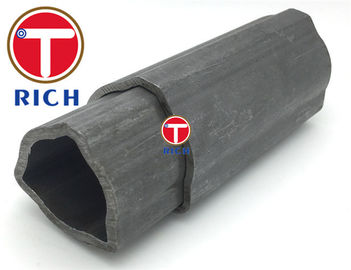

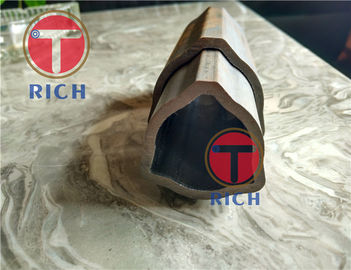

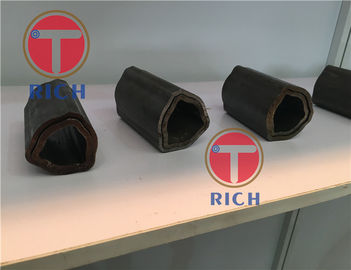

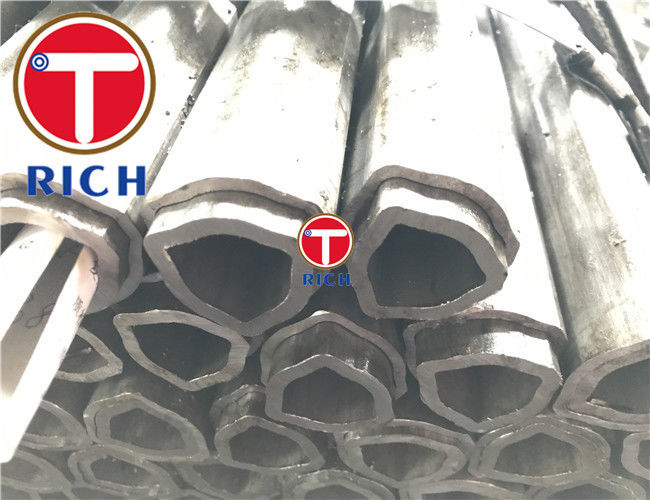

DIN 2391 16Mn 10# 20# Seamless Carbon Triangle Tube PTO Tube
|Place of Origin:|
Liaocheng, China (Mainland), Phoenix industrial park, Liaocheng city,
Shandong province, China
|Secondary Or Not:Non-secondary|
|Alloy Or Not:Non-alloy|
|Size: 53.6*3.8&44.6*5.5mm and 43.4*3.3/36.1*4.4mm etc|
|Thickness: 1 - 14 mm|
|Length:1-9m or cutting as you require|
|Tolerance: we can control it within OD/Thickness +/-0.1mm|
30% by T/T and the 70% balance should be paid against
Money Gram Etc.
|Trade terms: EXW,FOB,CIF,CNF|
|Usage: these pipes are mainly used for agricultural machine PTO shaft.|
1.Heat pipes inspection:to measure the outer diameter and the tolerance of the pipe.
|Packaging & Delivery|
|Inner packing: Plastic Bags, White or Color Individal Boxes.
Outer Packing: Wooden Boxes or Carton Boxes.
standard export bundle wrapped with strong steel strip,as per customer's requirements.
|Delivery Time:30 days after the order|
|Minimum Order Quantity: 200pcs|
Our products are widely used in:
Engineering machinery Machine tool industry Hydraulic industry Special vehicle
Automobile pipeline Heavy machinery Compressor Shipbuilding industry
Railway locomotive Diesel engine Utility boiler Injection molding machine
Power equipment Heavy duty automobile Forging and stamping machine
No Oxidation Layer on the Outer and Inner Walls
No Crack under Flaring and Flattening
No Leakage under High Pressure
No Distortion after Cold Bending
High Precision High Cleanness Excellent Brightness
1~ Incoming Raw Material Inspection
2~ Raw Material Segregation to avoid steel grade mix-up
3~ Heating and Hammering End for Cold Drawing
4~ Cold Drawing and Cold Rolling, on line inspection
5~ Heat Treatment, +A, +SRA, +LC, +N, Q+T
6~ Straightening-Cutting to specified length-Finished Measuring Inspection
7~ Machanical Testing in own labs with Tensile Strength, Yield Strength, Elongation, Hardness, Impact, Mictrostruture etc
8~ Packing and Stocking.
