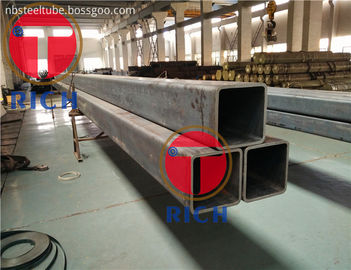

Cold Drawn Structural Steel Tubing Seamless Low Alloy Square / Rectangular Shape
Product Details
structural steel tubing
,cold formed steel tube
| Standard | ASTM A847 |
| Matrial | Alloy Steel |
| Size | OD: 6-813mm WT: 1-12.7mm Length: Customer's Requirement |
| Application | Structural construction |
| Manufacture | Tubes are made by seamless process. The tubing may be stress relieved or annealed, as is considered necessary by the tubing manufacturer, to conform to the requirements of this specification. |
| Test and Inspection | Mechanical Test, Tension Test Flattening Test, Hardness Test |
Tolerance
*Straightness--The permissible variation for straightness of structural tubing shall be 1/8 in times the number of feet (10.4mm times the number of meters) of total length divided by5.
*Squareness of sides- For square and rectangular structural tubing, adjacent sides may deviate from 90° by a tolerance of ±2° maximum.
*Radius of Corners- For square or rectangular structural tubing, the radius of any outside corner of the section shall not exceed three times the specified wall thickness.
Workmanship, Finish, and Appeaerance
All tubing shall be free from defects and shall have a workmanlike finish.
Surface imperfections shall be classed as defects when their depth the remaining wall thickness to less than90% of the specified nominal wall thickness.
| Elements | Heat Analysis | Product Analysis |
| carbon, max | 0.20 | 0.24 |
| Manganese, max | 1.35 | 1.40 |
| Phosphorus, max | 0.15 | A |
| Sulphur, max | 0.05 | 0.06 |
| Copper, min | 0.20 | 0.18 |
| Tensile Strength, min, psi (MPa) | 70000 (483) |
| Yield Strength, min, psi (MPa) | 50000 (345) |
| Elongation in 2in (50.8mm) min, % | 19 |
Permissible Variation
| Largest outside dimension across flats, in (mm) | Tolerance, ±in. (mm) |
| 2.1/2 (63.5) and under | 0.020 (0.51) |
| Over 2.1/2 to 3.1/2 (63.5 to 88.9), incl | 0.025 (0.64) |
| Over 3.1/2 to 5.1/2 (88.9 to 139.7), incl | 0.030 (0.76) |
| Over 5.1/2 (139.7) | 1% |
Production Show
QUALITY CONTROL:
1. Incoming Raw Material Inspection
2. Raw Material Segregation to avoid steel grade mix-up
3. Heating and Hammering End for Cold Drawing
4. Cold Drawing and Cold Rolling, on line inspection
5. Heat Treatment, +A, +SRA, +LC, +N, Q+T
6. Straightening-Cutting to specified length-Finished Measuring Inspection
7. Machanical Testing in own labs with Tensile Strength, Yield Strength, Elongation, Hardness, Impact, Mictrostruture etc
8. Packing and Stocking
100% of our steel tubes are dimensionally checked
100% of our steel tubes are visually checked to assure they have a perfect surface condition and no surface defects.
100% eddy current test and ultrosonic test to eliminate longitudinal and transversal defects.
Q: Are you trading company or manufacturer ?
A: A professional steel pipes materials inventor, manufacturer and solution provider
Q: How long is your delivery time?
A: Generally it is 7-14 days if the goods are in stock. or it is 30-60 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples of carbon seamless steel tube ? is it free or extra ?
A: Yes, we could offer the sample for free charge but need pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us
