Welded High Strength Low Alloy Structural Steel Pipe ASTM A847 Material
Basic Properties
Place of Origin:
China
Brand Name:
TORICH
Certification:
SO9001:2008 ，TS16949
Model Number:
ASTM A847
Trading Properties
Minimum Order Quantity:
10 ton
Price:
USD 800-1500/ ton
Payment Terms:
T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability:
6000ton
Product Summary
ASTM A847 Welded High-Strength Low Alloy Structural Pipes Size range: O.D.: 6-1626mm W.T.:1-15.88mm L: according to customer requirement Steel Grade and Chemical Compositions: Steel Grade and Chemical Compositions C≤ Mn≤ P≤ S≤ Cu≥ 0.24 1.40 A 0.06 0.80B Mechanical Properties: Tensile strength min ...
Product Details
Highlight:
cold formed steel tube
,structural steel square tubing
Product Name:
ASTM A847 Welded High-Strength Low Alloy Structural Pipes
Standard:
ASTM A847
Material:
ASTM A847
Type:
Welded
Terms Of Trade:
FOB Or CIF
Brand:
TORICH
Transportation:
Ocean, Air
Certificate:
ISO9001, TS16949
End Protector:
Plain
MTC:
En10204.3.2B
Product Description

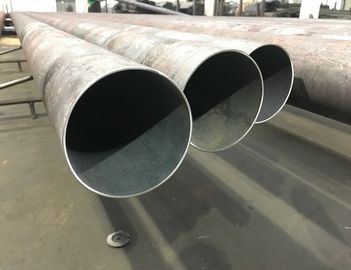

ASTM A847 Welded High-Strength Low Alloy Structural Pipes
Size range: O.D.: 6-1626mm W.T.:1-15.88mm L: according to customer requirement
Steel Grade and Chemical Compositions:
| Steel Grade and Chemical Compositions | ||||
| C≤ | Mn≤ | P≤ | S≤ | Cu≥ |
| 0.24 | 1.40 | A | 0.06 | 0.80B |
Mechanical Properties:
| Tensile strength min Mpa | 483 |
| Yield strength min Mpa | 345 |
| Elongation min % | 19A |
Manufacture:
Tubes are made by welded process.
Welded tubing shall be made from flat-rolled steel by the electric-resistance welding or electric-fusion welding process.
Workmanship, Finish, and Appeaerance:
All tubing shall be free from defects and shall have a workmanlike finish.
Surface imperfections shall be classed as defects when their depth the remaining wall thickness to less than90% of the specified nominal wall thickness.
Test and Inspection:
- Mechanical Test
- Tension Test
- Flattening Test
- - Hardness Test
