ASTM A519 1035 Seamless Carbon And Alloy Steel Mechanical Tubing For Hydraulic
Contact Person : Richard SHEN
Phone Number : +86-13736164628
WhatsApp : +8613736164628
| Minimum Order Quantity : | 5Tons | Price : | negotiable |
|---|---|---|---|
| Packaging Details : | Seamless Seel Tubes are packed in wooden boxes or hexagonal bundles in seaworthy packing. | Delivery Time : | 30-45 work days |
| Payment Terms : | L/C, D/A, D/P, T/T, Western Union, MoneyGram | Supply Ability : | 2000Tons per Year |
| Place of Origin: | ZHEJIANG, CHINA | Brand Name: | TORICH |
|---|---|---|---|
| Certification: | ISO9001, ISO14001, TS16949 | Model Number: | GB/T 18248-2000 |
|
Detail Information |
|||
| Keyword: | Seamless Steel Tube | Standard: | GB 18248-2000, JIS G3429 |
|---|---|---|---|
| Material: | 37Mn, 34Mn2V, 30CrMo, 35CrMo | Technique: | Cold Drawn/Hot Rolled |
| Type: | Seamless Steel Tube | Surface: | Customers't Requirement |
| OD: | 60 - 273 Mm | WT: | 3.5 - 9 Mm |
| Length: | 4000-12000mm | Usage: | Gas Cylinder |
| High Light: | seamless steel pipe,precision stainless steel tubing |
||
Product Description
|
Product Name
|
Cold Drawn 37Mn 34Mn2V 30CrMo 35CrMo Seamless Steel Tubes for Gas Cylinder
|
|
Brand
|
TORICH
|
|
Standard
|
GB/T18248
|
|
Grade
|
37Mn 34Mn2V 30CrMo 35CrMo
|
|
Size
|
OD: 60-273 WT:3.5-9 L:4-12m
|
|
Technic
|
Cold Drawn/Hot Rolled
|
|
Condition
|
Normalizing, Annealed/Hot Rolled
|
|
Used
|
Gas Cylinder
|
Permissible Variation of OD and WT
|
Type
|
OD
|
WT
|
|
Hot Rolled
|
±1.0
|
+15
-10
|
|
Cold Drawn
|
±0.75
|
+12.5
-10
|
Chemical Requirement
|
Grade
|
C
|
Si
|
Mn
|
P & S
|
Cr
|
Mo
|
V
|
Ni
|
Cu
|
|
37Mn
|
0.34-0.40
|
0.10-0.30
|
1.35-1.65
|
≤0.030
|
≤0.30
|
-
|
-
|
≤0.30
|
≤0.20
|
|
34Mn2V
|
0.30-0.37
|
0.17-0.37
|
1.40-1.75
|
≤0.030
|
≤0.30
|
-
|
0.07-0.12
|
≤0.30
|
≤0.20
|
|
30CrMo
|
0.26-0.34
|
0.17-0.37
|
0.40-0.70
|
≤0.030
|
0.80-1.10
|
0.15-0.25
|
-
|
≤0.30
|
≤0.20
|
|
35CrMo
|
0.32-0.40
|
0.17-0.37
|
0.40-0.70
|
≤0.030
|
0.80-1.10
|
0.15-0.25
|
-
|
≤0.30
|
≤0.20
|
Test:
Chemical Test: GB/T222,GB/T223,GB/T4336
Tension Test: GB/T228
Impact Test: GB/T229
Hydraulic Test: GB/T241
Eddy Current Test: GB/T7735
Magnetic Flux Leakage Testing: GB/T12606
Ultrasonic Test: GB/T5777
Macroscopic Examination: GB/T226, GB/T1979
Non-metallic Inclusion: GB/T10561
QUALITY CONTROL:
1. Incoming Raw Material Inspection
2. Raw Material Segregation to avoid steel grade mix-up
3. Heating and Hammering End for Cold Drawing
4. Cold Drawing and Cold Rolling, on line inspection
5. Heat Treatment, +A, +SRA, +LC, +N, Q+T
6. Straightening-Cutting to specified length-Finished Measuring Inspection
7. Machanical Testing in own labs with Tensile Strength, Yield Strength, Elongation, Hardness, Impact, Mictrostruture etc
8. Packing and Stocking
100% of our steel tubes are dimensionally checked
100% of our steel tubes are visually checked to assure they have a perfect surface condition and no surface defects.
100% eddy current test and ultrosonic test to eliminate longitudinal and transversal defects.

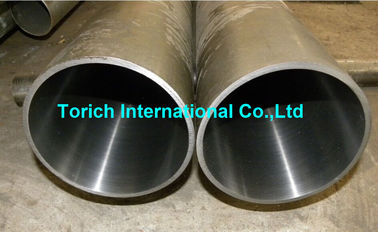

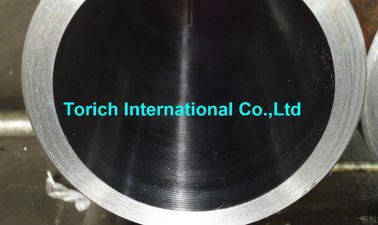

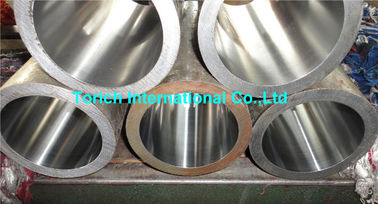

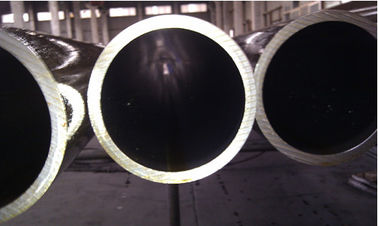

Products Show
TorichInternational Co.,Ltd is a professional manufacturer and exporter of steel pipes materials. It is an international marketing and sales company specialized in steel tubes.
Our main products:Seamless Steel Tubes with Carbon and Alloy Steel Grade, Welded Precision Steel Tubes,DOM Steel Tubes, Seamless & Welded Stainless Steel Tubes with Nickel and Alloy Steel Tube.
Our factory was established since 1997, with the name of Haiyan SanxinSteel Pipe Co., Ltd. The factories` technicians are of great engineering experience in steel pipe industry for more than 20 years, who are in great command of production technology for Cold Drawing and Cold Rolling, as well as heat treatment and inspection. So we have strong technician team and manufacturing capability.
Seamless Seel Tubes are packed in wooden boxes or hexagonal bundles in seaworthy packing.
Q: Are you trading company or manufacturer ?
A: A professional steel pipes materials inventor, manufacturer and solution provider
Q: How long is your delivery time?
A: Generally it is 7-14 days if the goods are in stock. or it is 30-60 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples of carbon seamless steel tube ? is it free or extra ?
A: Yes, we could offer the sample for free charge but need pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
